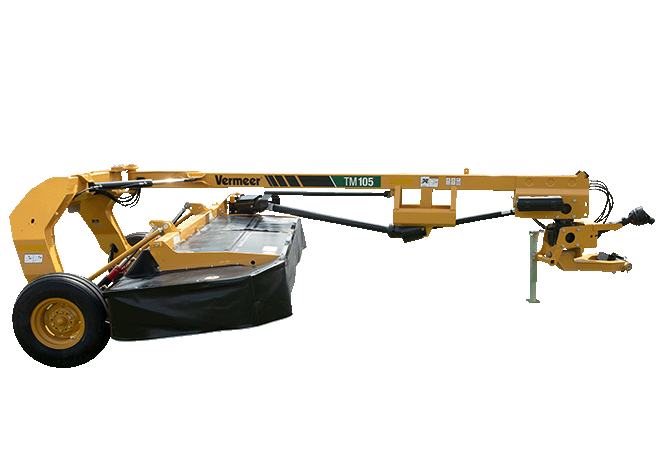

Vermeer TM105 7-Disc Trailed Mower – 10.7 ft Cutting Width, 540 RPM, Drawbar Swivel [TM1375561]

SKU TM1055110

Starting at: Starting at $48,774.⁰⁰

Starting at: Starting at $48,774.⁰⁰

Add your items to the Cart to begin to build and price your package!

When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

The Vermeer TM105 7-Disc Trailed Mower is a trailed disc mower designed for efficient hay and forage cutting, combining a 10.7 ft (3.3 m) cutting width with a 540-rpm PTO drive and a drawbar with swivel gearbox. Its seven-disc Q3® cutter bar uses 14 blades, hydraulic pitch control, Quick Clip® blade retention, and a Quick-Change™ shear ring to support productive mowing and practical serviceability. With a recommended tractor PTO power of 60 hp (44.7 kW), the TM105 is suited to operators looking for a dependable trailed mower for field cutting applications.

Key Features

10.7 ft (3.3 m) cutting width
Seven-disc Q3® cutter bar with 14 blades
540-rpm PTO drive
Drawbar with swivel gearbox
Alternative compatibility with a Category II or III N 2-point hitch with swivel gearbox
Hydraulic pitch control for angle adjustment
Quick Clip® blade retention system, standard
Quick-Change™ shear ring, standard
Standard modular independent skid shoes
Standard right swath wheel
Hydraulic suspension
Driveline friction disc clutch for torque protection
Three-year limited cutter-bar warranty, standard

Cutting Performance and Cutter Bar

The TM105 uses a seven-disc Q3® cutter bar with a 23 in (58.4 cm) disc diameter and a disc speed of 2,700 rpm. The 14-blade configuration supports the mower’s 10.7 ft (3.3 m) cutting width, while hydraulic pitch control allows adjustment of the cutter-bar angle. The specified cut-height range is 1–3 in (2.5–7.6 cm).

Maintenance-focused features include the standard Quick Clip® blade retention system and Quick-Change™ shear ring. A driveline friction disc clutch provides torque protection. Standard modular independent skid shoes are included, with topping skid shoes and wear skids available as optional features. A right crop divider, left swath wheel, and highway lights are also listed as optional equipment, while a right swath wheel is standard.

Tractor Requirements

The Vermeer TM105 is designed for use with a tractor equipped with a 540-rpm PTO and a recommended PTO power of 60 hp (44.7 kW). The standard supported hitch arrangement is a drawbar with swivel gearbox. It can alternatively be used with a 2-point hitch with swivel gearbox, Category II or III N.

Hydraulic operation requires two remote hydraulic circuits: a single-acting circuit for lift and a double-acting circuit for swing. The hydraulic system specification is 1,900 psi (131 bar) with a flow rate of 6 gpm (22.7 L/min).

Specifications

Brand	Vermeer
Model	TM105 Trailed Mower
Product type	Trailed disc mower
Cutting width	10.7 ft (3.3 m)
Working width	11.4 ft (3.5 m)
Number of discs	7
Number of blades	14
PTO drive speed	540 rpm
Recommended PTO horsepower	60 hp (44.7 kW)
Cutter-bar type	Q3®
Cut height	1–3 in (2.5–7.6 cm)
Disc diameter	23 in (58.4 cm)
Disc speed	2,700 rpm
Hitch	Drawbar with swivel gearbox
Alternative hitch compatibility	2-point hitch with swivel gearbox, Category II or III N
Transport width	10.7 ft (3.3 m)
Transport length	18.2 ft (5.5 m)
Transport height	61 in (154.9 cm)
Working length	17.2 ft (5.2 m)
Working height	61 in (154.9 cm)
Mower swung-out offset	50 in (127 cm)
Cutter-bar lift-height clearance	16 in (40.6 cm)
Total weight	3,300 lb (1,496.9 kg)
Tongue weight	1,200 lb (544.3 kg)
Suspension	Hydraulic
Tires	11L-15
Hydraulic configuration	2 remote; single-acting lift and double-acting swing
Hydraulic pressure	1,900 psi (131 bar)
Hydraulic flow rate	6 gpm (22.7 L/min)
Blade retention	Quick Clip® blade retention system, standard
Shear-ring system	Quick-Change™ shear ring, standard
Angle adjustment	Hydraulic pitch control
Torque protection	Driveline friction disc clutch
Cutter-bar warranty	3-year limited warranty, standard
