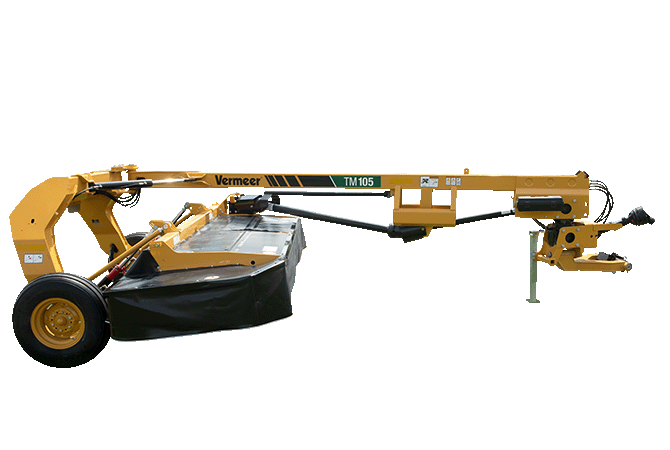

Vermeer TM105 7-Disc Trailed Mower – 10.7 ft Cutting Width, 540 RPM, 2-Point Swivel [TM1375561]

The Vermeer TM105 7-Disc Trailed Mower is a trailed disc mower designed for efficient hay and forage cutting, combining a 10.7 ft cutting width with a 540-rpm PTO drive and hydraulic suspension. Its seven-disc Q3® cutter bar, 14 blades, hydraulic swing cylinder, and selectable hitch configurations provide a practical setup for field mowing where dependable cutting performance, controlled transport, and responsive maneuverability are important. This catalogue configuration features the 2-point Quick Hitch with swivel gearbox for Category II or III N connections.

Efficient Cutting for Hay and Forage Operations

The TM105 provides a 10.7 ft / 3.3 m cutting width and an 11.4 ft / 3.5 m working width, helping cover substantial ground during mowing operations. The Q3® cutter bar uses seven 23-inch discs and 14 blades, with a specified disc speed of 2,700 rpm. Cut height can be adjusted from 1 to 3 inches, supporting control over the finished swath and cutting conditions.

A hydraulic swing cylinder, pivoting header gearbox, and hydraulic pitch control help support field operation and positioning. Nitrogen-charged hydraulic suspension is specified for the mower, while standard modular independent skid shoes help support cutter-bar operation over the terrain. A standard right swath wheel is included, with additional equipment options available for selected applications.

Key Features

• Vermeer TM105 trailed disc mower
• 7-disc Q3® cutter bar with 14 blades
• 10.7 ft / 3.3 m cutting width
• 11.4 ft / 3.5 m working width
• 540-rpm PTO drive speed
• 2-point Quick Hitch with swivel gearbox
• Category II or III N hitch compatibility
• Hydraulic swing cylinder and hydraulic pitch control
• Nitrogen-charged hydraulic suspension
• Quick-Clip® blade retention system
• Quick-Change™ shear ring
• Standard modular independent skid shoes
• Standard right swath wheel
• Adjustable 1–3 in / 2.5–7.6 cm cut height

Tractor Requirements

The Vermeer TM105 requires a tractor equipped with a 540-rpm PTO and a recommended 60 hp / 44.7 kW of PTO power. Hydraulic operation requires two remote circuits: single-acting lift and double-acting swing. The tractor hydraulic system should provide 1,900 psi / 131 bar and 6 gpm / 22.7 L/min hydraulic flow.

Hitch and Configuration

This product description specifies the 2-point swivel configuration. The manufacturer-specified hitch options include a drawbar with swivel gearbox or a 2-point connection with swivel gearbox, in Category II or III N. Confirm that the tractor’s hitch category, PTO arrangement, hydraulic remotes, pressure, and flow meet the stated requirements before operation.

Specifications

Additional Equipment Options

Optional equipment specified for the TM105 includes a right crop divider, left swath wheel, topping skid shoes, wear skids, and highway lights. Availability and configuration may vary by product specification.
