Vermeer MC150 Mower Conditioner – 15 ft Cut, Rubber Roll, 1000 RPM, Drawbar Swivel [MC1767181]

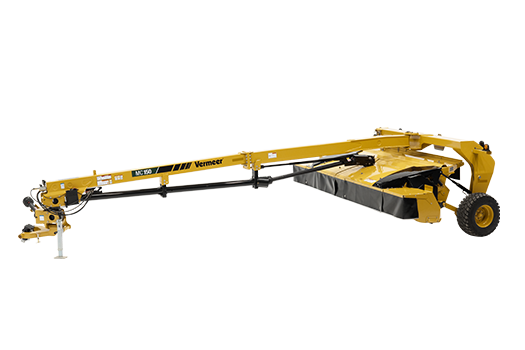

The Vermeer MC150 Mower Conditioner is a 15-ft hay and forage machine designed to mow, condition, and form windrows in a single field pass. This specified MC150 configuration combines a rubber roller conditioner, 1,000-rpm PTO drive, and drawbar with swivel gearbox hitch arrangement. Its Q3 cutter bar uses 10 discs and 20 blades, while hydraulic pitch control, a broad cut-height range, and standard tall-crop and high-cut equipment support adaptable operation across varied forage conditions. The MC150 is intended for tractors equipped with a 1,000-rpm PTO, suitable drawbar and swivel gearbox arrangement, and two double-acting hydraulic circuits.

Efficient Mowing and Conditioning

With a 15-ft cutting width and 15.3-ft working width, the Vermeer MC150 is built for productive haymaking. The Q3 cutter bar is fitted with 10 discs and 20 blades, with a disc speed of 2,700 rpm to support consistent crop cutting. Hydraulic pitch control helps adjust the machine for field conditions, while the 1–8-in cut-height range provides flexibility for different cutting requirements.

The supplied variant includes a rubber roller conditioner. The 118-in conditioner uses 9.3-in rollers rotating at 740 rpm to process cut material before it is placed into a windrow. The windrow width can be adjusted across a 62–112-in range, allowing the output to be suited to crop volume, drying conditions, and subsequent harvesting operations.

Key Features

• 15-ft cutting width for high-capacity mowing
• 15.3-ft working width
• Rubber roller conditioner variant specified
• 1,000-rpm PTO drive
• Drawbar with swivel gearbox hitch configuration
• Q3 cutter bar with 10 discs and 20 blades
• Hydraulic pitch control
• 1–8-in cut-height range
• Quick Clip blade-retention system
• Quick-Change shear ring
• 62–112-in windrow width range
• Highway lights standard
• Tall-crop platform standard
• Topping high-cut kit standard
• 3-year limited cutter-bar warranty listed as standard

Tractor Requirements

The MC150 requires a tractor with a 1,000-rpm PTO and a recommended PTO output of 105 hp (78.3 kW). This product configuration specifies a drawbar with swivel gearbox. The manufacturer’s listed hitch requirement also identifies a 2-point with swivel gearbox option, category II or III N.

Hydraulic operation requires two double-acting hydraulic circuits. The listed hydraulic requirement is 2,200 psi (151.7 bar) at 6 gpm (22.7 L/min). Confirm that the tractor meets these PTO, hitch, and hydraulic requirements before operation.

Transport and Operating Dimensions

The MC150 has a standard transport width of 15.2 ft (4.6 m), a transport height of 73 in (185.4 cm), and a transport length of 29.3 ft (8.9 m). These dimensions should be considered when planning road travel, storage, and access through gates or buildings.

Specifications
