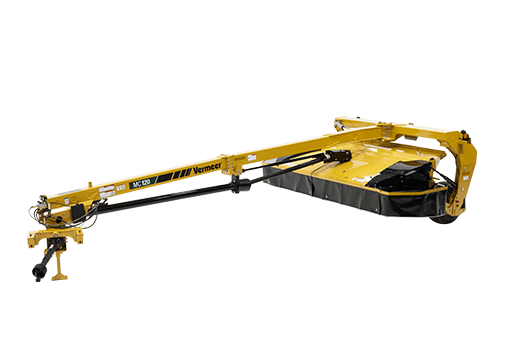

Vermeer MC120 Mower Conditioner – 12 ft Cut, Steel Roll, 1000 RPM, Drawbar Swivel [MC1666351]

Vermeer MC120 Mower Conditioner – 12 ft Cut, Steel Roll, 1000 RPM, Drawbar Swivel is a heavy-duty haymaking machine designed to mow and condition forage in a single pass. This Vermeer MC120 configuration combines a 12 ft (3.7 m) cutting width with an intermeshing steel roller conditioner, helping prepare cut material for consistent drying and subsequent handling. The machine uses a Q3 cutter bar with eight discs and 16 blades, a hydraulic suspension with nitrogen-charged accumulator, hydraulic pitch control, and a drawbar with swivel gearbox. With a recommended 90 PTO hp tractor, 1,000 rpm PTO, and two double-acting hydraulic circuits, the MC120 is suited to demanding field mowing and conditioning operations.

Efficient mowing and conditioning

The MC120 provides a 12 ft cutting width and a 14.1 ft (4.3 m) working width for productive field coverage. Its eight-disc Q3 cutter bar operates at 2,700 rpm, while the 16-blade cutting system supports effective crop processing across the full cutting width. Cut height can be adjusted from 1–8 in (2.5–20 cm), allowing the machine to be set for different crop and field conditions.

Behind the cutter bar, the specified intermeshing steel roller conditioner has a 118 in (299.7 cm) conditioner width, 9.3 in (23.6 cm) roller diameter, and 740 rpm roller speed. The windrow width is adjustable from 48–112 in (121.9–284.5 cm), providing flexibility for crop placement and drying requirements.

Key features

• 12 ft (3.7 m) cutting width for broad field coverage
• Q3 cutter bar with eight discs and 16 blades
• Specified intermeshing steel roller conditioner
• Hydraulic suspension with nitrogen-charged accumulator
• Hydraulic pitch control
• Quick-Clip blade retention system
• Quick-Change shear ring
• Drawbar with swivel gearbox
• Standard highway lights
• Standard platform for tall crops
• Standard topping high-cut kit
• Adjustable 48–112 in (121.9–284.5 cm) windrow width

Tractor requirements

The Vermeer MC120 requires a tractor equipped with a 1,000 rpm PTO and a Category II or III N tractor hitch connection for the drawbar configuration. A tractor with 90 PTO hp (67.1 kW) is recommended. The tractor hydraulic system must provide two double-acting hydraulic circuits at 1,900 psi (131 bar) and 6 gpm (22.7 L/min).

Transport and operating dimensions

Transport dimensions vary according to the position of the machine ends. Transport width is 11.6 ft (3.5 m) with the ends up and 14.1 ft (4.3 m) with the ends down. Transport height and working height are both 73 in (185.4 cm), while transport length is 27.5 ft (8.4 m). The total weight with the steel roller conditioner is 6,080 lb (2,757.8 kg), including a tongue weight of 1,520 lb (689.5 kg).

Specifications
