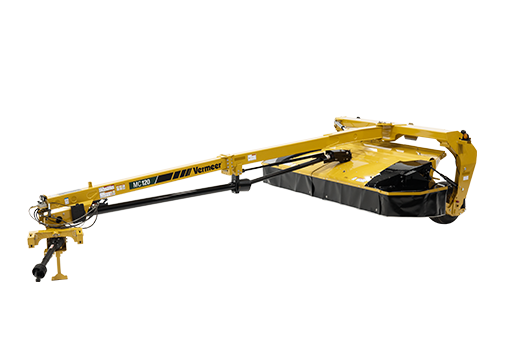

Vermeer MC120 Mower Conditioner – 12 ft Cut, Steel Roll, 1000 RPM, 2-Point Swivel [MC1666351]

Vermeer MC120 Mower Conditioner – 12 ft Cut, Steel Roll, 1000 RPM, 2-Point Swivel is designed for efficient hay cutting and conditioning with a 12-ft (3.7 m) cutting width, Q3 cutter bar, and intermeshing steel rollers. This configuration uses a 2-point swivel gearbox hitch and requires a tractor equipped with a 1,000-rpm PTO and a recommended 90 hp (67.1 kW) of PTO power. With hydraulic suspension, toolless hydraulic pitch control, a Quick-Clip blade retention system, and a wide adjustable windrow range, the MC120 is suited to producers looking for a high-capacity mower conditioner for field hay work.

Key Features

• 12-ft (3.7 m) cutting width for broad field coverage
• Intermeshing steel roller conditioner for the specified configuration
• 2-point swivel gearbox hitch for Category II or III N tractors
• 1,000-rpm PTO drive with a recommended 90 hp (67.1 kW) tractor PTO
• Q3 cutter bar with eight 23-in (58.4 cm) discs and 16 blades
• Quick-Clip blade retention system
• Quick-Change shear ring
• Hydraulic suspension with nitrogen-charged accumulator suspension system
• Toolless hydraulic pitch control
• Standard highway lights and standard topping high-cut kit
• Adjustable windrow width from 48–112 in (121.9–284.5 cm)
• 3-year limited cutter-bar coverage

Cutting and Conditioning Performance

The MC120 combines a Q3 cutter bar with eight discs rotating at 2,700 rpm. The 16-blade cutting system supports a cut-height range of 1–8 in (2.5–20 cm), allowing the machine to be configured for different crop and field conditions. Behind the cutter bar, the 118-in (299.7 cm) conditioner uses 9.3-in (23.6 cm) intermeshing steel rollers operating at 740 rpm. The roller conditioner is intended to process cut forage before it is placed into a windrow.

The windrow width can be adjusted from 48–112 in (121.9–284.5 cm). Hydraulic suspension and the nitrogen-charged accumulator suspension system help support the mower conditioner during field operation, while the toolless hydraulic pitch control provides hydraulic adjustment of the machine’s pitch without requiring tools.

Hitch, PTO and Hydraulic Requirements

This product is specified with a 2-point swivel gearbox hitch for Category II or III N applications. The compatible tractor must provide a 1,000-rpm PTO and a recommended 90 hp (67.1 kW) of PTO power. Hydraulic requirements are two double-acting hydraulic circuits operating at 1,900 psi (131 bar) with a flow rate of 6 gpm (22.7 L/min).

Transport and Operating Dimensions

For transport, the MC120 measures 73 in (185.4 cm) in height. Transport width is 11.6 ft (3.5 m) with the ends up and 14.1 ft (4.3 m) with the ends down. Transport length is 27.5 ft (8.4 m). The listed working width is 14.1 ft (4.3 m).

Specifications

Tractor Compatibility

The Vermeer MC120 in this configuration is compatible with a tractor providing a 1,000-rpm PTO, approximately 90 hp of PTO power, two double-acting hydraulic circuits meeting the stated pressure and flow requirements, and a Category II or III N 2-point hitch.
