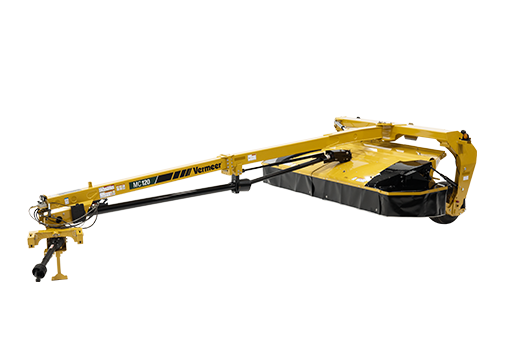

Vermeer MC120 Mower Conditioner – 12 ft Cut, Rubber Roll, 1000 RPM, Drawbar Swivel [MC1652831]

The Vermeer MC120 Mower Conditioner – 12 ft Cut, Rubber Roll, 1,000 RPM, Drawbar Swivel is built for hay and forage operations that need a clean, consistent cut and efficient crop conditioning across a wide working area. Its 12 ft (3.7 m) cutting width, Q3 cutter bar, rubber roller conditioner, hydraulic pitch control, and nitrogen-charged accumulator suspension system support productive field operation and fast dry-down. With a drawbar and swivel gearbox configuration, the MC120 is suited to tractors equipped for the required PTO, hydraulic, and hitch connections.

Efficient Cutting and Conditioning

The MC120 combines an eight-disc Q3 cutter bar with 16 blades and 23 in (58.4 cm) discs operating at 2,700 rpm. The cut-height range from 1–8 in (2.5–20 cm) provides adjustment for differing crop and field conditions. A 118 in (299.7 cm) conditioner uses 9.3 in (23.6 cm) rollers operating at 740 rpm. This product record specifies the rubber roller conditioner option, providing a dedicated configuration for hay and forage work.

Hydraulic pitch control helps adjust the machine for field conditions, while the nitrogen-charged accumulator suspension system supports cutter-bar suspension during operation. The quick-clip blade retention system and quick-change shear ring are designed to simplify service and maintenance. A four-band banded V-belt conditioner drive, standard highway lights, a platform for tall crops, and a topping high-cut kit add practical capability for daily operation and transport.

Key Features

• 12 ft (3.7 m) cutting width
• Rubber roller conditioner configuration
• Drawbar with swivel gearbox
• Q3 cutter bar with eight discs and 16 blades
• Adjustable cut height from 1–8 in (2.5–20 cm)
• 9.3 in (23.6 cm) conditioner rollers operating at 740 rpm
• 1,000 rpm PTO requirement
• Hydraulic pitch control
• Nitrogen-charged accumulator suspension system
• Quick-Clip blade retention system
• Quick-Change shear ring
• Four-band banded V-belt conditioner drive
• Windrow width adjustment from 48–112 in (121.9–284.5 cm)
• Standard highway lights, tall-crop platform, and topping high-cut kit
• 3-year limited cutter-bar warranty

Tractor Requirements

The Vermeer MC120 requires a tractor with a 1,000 rpm PTO and two double-acting hydraulic circuits. The tractor hydraulic system must be capable of 1,900 psi (131 bar) and 6 gpm (22.7 L/min). This model is specified for a drawbar with swivel gearbox. An alternative 2-point hitch with swivel gearbox, Category II or III N, is also supported.

Transport and Operating Dimensions

The mower conditioner has a working width of 14.1 ft (4.3 m). Transport width is 11.6 ft (3.5 m) with the machine ends up and 14.1 ft (4.3 m) with the ends down. Transport height is 73 in (185.4 cm), and transport length is 27.5 ft (8.4 m). The mower swung-out offset is 70 in (177.8 cm), while cutter-bar lift-height clearance is 17 in (43.2 cm).
