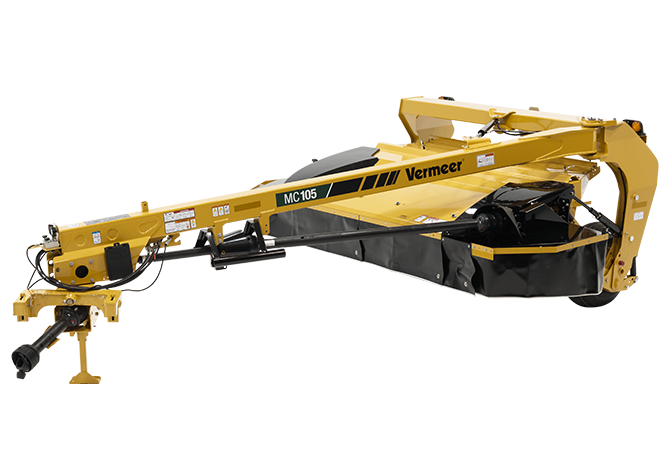

Vermeer MC105 Mower Conditioner – 10.5 ft Cut, Steel Roll, 540 RPM, Drawbar Swivel [MC1541841]

The Vermeer MC105 Mower Conditioner combines a 10.5 ft (3.2 m) cutting width with an intermeshing steel roller conditioner for efficient forage cutting and conditioning in hay and forage operations. This product configuration features a drawbar with swivel gearbox, a 540-rpm PTO drive, and a recommended tractor PTO rating of 75 hp (55.9 kW). With a Q3 cutter bar, seven discs, 14 blades, hydraulic pitch control, and a wide range of cut-height and windrow settings, the MC105 is designed for dependable field performance and flexible crop handling.

Efficient Cutting and Conditioning

The MC105 uses a Q3 cutter bar with seven 23 in (58.4 cm) discs and 14 blades. The discs operate at 2,700 rpm, while the selected intermeshing steel roller conditioner operates at 740 rpm. The 102 in (259.1 cm) conditioner width and adjustable 40–95 in (101.6–241.3 cm) windrow width provide flexibility when setting up crop flow for different field conditions and forage requirements.

Cut height is adjustable from 1–8 in (2.5–20 cm). A hydraulic pitch control system supports convenient adjustment during operation, while the nitrogen-charged accumulator suspension system is included as part of the machine’s field equipment. The standard platform for tall crops and standard topping high-cut kit add further capability for crop-management applications supported by the MC105 design.

Key Features

• 10.5 ft (3.2 m) cutting width
• Intermeshing steel roller conditioner selected for this product record
• Drawbar with swivel gearbox configuration
• 540-rpm PTO drive
• Q3 cutter bar with seven discs and 14 blades
• 1–8 in (2.5–20 cm) cut-height range
• 102 in (259.1 cm) conditioner width
• 40–95 in (101.6–241.3 cm) adjustable windrow width
• Nitrogen-charged accumulator suspension system
• Hydraulic pitch control
• Quick-Clip blade retention system, standard
• Quick-Change shear ring, standard
• Standard highway lights
• Standard platform for tall crops
• Standard topping high-cut kit

Tractor Requirements and Compatibility

The Vermeer MC105 requires a tractor equipped with a 540-rpm PTO and is recommended for tractors providing 75 hp (55.9 kW) of PTO power. The machine requires two double-acting hydraulic circuits, hydraulic pressure of 1,900 psi (131 bar), and hydraulic flow of 6 gpm (22.7 L/min).

This product record specifies the drawbar swivel gearbox configuration. The verified MC105 hitch options also include a 2-point connection with swivel gearbox using Category II or III N equipment. Confirm that the tractor’s hitch arrangement, PTO system, hydraulic circuits, pressure, flow, and available PTO power meet these requirements before operation.

Transport and Dimensions

The MC105 has a transport width of 9.8 ft (3.0 m) with the ends up and 12.8 ft (3.9 m) with the ends down. Transport height is 73 in (185.4 cm), and transport length is 20.2 ft (6.2 m). Total weight with the steel roller conditioner is 5,140 lb (2,331.5 kg), with a listed tongue weight of 1,340 lb (607.8 kg). Check route, lifting, hitch, and transport requirements before moving the machine between fields or on public roads.

Specifications
