Vermeer MC105 Mower Conditioner – 10.5 ft Cut, Rubber Roll, 540 RPM, 2-Point Swivel [MC1530561]

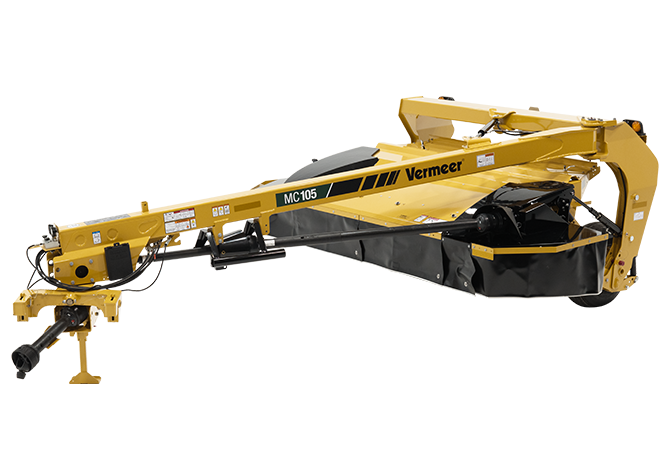

Vermeer MC105 Mower Conditioner – 10.5 ft Cut, Rubber Roll, 540 RPM, 2-Point Swivel [MC1530561] is a Vermeer mower conditioner designed for efficient hay cutting and conditioning in demanding field applications. This configuration combines a 10.5-ft (3.2-m) cutting width with a rubber-roller conditioner focused on leaf retention, helping prepare cut forage for windrowing. A 540-rpm PTO drive, 2-point swivel gearbox hitch, Q3 cutter bar, hydraulic suspension, and adjustable windrow formation provide a practical setup for hay producers seeking productive mowing and conditioning performance.

Product Features and Benefits

The MC105 is built around Vermeer’s Q3 cutter bar, which uses seven discs and 14 blades to cover a 10.5-ft cutting width. Its 2-point hitch with swivel gearbox is designed for Category II or III N connections, while the swivel arrangement supports the mower conditioner’s field operation and maneuverability.

The rubber-roller conditioner option is focused on leaf retention. The conditioner is 102 in (259.1 cm) wide and uses 9.3-in (23.6-cm) rollers operating at 740 rpm. Windrow width can be adjusted from 40 to 95 in (101.6 to 241.3 cm), allowing the output to be configured for different crop and handling requirements.

Hydraulic suspension with adjustable down pressure supports field operation, while toolless hydraulic pitch adjustment simplifies setup. The Quick-Clip blade retention system and Quick-Change shear ring are designed to support convenient cutter bar maintenance. Standard highway lights, a platform for tall crops, and a topping high-cut kit are included features of the MC105 configuration.

Key Features

• 10.5-ft (3.2-m) cutting width
• Rubber-roller conditioner option focused on leaf retention
• 540-rpm PTO drive speed
• 2-point hitch with swivel gearbox, Category II or III N
• Q3 cutter bar with seven discs and 14 blades
• Hydraulic suspension with adjustable down pressure
• Toolless hydraulic pitch adjustment
• Quick-Clip blade retention system
• Quick-Change shear ring
• Adjustable 40–95-in (101.6–241.3-cm) windrow width
• Standard highway lights
• Standard platform for tall crops
• Standard topping high-cut kit

Specifications

Tractor Requirements

The MC105 requires a tractor with a 540-rpm PTO and a recommended PTO output of 75 hp (55.9 kW). Tractor hydraulic equipment must provide two double-acting hydraulic circuits at 1,900 psi (131 bar) and 6 gpm (22.7 L/min). The hitch configuration is a 2-point swivel gearbox designed for Category II or III N connections.

Important Weight Information

The manufacturer-published total weight is 5,140 lb (2,331.5 kg) with a steel roller conditioner. A separate total weight for the rubber-roller configuration is not verified. The published tongue weight is 1,340 lb (607.8 kg).
