Vermeer M7050 7-Disc 3-Point Mower – 9.2 ft Cutting Width [M70209281]

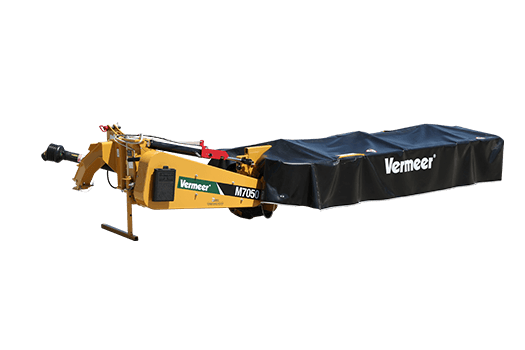

The Vermeer M7050 7-Disc 3-Point Mower is a 3-point disc mower designed for efficient hay cutting with a 9.2-ft (2.8-m) cutting width and seven discs. Its Quick Hitch hookup system supports one-person connection, while the low-profile, tapered cutter bar is designed to minimize streaking across the field. With a recommended 70-hp tractor, 540-rpm PTO, Quick-Clip® blade retention, and a V-belt driveline for torque protection, the M7050 is suited to operators who need practical field performance, straightforward blade maintenance, and a manageable transport configuration.

Efficient Hay Cutting with Easy Hookup

The Vermeer M7050 combines a seven-disc cutter bar with a 9.2-ft cutting width to cover more ground in each pass. The tapered, low-profile cutter bar is designed to minimize streaking, helping support a consistent cut across hay fields. A standard working width of 10.4 ft (3.2 m) provides the operating dimensions needed for field work, while the standard transport width of 7.8 ft (2.4 m) supports movement between fields and storage areas.

The mower connects through a Category II or III N 3-point quick hitch. Its Quick Hitch hookup system is designed for one-person connection, simplifying attachment and reducing setup effort. The M7050 requires one auxiliary remote with a single-acting hydraulic circuit. Hydraulic requirements are 1,900 psi (131 bar) and 6 gpm (22.7 L/min).

Key Features

• 9.2-ft (2.8-m) cutting width
• Seven-disc cutter bar with 14 blades
• Recommended 70-hp (52.2-kW) PTO tractor
• 540-rpm PTO speed
• Quick Hitch hookup system for one-person connection
• Tapered, low-profile cutter bar designed to minimize streaking
• Quick-Clip® blade retention system for changing and turning blades without specialty tools
• V-belt driveline for torque protection
• Standard modular independent skid shoes
• Cut-height adjustment from 1.3 to 3.9 in (3.2 to 9.9 cm)
• Standard 3-year limited cutter bar warranty

Blade Service and Cutter Bar Protection

The standard Quick-Clip® blade retention system allows blades to be changed and turned without specialty tools, helping simplify routine maintenance. The cutter bar uses 14 blades across seven discs, with each disc measuring 19.7 in (50 cm) in diameter. The discs operate at 2,850 rpm, and the V-belt driveline provides torque protection during operation.

Standard modular independent skid shoes help support the cutter bar during field work. Optional equipment includes a crop divider and swath wheel, as well as topping skid shoes and wear skids.

Specifications

Tractor Requirements and Compatibility

The Vermeer M7050 is compatible with tractors equipped with a Category II or III N 3-point quick hitch. The tractor should provide a recommended 70 hp (52.2 kW) PTO rating, a 540-rpm PTO, and one auxiliary remote with a single-acting hydraulic circuit capable of 1,900 psi (131 bar) and 6 gpm (22.7 L/min).
