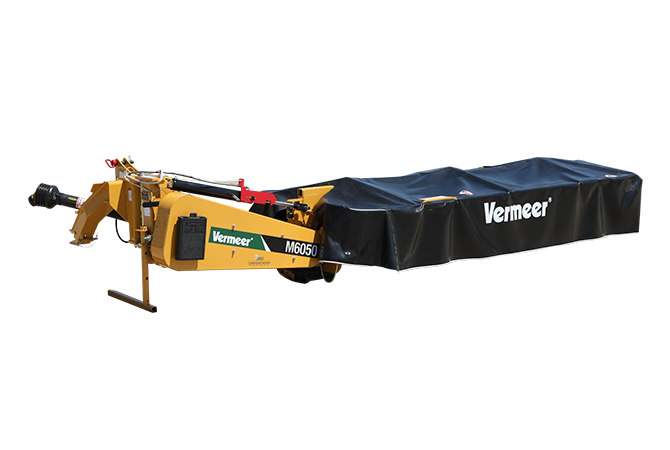

Vermeer M6050 6-Disc 3-Point Mower – 8.1 ft Cutting Width [M60190471]

Vermeer M6050 6-Disc 3-Point Mower is a six-disc, 3-point disc mower designed for efficient hay and forage cutting with tractors equipped for Category II or III N three-point mounting. Its 7.8 ft (2.4 m) cutting width and 9 ft (2.7 m) working width provide productive field coverage, while the one-person Quick Hitch hookup helps simplify attachment. The M6050 combines a tapered, low-profile cutter bar, Quick-Clip blade retention, V-belt driveline torque protection, and adjustable cutting height for dependable mowing across a range of hay-cutting applications.

Efficient Six-Disc Cutting

The M6050 uses six 19.7 in (50 cm) discs and 12 blades operating at a disc speed of 2,850 rpm. The tapered, low-profile cutter bar is designed to reduce streaking, helping produce a more consistent cut across the working area. Cutting height is adjustable from 1.3 to 3.9 in (3.3 to 9.9 cm), with angle adjustment provided through the tractor’s top link on the 3-point hitch.

For maintenance convenience, the standard Quick-Clip blade retention system is designed to make blade replacement straightforward. The cutter bar is protected by a standard V-belt driveline, providing torque protection during operation. A 3-year limited cutter bar warranty is included.

Hitching, Hydraulics and Operation

The Vermeer M6050 is built for a 3-point Quick Hitch connection and is compatible with Category II or III N tractor hitches. One-person hookup helps reduce setup effort when connecting the mower. Hydraulic operation requires one auxiliary remote with a single-acting hydraulic circuit, a hydraulic pressure of 1,700 psi (117.2 bar), and a flow rate of 6 gpm (20 L/min).

The mower requires a tractor PTO rated at 540 rpm and a recommended PTO output of 60 hp (44.7 kW). Confirm that the tractor meets the hitch, PTO, hydraulic, and power requirements before operating the mower.

Field and Transport Features

The M6050 has a 7.8 ft (2.4 m) transport width and a 6.5 ft (2 m) transport length. Optional equipment is available for adapting crop handling and ground contact to the application, including a crop divider, a crop divider and swath-wheel combination, topping skid shoes, and wear skids. The curtain uses 1,400 g/m² polyester woven material with a flexible PVC covering.

Key Features

• Six-disc, 3-point disc mower configuration
• 7.8 ft (2.4 m) cutting width and 9 ft (2.7 m) working width
• One-person 3-point Quick Hitch hookup
• Category II or III N hitch compatibility
• 540 rpm PTO drive
• Recommended tractor PTO power of 60 hp (44.7 kW)
• Tapered, low-profile cutter bar designed to reduce streaking
• Quick-Clip blade retention system
• Standard V-belt driveline torque protection
• Adjustable 1.3–3.9 in (3.3–9.9 cm) cutting height
• Optional crop divider and swath-wheel combination
• Optional topping skid shoes and wear skids
• 3-year limited cutter bar warranty

Specifications

Tractor Requirements

• Category II or III N 3-point hitch
• 540 rpm PTO
• Recommended PTO power: 60 hp (44.7–45 kW)
• One auxiliary remote with a single-acting hydraulic circuit
• Hydraulic pressure: 1,700 psi (117.2 bar)
• Hydraulic flow: 6 gpm (20 L/min)
