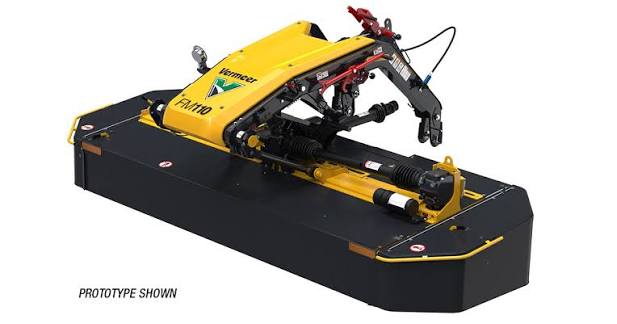

Vermeer FM110 Front Mower – 10.9 ft Cut, Flail Conditioner [FM1444681]

Vermeer FM110 Front Mower with Steel Flail Conditioner delivers a 10.9-ft (3.3-m) cutting width for efficient front-mounted mowing and conditioning. Built around a gear-bed cutter bar with eight discs and 16 blades, this FM110 configuration combines high-capacity cutting with a steel V-tine flail conditioner to process forage across a 105-in (266.7-cm) conditioner width. Hydraulic suspension helps the mower adapt to ground contours, while the front 3-point CAT II hitch and 1,000-rpm PTO configuration make it suited to compatible tractors and combination mowing applications, including use with the Vermeer CM295 for a triple-mower setup.

Efficient Cutting and Conditioning

The FM110 uses a gear-bed cutter bar with eight discs rotating at 3,000 rpm. Sixteen blades support the 10.9-ft cutting width, while the Quick Clip blade retention system is designed for convenient blade servicing. Four-brass-pin Quick-Change shear protection helps protect the cutter bar, and Hardox steel cutter-bar pods and wear skids provide durable components in areas exposed to field wear.

After cutting, the steel V-tine flail conditioner processes the crop across a 105-in width. The flail working diameter is 19 in, with selectable low and high tine speeds of 750 rpm and 1,000 rpm. Swathboards are included with the conditioner configuration, allowing a stated windrow width range of 75–106 in. Optional topping skids are also available for this configuration.

Designed for Front-Mounted Mowing

Hydraulic suspension supports ground adaptation during field operation. The mower has a front 3-point CAT II hitch and requires a 1,000-rpm PTO. The flail-conditioner configuration has a weight of 2,450 lb (1,111.3 kg) and a recommended PTO horsepower of 110 hp (81 kW). Torque protection is provided by a friction and overrunning clutch.

Key Features

• 10.9-ft (3.3-m) cutting width
• Steel V-tine flail conditioner
• Front 3-point CAT II hitch
• Gear-bed cutter bar with eight discs and 16 blades
• Quick Clip blade retention system
• Four-brass-pin Quick-Change shear protection
• Hardox steel cutter-bar pods and wear skids
• Hydraulic suspension for ground adaptation
• Swathboards with 75–106-in (190.5–269.2-cm) windrow width
• Friction and overrunning clutch torque protection
• Optional topping skids

Specifications

Tractor Requirements

The Vermeer FM110 flail-conditioner configuration requires a front 3-point CAT II hitch, a 1,000-rpm PTO, and 110 hp (81 kW) of recommended PTO horsepower. Hydraulic requirements are one single-acting hydraulic circuit with float, or one double-acting circuit with a float option, operating at 2,030 psi (140 bar).

Compatibility

The FM110 is compatible with the Vermeer CM295 combination mower for a triple-mower setup.
