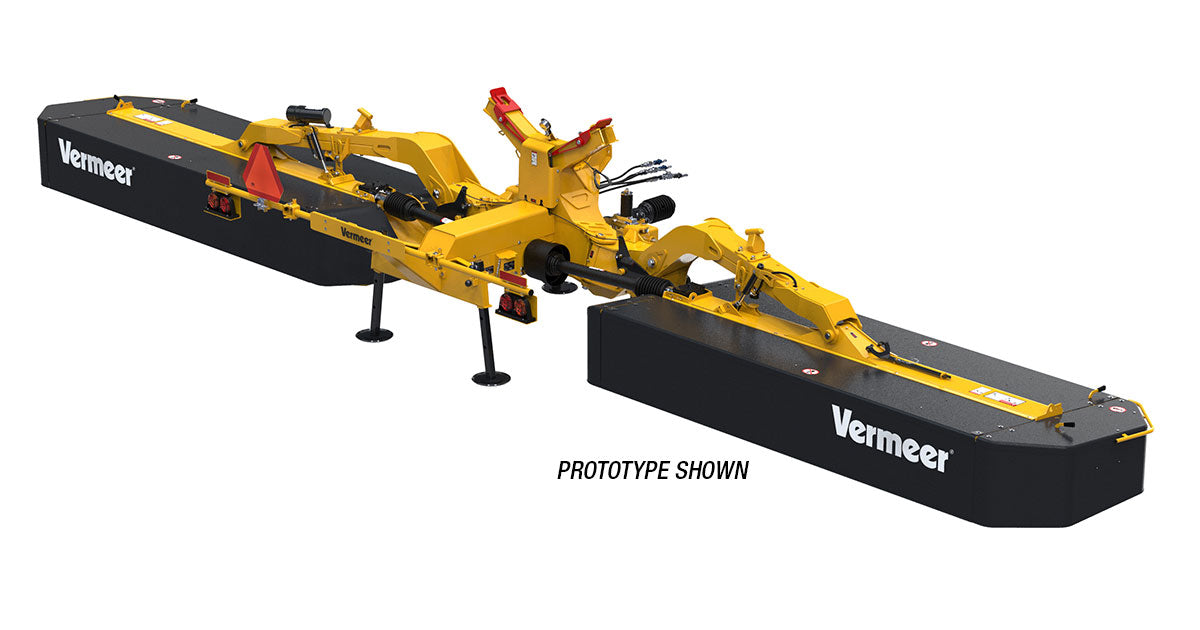

Vermeer CM295 Combination Mower – 29.3 ft Cut, No Conditioner [CM2708231]

The Vermeer CM295 Combination Mower is a high-capacity hay and forage mower designed to deliver efficient cutting across a 29.3-ft (8.9-m) cutting width. This supplied configuration, identified as CM2708231, is specified without a conditioner and uses optional swath wheels for swath formation. With a 32-ft (9.8-m) working width, gear bed cutter bar, hydraulic suspension, 16 discs, and 32 blades, the CM295 is built for productive field operation when matched with a suitable tractor equipped with a front CAT II three-point hitch and the recommended 200 hp (150 kW) PTO horsepower.

Efficient Cutting for Large-Scale Forage Work

The CM295 combines a broad working width with a robust gear bed cutter bar to cover substantial acreage efficiently. Its 16-disc cutting system operates at 3,000 rpm and uses 32 blades to support consistent crop cutting. The adjustable cut height ranges from 1.6 to 2.8 in (4 to 7 cm), allowing the mower to be configured for the required forage-cutting conditions.

Hydraulic suspension helps support the mower during operation, while friction and over-running clutch torque protection helps protect the drive system. Standard wear skids help support cutter bar protection during field use, and optional topping skids are available for additional configuration flexibility.

Key Features

• 29.3-ft (8.9-m) cutting width for high-capacity mowing
• 32-ft (9.8-m) working width
• Combination mower configuration without conditioner
• Gear bed cutter bar with 16 discs and 32 blades
• 3,000-rpm disc speed
• Adjustable cut height from 1.6 to 2.8 in (4 to 7 cm)
• Hydraulic suspension
• Friction and over-running clutch torque protection
• Quick Clip blade retention system for quick blade changes
• Quick-Change shear ring with four brass pins for shear protection
• Optional swath wheels for the no-conditioner configuration
• Standard wear skids with optional topping skids
• Standard highway lights
• 3-year limited cutter bar warranty, standard

No-Conditioner Configuration

This CM295 configuration is identified for use without a conditioner. Optional swath wheels are available for swath formation, providing a configuration suited to operations that require cut forage to be arranged into a swath without a conditioning system. The mower is supplied with standard wear skids, while topping skids are available as an option.

Tractor Requirements

The Vermeer CM295 requires a tractor with a front 3-point, CAT II hitch. A minimum or maximum PTO horsepower specification is not provided; the recommended PTO horsepower is 200 hp (150 kW) when used with a front mower. The tractor must also provide the required hydraulic connections and pressure for the mower’s operating systems.

• Front hitch: CAT II three-point
• Recommended PTO horsepower: 200 hp (150 kW) when used with a front mower
• PTO speed: 1,000 rpm
• Hydraulic circuits: 2 double-acting circuits with float option and 1 single-acting circuit
• Hydraulic pressure: 2,030 psi (140 bar)

Specifications
