Vermeer CM295 Combination Mower – 29.3 ft Cut, Flail Conditioner [CM2965071]

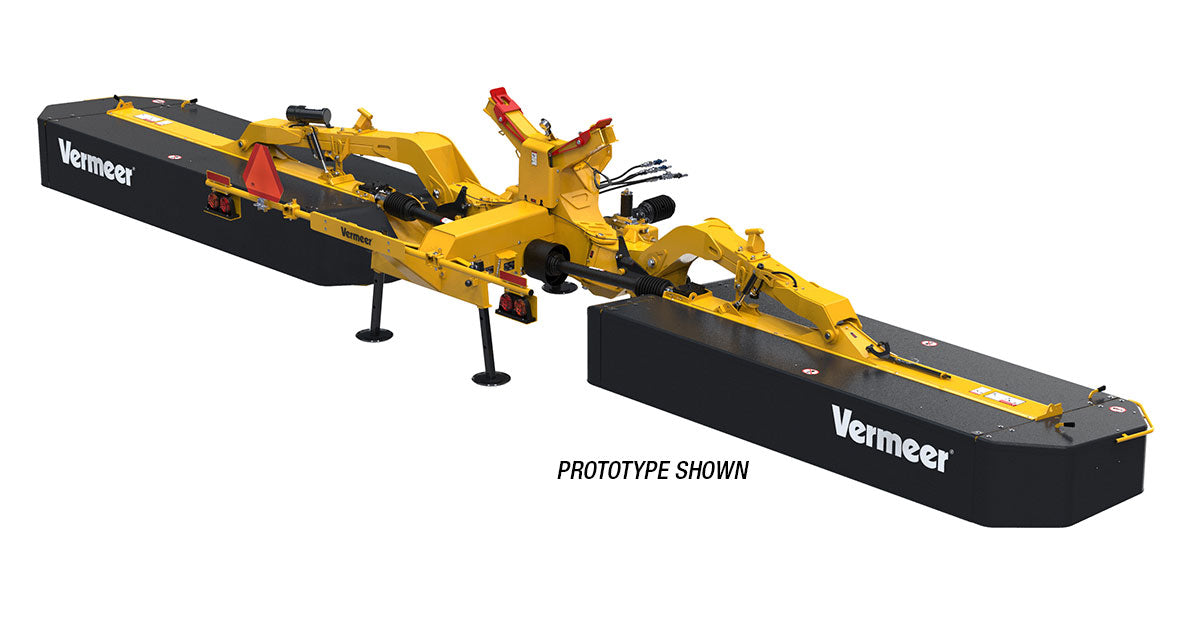

The Vermeer CM295 Combination Mower with Steel Flail Conditioner delivers a 29.3-ft (8.9 m) cutting width and 32-ft (9.7 m) working width for high-capacity hay and forage mowing. Designed for rear three-point tractor mounting, the CM295 combines a gear bed cutter bar with two steel V-tine flail conditioners to cut and condition in one pass. Hydraulic suspension on each side helps the mower follow changing terrain, while the breakaway system helps protect the cutter bar when encountering obstacles. With reversible blades, abrasion-resistant components, hydraulic sequential lifting, and standard highway lights, the CM295 is suited to demanding field operations and can be used with the Vermeer FM110 front mower in a triple-mower configuration.

Efficient Cutting and Conditioning

The CM295 uses a 16-disc gear bed cutter bar with 32 blades and a disc speed of 3,000 rpm. The cutting height is adjustable from 1.6 to 2.8 in (4 to 7 cm), supporting different forage and field conditions. Two 105-in (2.7 m) steel V-tine flail conditioners process the cut crop across the mower’s working width. Each conditioner has a 19-in (49 cm) diameter and is driven by three V-belts.

Conditioner speed is standard at 1,000 rpm, with an optional 750-rpm setting. Swath shields or fins provide swath formation, with windrow widths adjustable from a minimum of 75 in (1.9 m) to a maximum of 106 in (2.7 m) for each conditioner.

Key Features

• 29.3-ft (8.9 m) cutting width and 32-ft (9.7 m) working width
• Steel V-tine flail conditioner with two 105-in (2.7 m) conditioners
• Rear three-point mounting for CAT III or CAT 4N hitches
• Hydraulic suspension on each side for terrain following
• Breakaway system for cutter-bar obstacle protection
• Gear bed cutter bar with 16 discs and 32 blades
• Quick-change reversible blades
• Hardox abrasion-resistant cutter-bar pods
• Abrasion-resistant wear skids included as standard
• Optional topping skids for high-cut operation
• Hydraulic sequential lifting system for headland turns
• Friction and over-running clutch for torque protection
• Standard highway lights

Tractor Requirements and Compatibility

The Vermeer CM295 requires a tractor with a rear CAT III or CAT 4N three-point hitch and a 1,000-rpm PTO. The recommended tractor power is 230 hp (169 kW) when the CM295 is used with the Vermeer FM110 front mower. Hydraulic requirements are two double-acting remotes with float option and one single-acting remote, operating at 2,030 psi (140 bar).

The CM295 is designed to be used with the Vermeer FM110 front mower for a triple-mower configuration. When prepared for transport, the standard transport width is 10 ft (3 m).

Specifications
