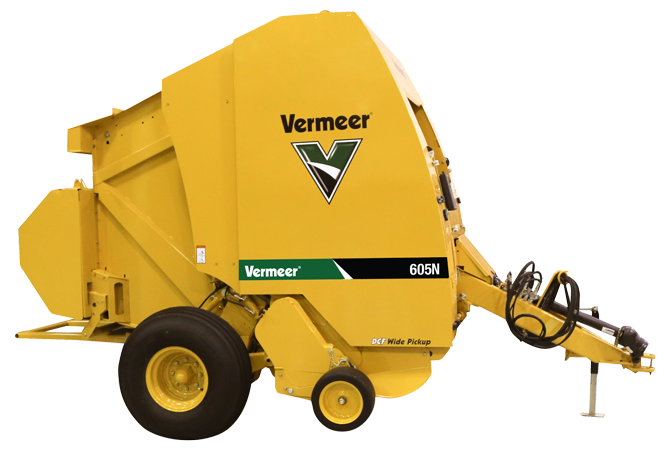

Vermeer 605N Round Baler – 5' x 6', 540 RPM, Twine, Netwrap, Ramp, Floats, Pickup Clutch, Slope Sense [605869711]

Vermeer 605N Round Baler – 5' x 6', 540 RPM, Twine, Netwrap, Ramp, Floats, Pickup Clutch [605869711] is a variable-chamber round hay baler designed for producing consistent bales across a broad range of crop conditions. This Vermeer 605N configuration combines a 61-inch bale width with an adjustable 36- to 72-inch bale diameter range, allowing operators to produce bales up to the commonly specified 5-by-6-foot size. A 540-rpm PTO configuration, optional twine and netwrap systems, hydraulic bale ramp, flotation tires, pickup torque protection, hydraulic pickup lift, adjustable hydraulic density control, moisture sensing, and the E-Link Pro display support efficient baling and bale handling in demanding hay operations.

Key Features

• Variable, open-throat vertical bale chamber for adjustable bale diameters from 36 to 72 inches.
• 61-inch bale width for producing large round hay bales.
• 540-rpm standard-lube friction-clutch PTO configuration.
• Twine tie system and netwrap system included in the supplied configuration description.
• Hydraulic bale ramp for supported bale discharge and handling.
• 21.5L-16.1 flotation tires for reduced ground pressure compared with standard tire equipment.
• Pickup clutch with torque protection using a radial-pin clutch or friction clutch with slip-sensing.
• Eight premium mini-rough-top belts, each 6.8 inches wide.
• Hydraulic pickup lift with a 77-inch tooth-to-tooth pickup width.
• Adjustable hydraulic density system for managing bale formation.
• Moisture sensing and E-Link Pro display for operational monitoring.
• Maximum bale weight of up to 2,400 pounds, depending on operating conditions and bale configuration.

Designed for Flexible Bale Production

The 605N uses a variable bale chamber to provide an adjustable bale diameter from 36 to 72 inches. Its 61-inch bale width supports the production of full-size round bales while allowing operators to select a bale size suited to crop conditions, storage plans, and handling requirements. The open-throat vertical chamber and eight-belt design are configured for consistent crop movement and bale formation.

Pickup and Crop Handling

The pickup measures 77 inches from tooth to tooth and 90 inches across the outside flair. Hydraulic pickup lift assists with positioning the pickup during field operation and transport. Pickup torque protection is available through a radial-pin clutch or a friction clutch with slip-sensing, helping protect the pickup system when operating conditions create increased resistance. The supplied configuration includes a pickup clutch.

Moisture sensing provides information during baling to help operators monitor crop conditions. The adjustable hydraulic density system supports control over bale formation as conditions change across the field.

Tie, Discharge, and Traction Equipment

The supplied product configuration identifies both twine and netwrap capability, providing two bale-wrapping options for securing finished bales. A hydraulic bale ramp supports bale discharge after tying. Flotation equipment is provided through 21.5L-16.1 flotation tires, while the standard tire specification is 14L-16.1. Pickup gauge wheels are 7.10-16 HD semi-pneumatic with spring assist.

Tractor Requirements

The Vermeer 605N requires a tractor with at least 80 hp (60 kW) at the PTO. Vermeer lists 100 hp (75 kW) as the recommended PTO horsepower. This configuration uses a 540-rpm PTO arrangement. Confirm that the towing tractor, PTO system, and hydraulic equipment are suitable for the complete baler configuration before operation.

Specifications
