Vermeer 605N Round Baler – 5' x 6', 540 RPM, Twine, Netwrap, Ramp, Floats [605843901]

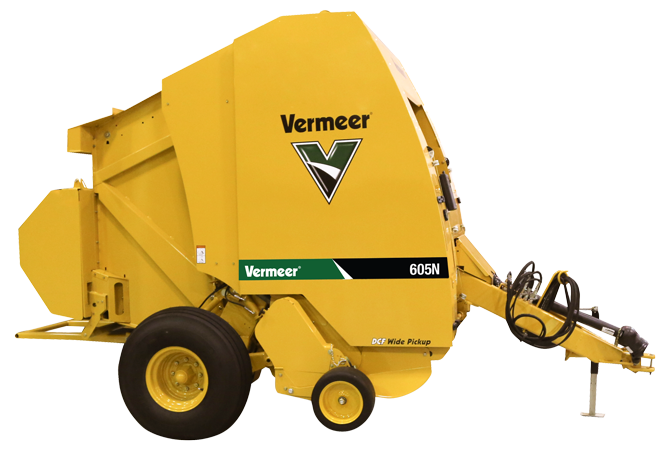

The Vermeer 605N Round Baler is a high-capacity variable-chamber hay baler configured for 5' x 6' bales, 540-rpm PTO operation, twine, netwrap, a hydraulic bale ramp, and flotation tires. Built with durable, heavy-duty components, the 605N combines a dual-stage bale chamber, eight premium mini rough-top belts, hydraulic pickup lift, and an E-Link Pro 7-inch color touchscreen display to support efficient baling across a range of field conditions. Its 36–72-inch variable bale diameter, 61-inch bale width, standard ISOBUS capability, moisture sensing, and bale-shape indicators make it suitable for producers seeking flexible bale sizing and controlled hay production.

Key Features

• Variable bale diameter from 36–72 inches (91.4–182.9 cm)
• 61-inch (154.9 cm) bale width
• Dual-stage bale chamber for high-capacity baling
• 540-rpm driveline configuration
• Configured with twine and netwrap systems
• Hydraulic bale ramp for bale handling after ejection
• Optional 21.5L-16.1 flotation tires included in this configured listing
• Cammed wide pickup with 77-inch tooth-to-tooth width and 90-inch outside-flare width
• Eight premium mini rough-top belts
• E-Link Pro 7-inch color touchscreen display
• Standard ISOBUS capability
• Standard moisture sensing up to 27%
• Standard bale-shape indicators
• Hydraulic pickup lift
• Standard grease bank and standard right-hand door

Designed for Flexible Hay Production

The 605N’s variable bale chamber allows bale diameters from 36 to 72 inches, giving operators flexibility for different crop conditions, handling preferences, and storage requirements. The 61-inch bale width and wide cammed pickup help gather windrows efficiently, with a 77-inch pickup width measured tooth-to-tooth and a 90-inch width across the outside flare.

The dual-stage bale chamber and premium mini rough-top belts are designed to support consistent bale formation. Standard bale-shape indicators help the operator monitor bale development, while moisture sensing up to 27% provides additional information during baling. The E-Link Pro display places operating information and baler controls in a 7-inch color touchscreen interface, and standard ISOBUS capability supports compatible tractor and implement control systems.

Twine, Netwrap, Ramp and Flotation-Tire Configuration

This product listing identifies the unit with twine, netwrap, a hydraulic bale ramp, and flotation tires. Twine and netwrap provide two available bale-wrapping methods, while the hydraulic ramp assists with bale discharge. The optional 21.5L-16.1 flotation tires provide a wider transport width than the standard tire configuration.

Tractor Requirements

The Vermeer 605N requires a tractor with a minimum PTO rating of 80 hp (59.7 kW). A tractor with 100 hp (74.6 kW) of PTO power is recommended. This configuration uses the 540-rpm driveline option. Hydraulic pickup lift and the hydraulic bale ramp are specified; hydraulic flow and pressure requirements were not published in the manufacturer specifications provided.

Specifications
