Vermeer 605N Round Baler – 5' x 6', 540 RPM, Netwrap, Ramp, Floats, Pickup Clutch, Slope Sense [605848661]

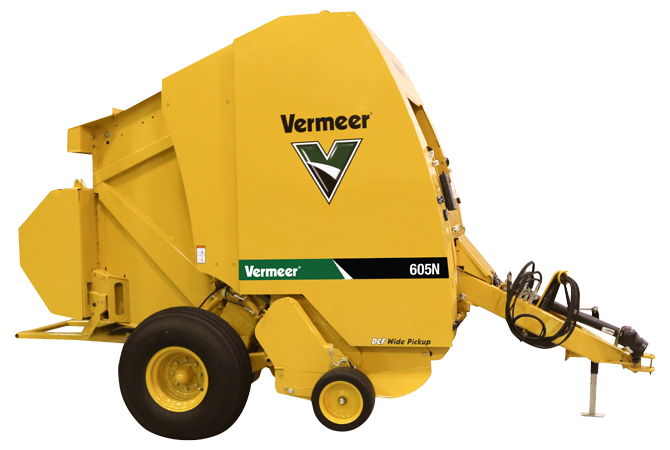

The Vermeer 605N Round Baler is a variable-chamber round hay baler designed for high-capacity baling in a 5 ft × 6 ft-class format. This configured machine combines a 540-rpm driveline with netwrap, a hydraulic bale ramp, flotation tires, pickup clutch protection and Slope Sense equipment as identified in the catalogue configuration. With a dual-stage bale chamber, eight premium mini rough-top belts, a wide cammed pickup and E-Link Pro control system, the 605N is built to produce bales from 36 to 72 inches in diameter while supporting efficient field operation across hay and forage applications.

Key Features

• Variable-chamber round baler for 36–72-inch (91.4–182.9-cm) bale diameters
• 61-inch (154.9-cm) bale width for 5 ft × 6 ft-class bales
• 540-rpm driveline with standard lubrication and friction clutch
• Dual-stage bale chamber with eight premium mini rough-top belts
• E-Link Pro control system with 7-inch (17.8-cm) colour touchscreen
• Optional netwrap system included in this configured product listing
• Optional hydraulic bale ramp included in this configured product listing
• Optional pickup clutch for torque protection
• Optional 21.5L-16.1 flotation tires included in this configured product listing
• Cammed wide pickup with rubber-mounted pickup teeth
• Hydraulic pickup lift
• Standard moisture monitoring up to 27%
• Standard ISOBUS capability

Designed for High-Capacity Baling

The 605N uses a dual-stage bale chamber to support consistent bale formation throughout the variable-chamber range. Its eight premium mini rough-top belts are designed as part of the heavy-duty bale-forming system, while the 61-inch bale width accommodates large, dense round bales suitable for hay and forage handling operations.

The cammed wide pickup provides a 77-inch tooth-to-tooth working width and a 90-inch outside flare. Rubber-mounted pickup teeth and hydraulic pickup lift are included among the machine features, helping configure the baler for practical crop pickup and field operation. The configured pickup clutch provides an additional layer of driveline protection; Vermeer describes the available torque-protection arrangement as a radial-pin clutch or friction clutch with slip-sensing.

Operator Controls and Bale Handling

The Vermeer E-Link Pro control system uses a 7-inch colour touchscreen for baler operation. Standard moisture monitoring is rated up to 27%, and ISOBUS capability is standard. The listed configuration includes a netwrap system and hydraulic bale ramp, supporting bale wrapping and unloading workflows from the tractor seat.

Specifications

Tractor Requirements

The Vermeer 605N requires a 540-rpm PTO driveline. The verified manufacturer data lists 80 hp as the minimum PTO horsepower and recommends 100 hp (74.6 kW). Confirm that the tractor and implement combination can accommodate the baler’s fully optioned weight of 8,600 lb (3,900.9 kg), transport width and operating dimensions before use.
