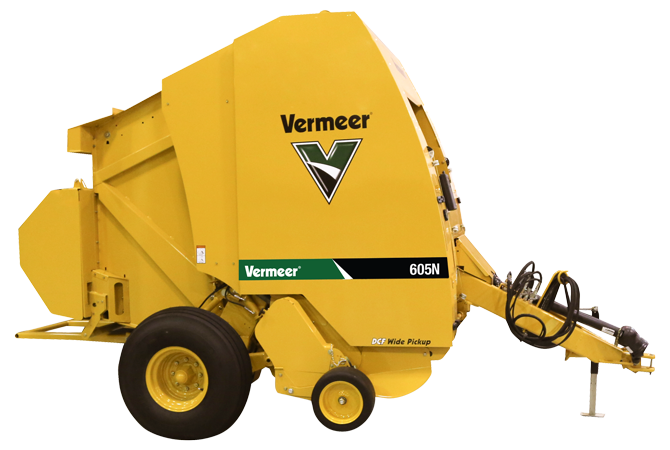

Vermeer 605N Round Baler – 5' x 6', 1000 RPM, Twine, Ramp, Floats [605752871]

The Vermeer 605N Round Baler is a variable-chamber hay baler designed for high-capacity baling in the 5-ft x 6-ft bale class. This configured unit features a 1,000-rpm driveline, twine system, hydraulic bale ramp, and flotation tires, combining dependable bale formation with practical handling and transport features. The 605N produces bales from 36 to 72 inches in diameter and 61 inches wide, making it suitable for operators who need flexibility in bale size for hay production, storage, and feeding operations.

High-Capacity Variable-Chamber Baling

Built around Vermeer’s 605N baler platform, this machine uses a dual-stage bale chamber and eight belts to form consistent round bales across a broad diameter range. The cammed wide pickup measures 77 inches tooth-to-tooth and uses hydraulic lift to collect windrows efficiently. Bale shape indicators support monitoring during formation, while the E-Link Pro control system with a 7-inch color touchscreen provides an operator interface for baler functions and information.

The baler is configured with a 1,000-rpm driveline and cut-out clutch option. Its optional twine tie system provides a practical bale-tie configuration, while the hydraulic bale ramp helps discharge completed bales. Optional 21.5L-16.1 flotation tires are included in the listed configuration, providing the specified 129-inch transport width associated with that tire option.

Key Features

• Variable-chamber round hay baler for the Vermeer 605N platform
• 5-ft x 6-ft bale class with a 36–72-inch adjustable bale diameter
• 61-inch bale width
• 1,000-rpm driveline with cut-out clutch option
• Optional twine tie system
• Optional hydraulic bale ramp
• Optional 21.5L-16.1 flotation tires
• Dual-stage bale chamber with eight belts
• 77-inch cammed wide pickup, measured tooth-to-tooth
• Hydraulic pickup lift
• E-Link Pro control system with 7-inch color touchscreen
• Standard ISOBUS capability
• Bale shape indicators
• Moisture monitoring up to 27%
• Optional Auto Lube greasing system and automatic chain lubrication

Bale Formation and Operator Controls

The 605N’s adjustable chamber supports bale diameters from 36 to 72 inches, allowing operators to select bale sizes suited to their handling and storage requirements. The 61-inch bale width and maximum bale weight of 2,400 pounds provide substantial capacity for demanding hay-baling applications. The wide pickup and hydraulic lift support windrow collection, while bale shape indicators help the operator monitor bale development.

Moisture monitoring is available up to 27%, and the E-Link Pro display provides a 7-inch color touchscreen interface. Standard ISOBUS capability supports integration with compatible tractor systems and equipment controls.

Specifications

Tractor Requirements

The Vermeer 605N requires a tractor with a minimum PTO rating of 80 hp (59.7 kW). A tractor rated at 100 hp (74.6 kW) is recommended. The machine uses a 1,000-rpm PTO configuration. Hydraulic pickup lift is standard, and the bale ramp is hydraulic when equipped; no hydraulic flow or pressure requirement is specified.
