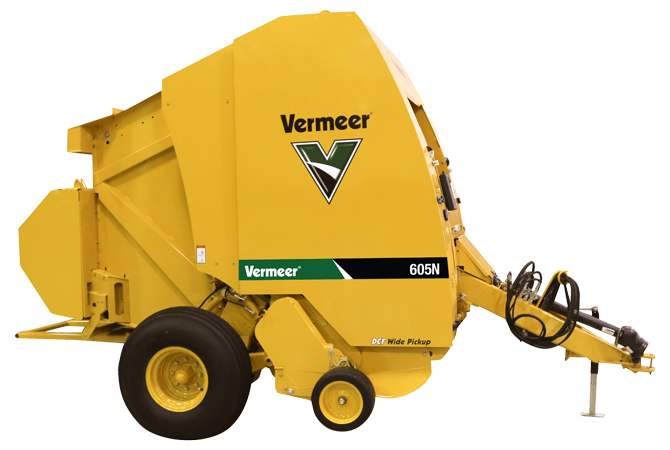

Vermeer 605N Round Baler – 5' x 6', 1000 RPM, Twine, Netwrap, Ramp, Floats, Pickup Clutch, Slope Sense [605869711]

Vermeer 605N Round Baler – 5' x 6', 1,000 RPM, Twine, Netwrap, Ramp, Floats and Pickup Clutch is a variable-chamber round hay baler designed for high-capacity baling with durable, heavy-duty components. Its 5-ft x 6-ft designation corresponds to a 61-inch bale width and an adjustable bale diameter from 36 to 72 inches, allowing bale size to be matched to crop conditions, handling requirements and storage plans. The 605N features an eight-belt dual-stage bale chamber, hydraulic pickup lift, a 1,000-rpm cut-out-clutch driveline configuration and the E-Link Pro control system with a 7-inch color touchscreen. Configured equipment includes twine, netwrap, a hydraulic bale ramp, pickup clutch and flotation tires, providing a versatile solution for hay producers requiring flexible tying and bale-handling options.

Built for High-Capacity Hay Baling

The Vermeer 605N uses a dual-stage bale chamber and eight premium mini rough-top belts to form round bales across a broad 36- to 72-inch diameter range. The 61-inch bale width supports the machine’s 5-ft x 6-ft designation, while the 77-inch tooth-to-tooth pickup width and 90-inch outside flare help accommodate gathered windrows.

Hydraulic pickup lift supports convenient pickup operation, and the supplied configuration includes a pickup clutch. Vermeer lists radial pin clutch or friction clutch with slip-sensing as pickup-clutch options. The hydraulic bale ramp assists with bale discharge, while the optional 21.5L-16.1 flotation tires provide the listed flotation-tire configuration and increase transport width compared with standard tires.

Control and Tying Equipment

The E-Link Pro control system provides operation through a 7-inch color touchscreen, and ISOBUS capability is standard. The configured baler includes twine and netwrap systems, allowing the operator to select the tying method suited to the crop and intended bale handling. Automatic chain lubrication is available as an option.

Key Features

• Variable-chamber round hay baler
• 5-ft x 6-ft bale designation with 61-inch bale width
• Adjustable bale diameter from 36 to 72 inches
• 1,000-rpm cut-out-clutch driveline configuration
• Dual-stage bale chamber
• Eight premium mini rough-top belts
• Twine tie system
• Netwrap system
• Hydraulic bale ramp
• Pickup clutch
• Optional 21.5L-16.1 flotation tires
• Hydraulic pickup lift
• E-Link Pro control system with 7-inch color touchscreen
• Standard ISOBUS capability
• Automatic chain lubrication available as an option

Specifications

Tractor Requirements

The Vermeer 605N requires a tractor with a minimum of 80 PTO horsepower, with 100 PTO horsepower recommended. The tractor must provide a 1,000-rpm PTO driveline configuration.
