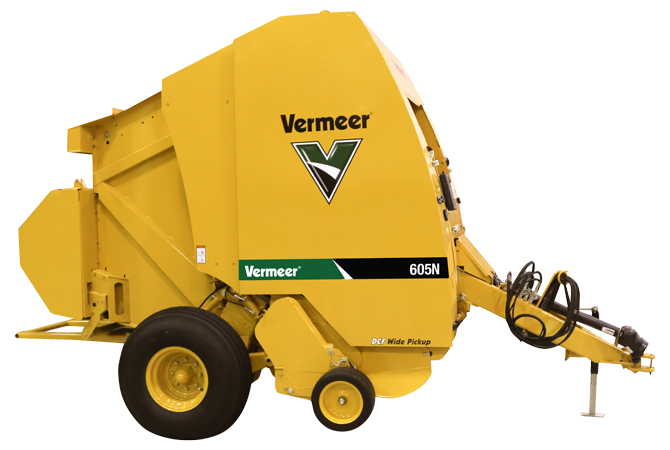

Vermeer 605N Round Baler – 5' x 6', 1000 RPM, Netwrap, Ramp, Floats, Pickup Clutch, Slope Sense [605848661]

Vermeer 605N Round Baler is a variable-chamber round hay baler configured for 5-foot-wide bales, a 1000-rpm PTO driveline, netwrap, hydraulic bale ramp, flotation tires, and pickup clutch capability. Built for high-capacity hay baling, the 605N combines a dual-stage bale-forming chamber with eight premium mini-rough-top belts to produce bales from 36 to 72 inches in diameter. Its 61-inch bale width, hydraulic pickup lift, pickup torque protection, and E-Link Pro ISOBUS-compatible display make it well suited to demanding field conditions and efficient bale handling.

Key Features

• Variable-chamber design forms 5-foot-wide bales from 36 to 72 inches in diameter.
• 1000-rpm PTO driveline with cut-out clutch configuration.
• Dual-stage bale chamber with eight premium mini-rough-top belts.
• Netwrap system with mechanical net-tension adjustment and extra-roll storage.
• Hydraulic bale ramp for convenient bale discharge.
• Optional 21.5L-16.1 flotation tires for a 129-inch transport width.
• Pickup clutch stops the pickup at the desired bale size.
• Pickup torque protection through a radial-pin clutch or friction clutch with slip-sensing.
• Hydraulic pickup lift with a 77-inch tooth-to-tooth pickup width and 90-inch outside flare.
• E-Link Pro ISOBUS-compatible display for baler operation and monitoring.
• Automatic chain lubrication and Auto Lube greasing systems are available as options.

Built for Productive Hay Baling

The 605N’s dual-stage variable chamber is designed to support consistent bale formation across a broad range of bale sizes. The bale chamber uses eight premium mini-rough-top belts, while the 61-inch bale width accommodates 5-foot-wide bales with diameters adjustable from 36 to 72 inches. This flexibility allows operators to select a bale size suited to crop conditions, handling requirements, and storage plans.

The configured 1000-rpm driveline uses a cut-out clutch. The baler requires a minimum of 80 PTO horsepower, with 100 PTO horsepower recommended for operation. The E-Link Pro display is ISOBUS-compatible, helping integrate baler controls and information with compatible tractor systems.

Pickup, Wrapping and Bale Discharge

The hydraulic pickup lift supports convenient adjustment in the field. The pickup measures 77 inches from tooth to tooth and 90 inches across the outside flare, providing a broad working area for gathering windrows. Pickup clutch capability allows the pickup to stop at the desired bale size, while the available torque-protection systems help protect the pickup drivetrain during operation.

The netwrap configuration includes mechanical net-tension adjustment and extra-roll storage. Once the bale is formed and wrapped, the hydraulic bale ramp assists with discharge and helps move the completed bale clear of the baler.

Specifications

Compatibility and Tractor Requirements

This configuration is intended for use with the Vermeer 605N baler platform and 1000-rpm PTO tractor driveline configuration. The tractor should provide at least 80 PTO horsepower; 100 PTO horsepower is recommended. Confirm that the tractor is compatible with the baler’s E-Link Pro ISOBUS-compatible display and has the capacity to safely handle the baler’s fully optioned weight of 8,600 lb (3,900.9 kg).
