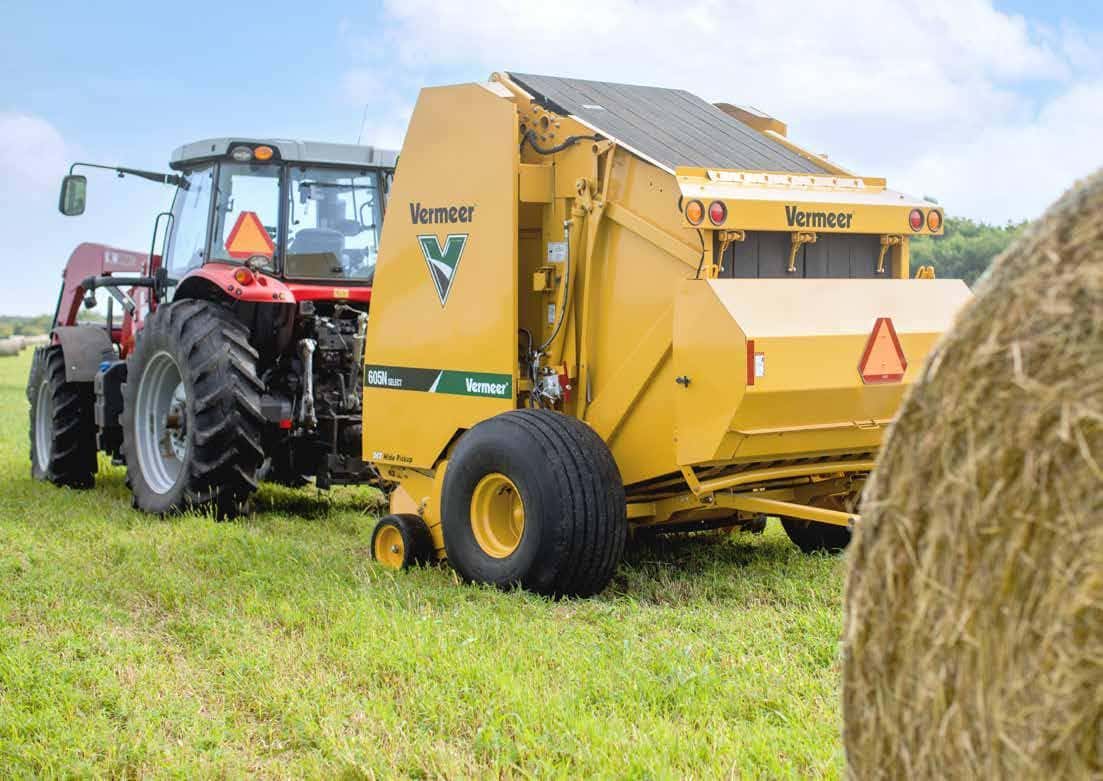

Vermeer 605N Round Baler – 5' x 6', 1000 RPM, Netwrap, Floats [605800561]

The Vermeer 605N Round Baler is a variable-chamber round hay baler designed for high-capacity baling, with a 5 ft x 6 ft bale configuration, 61-inch bale width, 1000-rpm driveline, netwrap system and flotation tires as identified in this product listing. Built with durable, heavy-duty components, the 605N combines a dual-stage bale chamber with an E-Link Pro control system to support consistent bale formation and straightforward operation. It is suited to hay and forage operations that need flexible bale sizing, substantial bale capacity and a wide pickup for collecting windrows efficiently.

High-Capacity Variable-Chamber Baling

The Vermeer 605N produces variable-diameter round bales from 36 to 72 inches, allowing bale size to be matched to crop conditions, handling preferences and storage requirements. Its 61-inch bale width supports substantial material collection, while the dual-stage bale chamber is designed for high-capacity baling performance. The maximum listed bale weight is 2,400 lb, depending on crop and operating conditions.

A cammed wide pickup with 65 double rubber-mounted pickup teeth helps collect material across a generous pickup area. The pickup measures 77 inches tooth to tooth and 90 inches across the outside flare. The standard right-hand door provides access to the bale chamber, while an optional hydraulic bale ramp can assist with bale discharge.

Control and Driveline Features

The 605N includes the E-Link Pro control system with a 7-inch color touchscreen display. ISOBUS capability is standard, supporting integration with compatible tractor and implement control systems. This listed configuration uses the 1000-rpm driveline with cut-out clutch. Vermeer also lists a 540-rpm standard-lube friction-clutch driveline for the 605N product family.

• Variable-chamber round hay baler for 36–72-inch bale diameters
• 5 ft x 6 ft configuration with 61-inch bale width
• 1000-rpm driveline with cut-out clutch
• Netwrap system included in the listed product configuration
• Flotation tires included in the listed product description; Vermeer specifies optional 21.5L-16.1 flotation tires for the model
• Dual-stage bale chamber for high-capacity baling
• E-Link Pro control system with 7-inch color touchscreen
• ISOBUS capability standard
• Cammed wide pickup with 65 double rubber-mounted teeth
• Standard right-hand door
• Optional hydraulic bale ramp
• Optional Auto Lube greasing system

Tractor Requirements and Compatibility

The Vermeer 605N requires a tractor with a minimum PTO output of 80 hp (59.7 kW). Vermeer recommends 100 hp (74.6 kW) for the product family. The baler uses a 1000-rpm driveline in this listed configuration. Confirm that the tractor is equipped for the required PTO speed and has suitable hydraulic capability for the hydraulic pickup lift. The manufacturer information supplied does not publish a specific hydraulic flow or pressure requirement.

Specifications
