Vermeer 604S Signature Round Baler – 4' x 6', 540 RPM, Netwrap, Ramp, Floats [604735471]

Vermeer 604S Signature Round Baler – 4' x 6'

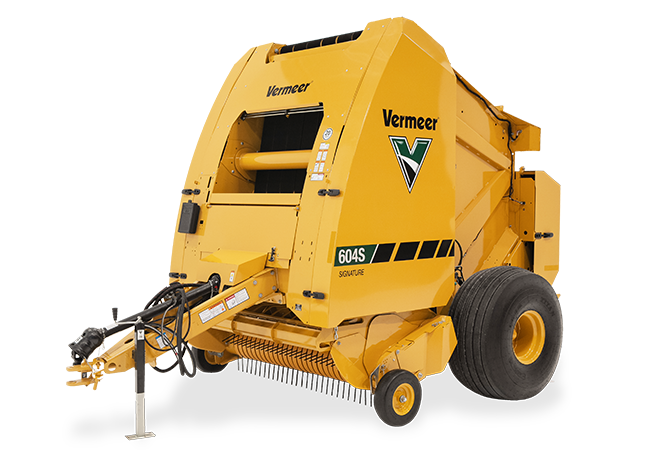

The Vermeer 604S Signature Round Baler is a variable-chamber round baler designed to produce consistent, square-shouldered hay bales in a 4 ft x 6 ft configuration. With standard 540-rpm PTO operation, a standard mechanical netwrap system, hydraulic bale ramp, and optional 21.5L-16.1 flotation tires, this Vermeer baler is equipped for efficient haymaking across a range of field conditions. Its 36–72 in (91–180 cm) adjustable bale diameter, 47 in (119.4 cm) bale width, camless wide pickup, and six premium mini rough-top belts support dependable crop pickup and bale formation for agricultural operations requiring uniform, manageable round bales.

Built for Consistent Bale Formation

The 604S Signature uses a variable-chamber design to produce bales from 36 to 72 inches in diameter. Six premium mini rough-top belts help form dense, consistent bales, while the 47-inch bale width is suited to the supplied 4 ft x 6 ft configuration. The standard mechanical netwrap system helps secure finished bales, and the hydraulic bale ramp supports bale discharge from the machine.

Wide Pickup for Efficient Crop Collection

The camless wide pickup measures 69 inches tooth-to-tooth and 82 inches across the outside flair. Seventy double rubber-mounted teeth are designed to collect crop across the pickup width. A hydraulic pickup lift is specified for the machine, although hydraulic flow and pressure requirements are not published in the verified specifications.

Operator Control and Driveline

Standard operation uses a 540-rpm PTO driveline with standard lubrication and a friction clutch. The baler includes the Atlas Pro control system with a 7-inch (18 cm) color touchscreen and standard ISOBUS capability. A standard right-hand door is included. An optional 1,000-rpm driveline with standard lubrication and automatic clutch is also specified for the model.

Key Features

• Variable-chamber round baler producing 36–72 in (91–180 cm) diameter bales
• 47 in (119.4 cm) bale width
• Standard 540-rpm PTO operation
• Standard mechanical netwrap system
• Hydraulic bale ramp
• Camless wide pickup with 70 double rubber-mounted teeth
• Six premium mini rough-top belts
• Atlas Pro control system with 7-in (18-cm) color touchscreen
• Standard ISOBUS capability
• Optional 21.5L-16.1 flotation tires
• Standard right-hand door
• Optional automatic lubrication systems available for greasing and chain lubrication

Tractor Requirements

The Vermeer 604S Signature requires a tractor with a minimum of 70 PTO hp (52.2 kW). Vermeer recommends 90 PTO hp (67.1 kW) for operation. The supplied configuration supports standard 540-rpm PTO operation. Hydraulic bale ramp and hydraulic pickup lift functions are specified; hydraulic flow and pressure requirements are not published in the verified product information.

Specifications

Product code: 604SSIG224400
