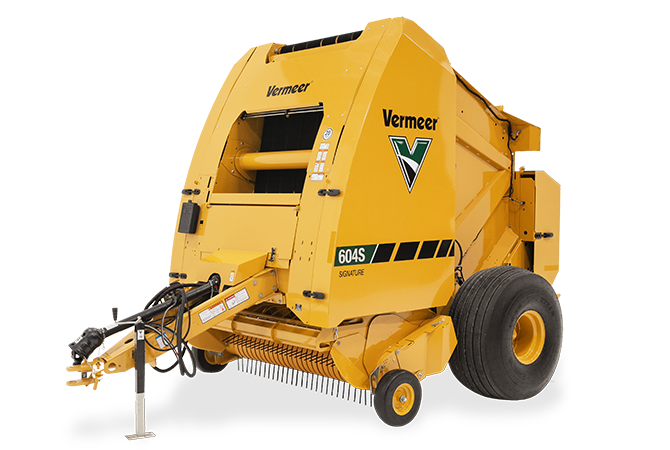

Vermeer 604S Signature Round Baler – 4' x 6', 1000 RPM, Netwrap, Ramp, Floats [604735471]

Vermeer 604S Signature Round Baler – 4' x 6', 1000 RPM, Netwrap, Ramp, Floats [604735471] is a variable-chamber round baler configured for producing 4 ft x 6 in? Wait title says 4' x 6' but specs 47 width, 36-72 diameter. Need not misstate 4ft x6 perhaps 4 ft x 6 ft bale configuration. Built for efficient hay baling, this Vermeer baler combines a 5-bar camless wide pickup, six premium mini rough-top belts, standard mechanical netwrap, hydraulic bale ramp and flotation tires. The Atlas Pro control system with a 7-inch colour touchscreen supports in-cab operation, including bale density adjustment, helping the operator manage bale formation without leaving the tractor seat. This supplied catalogue configuration is identified as product code 604735471 and includes the 1,000 rpm driveline configuration, netwrap, ramp and flotation tires.

Designed for Flexible Bale Formation

The 604S Signature uses a variable-chamber design capable of forming bales from 36 to 72 inches in diameter, with a 47-inch bale width. This provides flexibility for producing different bale sizes to suit handling, storage and field requirements. The pickup measures 69 inches from tooth to tooth and uses 70 double rubber-mounted teeth to gather crop into the baler. Six premium mini rough-top belts support bale formation inside the chamber.

Operator Controls and Bale Handling

Vermeer’s Atlas Pro control system features a 7-inch, 18-centimetre colour touchscreen and provides access to key baling functions from the tractor cab. In-cab density adjustment allows the operator to adjust bale density while working. The standard mechanical netwrap system and dual spiral net spreader bar support net application, while the hydraulic bale ramp assists with bale discharge.

The listed configuration uses 21.5L-16.1 flotation tires. These tires are identified by Vermeer as an optional configuration for the 604S Signature, while the supplied product identification specifies the flotation-tire version.

Key Features

• Variable-chamber round baler for 4 ft x 6 ft bale configuration
• 47-inch (119.4 cm) bale width
• 36–72-inch (91–180 cm) bale diameter range
• 1,000 rpm driveline configuration
• Standard mechanical netwrap system
• Hydraulic bale ramp
• 21.5L-16.1 flotation tires
• 5-bar camless wide pickup with 70 double rubber-mounted teeth
• 69-inch (175.3 cm) pickup width, tooth to tooth
• Six premium mini rough-top bale-forming belts
• Atlas Pro control system with 7-inch (18 cm) colour touchscreen
• In-cab bale-density adjustment
• Dual spiral net spreader bar
• ISOBUS capability standard
• Optional scale system and Auto Lube greasing system

Tractor Requirements and Compatibility

The Vermeer 604S Signature requires a tractor with a minimum of 70 PTO horsepower (52.2 kW). Vermeer recommends 90 PTO horsepower (67.1 kW) for the machine. The supplied configuration is identified with a 1,000 rpm driveline; Vermeer also lists a standard 540 rpm driveline for the model, with the 1,000 rpm option using standard lubrication and an automatic clutch.

Specifications
