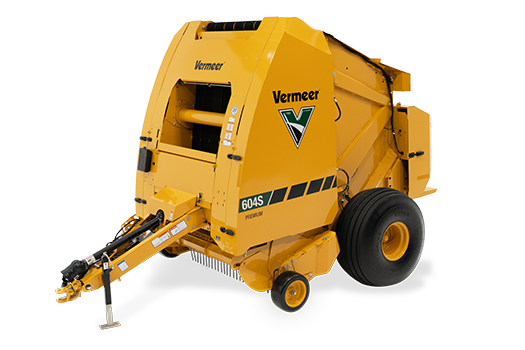

Vermeer 604S Premium Round Baler – 4' x 6', SM 1000 RPM, Lights, Netwrap, Slope Sense [604782631]

The Vermeer 604S Premium Round Baler is a variable-chamber baler designed to produce consistent, dense 4-ft-wide round bales across a broad range of bale sizes. This supplied configuration is specified with a 1,000-rpm PTO, lights, netwrap and Slope Sense, combining Vermeer’s premium mini rough-top belt system with a wide camless pickup, Atlas Pro touchscreen control and hydraulic bale ramp. It produces bales from 36 to 72 inches in diameter, making it suitable for operations that need flexibility in bale size, dependable crop pickup and in-cab control over baling performance.

Consistent Bale Formation and Density

The 604S Premium uses six premium mini rough-top belts to form bales while maintaining consistent belt pressure throughout the baling process. In-cab density adjustment allows the operator to adjust bale formation from the tractor cab, helping tailor bale density to operating conditions and handling requirements. Standard moisture monitoring supports monitoring of crop moisture levels up to 29% during baling.

The variable-chamber design produces 47-inch-wide bales with diameters from 36 to 72 inches. Maximum bale weight is listed at 2,400 lb, depending on crop and operating conditions. The standard hydraulic bale ramp assists with bale discharge after wrapping.

Pickup and Crop Handling

A camless wide pickup provides a 69-inch tooth-to-tooth working width and an 82-inch outside-flare width. The pickup uses five tooth bars and 70 double rubber-mounted teeth to gather the windrow. The wide pickup configuration is designed to support efficient crop collection across a broad swath.

Controls, Wrapping and Maintenance

The Atlas Pro control system features a 7-inch color touchscreen for operating and monitoring the baler. Standard mechanical netwrap provides integrated bale wrapping capability. The supplied product configuration includes netwrap and Slope Sense, while the machine also includes standard LED maintenance lights for improved visibility around service areas. Vermeer lists an Auto Lube greasing system as standard to support routine lubrication requirements.

Key Features

• Variable-chamber baling for 36–72-inch diameter bales
• 47-inch bale width
• Six premium mini rough-top bale-forming belts
• Camless wide pickup with 70 double rubber-mounted teeth
• 69-inch tooth-to-tooth pickup width and 82-inch outside-flare width
• Atlas Pro control system with 7-inch color touchscreen
• In-cab density adjustment
• Standard moisture monitoring up to 29%
• Standard mechanical netwrap system
• Hydraulic bale ramp
• Standard LED maintenance lights
• Auto Lube greasing system listed as standard
• Supplied variant includes lights, netwrap, Slope Sense and a 1,000-rpm PTO configuration

Tractor Requirements

The minimum tractor PTO requirement is 85 hp (63.4 kW), with 105 hp (78.3 kW) recommended. The supplied variant is identified with a 1,000-rpm PTO and a 1-3/8-inch, 1,000-rpm PTO driveline. Vermeer’s available driveline specifications list standard 540-rpm and optional 1,000-rpm configurations, including 1-3/8-inch or 1-3/4-inch extended-lubrication automatic-clutch configurations.
