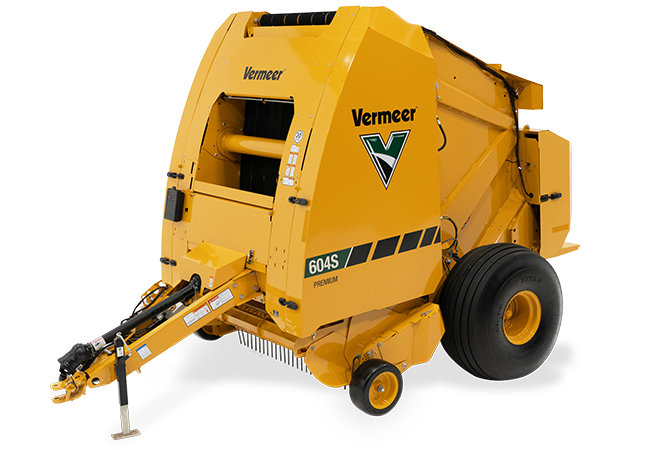

Vermeer 604S Premium Round Baler – 4' x 6', LG 1000 RPM, Scale, Lights, Net Lift, Slope Sense, Auto-Eject [604885891]

The Vermeer 604S Premium Round Baler is a variable-chamber round baler configured for 4-ft x 6-ft nominal bales, with a 1,000-rpm driveline, scale, lights, net lift, Slope Sense and Auto-Eject identified in the supplied variant description. Designed for efficient hay production, it forms bales from 36 to 72 inches in diameter and uses consistent belt pressure to support improved bale shape and density throughout the baling process. The Atlas Pro control system provides in-cab density adjustment, bale statistics and moisture information, while the wide pickup, hydraulic bale ramp and automatic bale-handling features help support productive field operation.

Key Features

• Variable-chamber round baler for 36–72-inch bale diameters.
• 47-inch bale width for the manufacturer-specified configuration.
• Configured with a 1,000-rpm driveline option.
• Atlas Pro control system with a 7-inch color touchscreen.
• In-cab density adjustment, bale statistics and moisture information.
• Six Premium mini rough-top bale-forming belts.
• Camless wide pickup with 70 double rubber-mounted teeth.
• 69-inch pickup width tooth-to-tooth and 82-inch width outside flair.
• Standard mechanical netwrap system.
• Scale system identified in the supplied variant description.
• Net lift system identified in the supplied variant description.
• Auto-Eject system identified in the supplied variant description.
• LED maintenance lights and Auto Lube greasing system.
• Hydraulic bale ramp for bale handling.
• Standard moisture monitoring up to 29%.

Built for Consistent Bale Formation

The 604S Premium uses six Premium mini rough-top belts and consistent belt pressure throughout the baling process to support well-shaped, dense bales. Its variable-chamber design accommodates bale diameters from 36 to 72 inches, allowing the operator to select the bale size suited to the crop and handling requirements. The 47-inch bale width provides the manufacturer-specified working format for this model.

Pickup and Control System

The camless wide pickup has a 69-inch tooth-to-tooth width and an 82-inch width outside the flair. Seventy double rubber-mounted teeth help gather windrowed material for the baling chamber. Operation is managed through the Atlas Pro control system, which includes a 7-inch color touchscreen and provides access to density adjustment, bale statistics and moisture information. Moisture monitoring is standard and measures up to 29%.

Configured Bale-Handling Features

The supplied product description identifies this variant with a scale, net lift and Auto-Eject. The scale system uses three load cells to support bale weighing. The net lift system is designed as an optional net-handling feature, while Auto-Eject opens and closes the tailgate without operator assistance. The machine also includes a hydraulic bale ramp and LED maintenance lights. Slope Sense is included in the supplied variant name, but its installation on product code 604885891 is not independently confirmed in the current official 604S Premium product sources.

Specifications

Tractor Requirements

The Vermeer 604S Premium requires a minimum tractor PTO output of 85 hp (63.4 kW), with 105 hp (78.3 kW) recommended. This catalogue variant is identified with a 1,000-rpm driveline. The configured driveline may use either a 1-3/8-inch or 1-3/4-inch shaft, but the exact shaft size is not identified in the supplied product record. Hydraulic pickup lift and a hydraulic bale ramp are required. Auto-Eject requires a tractor hydraulic detent; exact hydraulic flow and pressure requirements were not published.

Compatibility

This product is compatible with the Vermeer 604S Premium baler configuration described above. Confirm the tractor PTO speed, driveline shaft size and hydraulic equipment before operation.
