Vermeer 604 Pro G4 Round Baler – 4' x 6', 1000 RPM, Netwrap, Ramp, 17-Knife, Floats [6041015891]

Vermeer 604 Pro G4 Round Baler – 4' x 6', 1,000 RPM, Netwrap, Ramp, 17-Knife, Flotation Tires [6041015891]

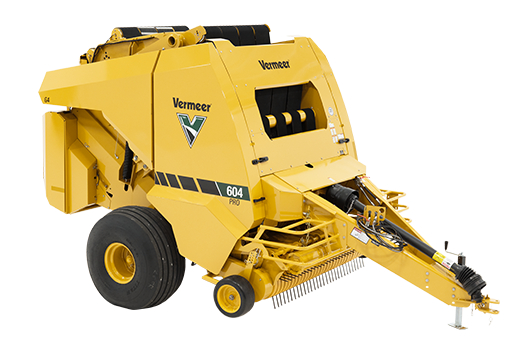

The Vermeer 604 Pro G4 is a variable-chamber round baler engineered for versatility, durability, and ease of use when producing premium forage. This researched configuration combines a 1,000 rpm PTO setup with a 17-knife chopping system, standard netwrap, a spring-loaded bale ramp, and flotation tires. Its 4-ft-wide bale chamber produces adjustable bales from 36 to 72 inches in diameter, making it suitable for operations that need flexible bale sizing. A camless wide pickup, hydraulic pickup lift, drop floor for plug clearing, and Atlas Pro control system with a 7-inch color touchscreen support efficient operation in the field.

Key Features

• Variable-chamber round baler producing 36–72 in (91–180 cm) diameter bales
• 48 in (121.9 cm) bale width for a nominal 4 ft x 6 ft bale format
• 1,000 rpm PTO configuration
• 17-knife chopping system
• Standard netwrap system
• Spring-loaded bale ramp for bale discharge
• 21.5L-16.1 flotation tires
• Camless wide pickup with 73 in tooth-to-tooth width and 78 in outside flare
• Hydraulic pickup lift
• Drop floor for plug clearing
• Atlas Pro control system with 7-in color touchscreen
• Standard ISOBUS capability
• Optional moisture monitoring available up to 29%

Designed for Flexible Bale Production

The 604 Pro G4’s variable-chamber design allows bale diameter to be adjusted between 36 and 72 inches. The 48-inch bale width provides the 4-ft-wide format identified for this product, while the broad pickup is designed to collect forage across a 73-inch tooth-to-tooth working width and 78-inch outside flare. The camless wide pickup and hydraulic pickup lift are included among the model’s verified operating features.

Chopping, Wrapping and Discharge

This configuration is equipped with a 17-knife chopping system for processing forage as it enters the baler. A standard netwrap system provides the specified bale-tie method, and the spring-loaded bale ramp supports bale discharge after formation. The drop floor is provided for plug clearing, helping address material buildup within the baler during operation.

Operator Control and Connectivity

The Atlas Pro control system uses a 7-inch color touchscreen for machine control. ISOBUS capability is standard, and the baler is compatible with an ISOBUS-capable tractor. Optional moisture monitoring is available for readings up to 29%, allowing this feature to be specified where required.

Specifications

Tractor Requirements and Compatibility

The Vermeer 604 Pro G4 requires a tractor with a minimum of 90 PTO horsepower, while 120 PTO horsepower is recommended. This product configuration uses a 1,000 rpm PTO setup. The baler is also compatible with an ISOBUS-capable tractor. Hydraulic pickup lift is required; additional hydraulic flow and pressure requirements are not specified here.
