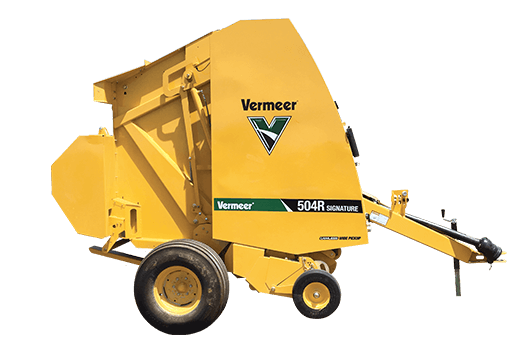

Vermeer 504R Signature Round Baler – 4' x 5', Twine, Netwrap, Ramp, Floats [504610961]

The Vermeer 504R Signature Round Baler is a variable-chamber round hay baler designed for producers who bale dry hay and want the capability to handle heavy, wet hay when needed. This 4-ft-class configuration produces bales from 36 to 60 inches in diameter and 47 inches wide, with supported twine and netwrap systems, a spring-loaded bale ramp, and pickup flotation equipment. With a 60-inch camless wide pickup, Atlas Pro control system, real-time moisture monitoring, and two bale-shape indicators, the 504R Signature is built to support consistent bale formation and practical field operation.

Product Highlights

• Variable-chamber bale forming system for 36–60-inch diameter bales
• Produces 47-inch-wide bales
• Camless wide pickup measuring 60 inches tooth-to-tooth
• Six standard mini rough-top belts, each 6.8 inches wide
• Atlas Pro control system with a 7-inch color touchscreen
• Standard moisture monitoring up to 29%
• Two standard bale-shape indicators
• Twine and netwrap systems supported for tying flexibility
• Mechanical net-tension adjustment with extra-roll storage standard when equipped with the netwrap system
• Spring-loaded bale ramp supported for bale handling and unloading
• Pickup flotation with 4.8-16 HD semi-pneumatic gauge wheels and spring assist
• Standard right-hand baler door
• Friction-clutch main driveline protection

Built for Flexible Hay Baling

The 504R Signature uses a variable bale chamber to form bales between 36 and 60 inches in diameter. Its 47-inch bale width suits the 4-ft-class configuration identified for this product, while the six-belt design supports the bale-forming system. The standard mini rough-top belt configuration provides the specified belt arrangement for this model.

The camless wide pickup measures 60 inches tooth-to-tooth and uses five tooth bars with 60 double steel coil teeth. Pickup flotation is provided by 4.8-16 HD semi-pneumatic gauge wheels with spring assist, helping support pickup operation across changing field conditions. Manual pickup lift is standard, with hydraulic pickup lift available as an option.

Control, Monitoring and Bale Handling

The Atlas Pro control system features a 7-inch color touchscreen for baler operation. Real-time moisture monitoring is standard up to 29%, giving operators moisture information during baling. Two standard bale-shape indicators help monitor bale formation as the chamber fills.

The listed configuration supports both twine and netwrap systems. The netwrap system includes mechanical net-tension adjustment and standard extra-roll storage. A spring-loaded bale ramp is also supported, providing an option for handling completed bales as they leave the baler.

Tractor Requirements

The Vermeer 504R Signature requires a minimum of 45 PTO horsepower, with 55 PTO horsepower recommended. It uses a 540-rpm PTO driveline with standard lubrication and a friction clutch. A hitch specification was not provided.
