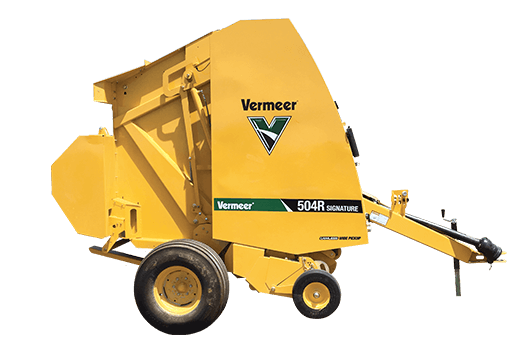

Vermeer 504R Signature Round Baler – 4' x 5', Netwrap, Ramp [504569691]

Vermeer 504R Signature Round Baler – 4' x 5', Netwrap, Ramp [504569691] is a Vermeer round baler designed to produce consistent, square-shouldered bales for hay operations. This listed configuration identifies the 4-ft x 5-ft bale format with a netwrap system and spring-loaded bale ramp. The 504R Signature combines a 60-in pickup, six mini-rough-top belts, standard moisture sensing, bale-shape indicators, and the Atlas Pro control system with a 7-in color touchscreen to support practical, controlled baling from windrow pickup through bale formation and discharge.

Built for Consistent Bale Formation

The Vermeer 504R Signature forms bales from 36 to 60 in in diameter and 47 in wide, with a maximum bale weight of 2,000 lb. Its square-shouldered bale formation is supported by six mini-rough-top belts, while the 5-bar camless wide pickup uses double steel-coil teeth to gather crop material. The 60-in pickup has five tooth bars and is designed to collect the windrow across the baler’s working width.

Standard moisture sensors measure moisture up to 29%, and standard bale-shape indicators help monitor bale formation. The Atlas Pro control system provides operation through a 7-in color touchscreen, giving the operator access to the baler’s control functions from the tractor.

Key Features

• Vermeer 504R Signature round baler
• Listed 4-ft x 5-ft bale configuration
• 36–60-in adjustable bale diameter range
• 47-in bale width
• 60-in pickup width, tooth to tooth
• 5-bar camless wide pickup with double steel-coil teeth
• Six mini-rough-top belts for bale formation
• Square-shouldered bale formation
• Netwrap system included in the listed configuration
• Spring-loaded bale ramp included in the listed configuration
• Standard moisture sensing up to 29%
• Standard bale-shape indicators
• Atlas Pro control system with 7-in color touchscreen
• 540-rpm driveline with standard lubrication and friction clutch
• Optional silage kit availability
• 3-year pickup warranty coverage for internal pickup components, parts, and labor

Netwrap and Bale Ramp Configuration

The supplied product listing identifies this unit with the optional netwrap system and optional spring-loaded bale ramp. Netwrap provides the specified bale-tie method for this configuration, while the spring-loaded ramp is designed as the listed bale-discharge equipment. The manufacturer specifications also identify a twine system as optional on the 504R Signature model.

Tractor Requirements

The baler requires a tractor with a minimum PTO power rating of 45 hp (33.6 kW). Vermeer recommends 55 hp (41 kW) for the PTO. The driveline operates at 540 rpm and uses standard lubrication with a friction clutch.

A hydraulic pickup lift is optional. No total hydraulic-flow requirement is specified in the available manufacturer catalogue information, so tractor hydraulic compatibility should be confirmed before purchase when the hydraulic pickup-lift option is required.
