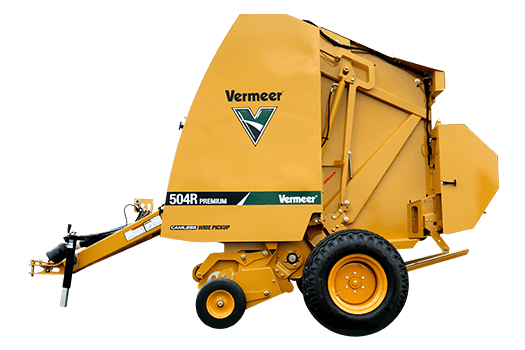

Vermeer 504R Premium Round Baler – 4' x 5', Twine, Netwrap, Ramp, Endless Belts, Floats [504680681]

Vermeer 504R Premium Round Baler is a 4-ft-class variable-chamber round baler designed for dependable hay and high-moisture crop baling. Its standard silage kit supports high-moisture crops, while the 60-in camless wide pickup, six premium belts, standard netwrap system, spring-loaded bale ramp, and Atlas Pro control system help streamline baling from windrow pickup through bale discharge. The 504R Premium produces bales measuring 36–60 in in diameter and 47 in wide, making it a versatile choice for operators managing varied forage conditions and bale sizes. Optional twine, endless belts, and flotation tires allow the baler to be equipped for specific operating preferences and field conditions.

Built for Versatile Round Baling

The variable-chamber design produces adjustable bale diameters from 36 to 60 in, while the 47-in bale width provides a consistent 4-ft-class bale format. A camless wide pickup spans 60 in from tooth to tooth and uses five pickup tooth bars to gather windrows efficiently. Hydraulic pickup lift supports convenient adjustment during field operation.

The 504R Premium is equipped with a standard silage kit for high-moisture crops and standard moisture monitoring up to 29%. Its standard netwrap system helps secure finished bales, while an optional twine system provides an alternative tying method. The spring-loaded bale ramp assists bale discharge after wrapping.

Key Features

• Variable-chamber round baler producing 36–60-in diameter bales
• 47-in bale width for 4-ft-class bale production
• Standard silage kit designed for high-moisture crops
• 60-in camless wide pickup with five tooth bars
• Hydraulic pickup lift
• Six premium mini rough-top belts; endless belts are available as an option
• Standard netwrap system with optional twine system
• Spring-loaded bale ramp
• Standard moisture monitoring up to 29%
• Atlas Pro control system with 7-in color touchscreen
• Standard grease bank and extended lubrication
• Optional 480-45 R17 flotation tires

Drive, Belts, and Operator Control

The driveline is rated for a 540-rpm PTO and includes extended lubrication and a friction clutch. Six belts, each 6.8 in wide, form the bale chamber; the standard belt specification is premium mini rough-top, with endless belts available as an option. The Atlas Pro control system is operated through a 7-in color touchscreen, providing the control interface for baling operations. Standard moisture monitoring up to 29% supports crop-condition awareness during baling.

Specifications

Tractor Requirements

The Vermeer 504R Premium requires a tractor with a minimum of 55 PTO hp (41 kW). Vermeer recommends 65 PTO hp (48.5 kW) and a 540-rpm PTO.
