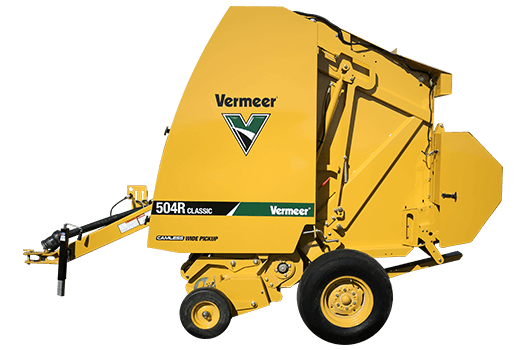

Vermeer 504R Classic Round Baler – 4' x 5', Twine, Netwrap [504483301]

SKU 504RCLA2005

Starting at: Starting at $62,766.⁰⁰

Starting at: Starting at $62,766.⁰⁰

Add your items to the Cart to begin to build and price your package!

When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

The Vermeer 504R Classic Round Baler is a variable-chamber round hay baler designed to produce 4-foot-wide bales with adjustable diameters from 36 to 60 inches. With a 60-inch camless wide pickup, five standard mini rough-top belts, 540-rpm driveline, and Atlas control system with a color touchscreen, it is suited to haymaking operations that need flexible bale sizing and dependable crop intake. This configuration supports twine tying, with a netwrap system available as an option, and is designed for tractors providing at least 40 PTO horsepower, with 50 PTO horsepower recommended.

Flexible Bale Formation for Hay Operations

The Vermeer 504R Classic uses a variable-chamber bale chamber to form bales measuring 47 inches wide, with the diameter adjustable between 36 and 60 inches. This flexibility allows operators to select a bale size suited to crop conditions, handling preferences, and storage requirements. Maximum bale weight is rated at 1,000 pounds.

Crop intake is handled by a 60-inch camless wide pickup fitted with four tooth bars and 48 double steel-coil teeth. The wide pickup is designed to gather windrows efficiently, while the five standard mini rough-top belts, each 6.8 inches wide, support consistent bale formation through the variable chamber.

Key Features

Variable-chamber round baler for adjustable bale sizing
47-inch bale width for a 4-foot bale configuration
Adjustable bale diameter from 36 to 60 inches
60-inch camless wide pickup, measured tooth-to-tooth
Four pickup tooth bars with 48 double steel-coil teeth
Five standard mini rough-top belts, 6.8 inches wide
Twine tie system configuration
Optional netwrap system
Atlas control system with 4.3-inch color touchscreen
540-rpm driveline with standard lubrication and radial pin clutch
Manual pickup lift standard; hydraulic pickup lift available as an option
Standard 11L-15 tires
Radial-pin-clutch drive protection

Control and Bale-Handling Options

The Atlas control system provides operator control through a 4.3-inch color touchscreen. Bale-production options include twine tying and an optional netwrap system. Optional bale-shape indicators and moisture sensors are also available for configurations equipped with those features. The standard pickup lift is manual, while a hydraulic pickup lift is available as an option.

Tractor Requirements

The Vermeer 504R Classic requires a minimum of 40 PTO horsepower (29.8 kW). Vermeer recommends a tractor providing 50 PTO horsepower (37.3 kW). The driveline operates at 540 rpm. Confirm that the tractor is appropriately matched to the baler and that the available PTO and operating equipment meet the requirements for the intended application.

Specifications

Brand	Vermeer
Model	504R Classic baler
Product type	Variable-chamber round hay baler
Bale diameter	36–60 in (91.4–152.4 cm)
Bale width	47 in (119.4 cm)
Maximum bale weight	1,000 lb (453.6 kg)
Binding systems	Twine tie system; optional netwrap system
Driveline	540 rpm, standard lube, radial pin clutch
Minimum PTO requirement	40 hp (29.8 kW)
Recommended PTO	50 hp (37.3 kW)
Pickup type	Camless wide
Pickup width	60 in (152.4 cm) tooth-to-tooth
Pickup tooth bars	4
Pickup teeth	48 double steel-coil teeth
Belts	5 standard mini rough-top belts; 6.8 in (17.3 cm) belt width
Standard length	156 in (396.2 cm)
Length with netwrap	173 in (439.4 cm)
Height	107 in (271.8 cm)
Transport width	100 in (254 cm) with standard tires
Fully optioned weight	5,260 lb (2,385.9 kg)
Standard tires	11L-15
Control system	Atlas control system with 4.3-in (11-cm) color touchscreen
Pickup lift	Manual standard; hydraulic optional
Manufacturer warranty coverage	3-year pickup coverage on internal components, including parts and labor; teeth and tooth hardware excluded
