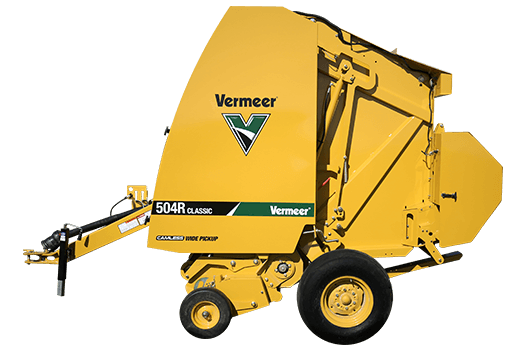

Vermeer 504R Classic Round Baler – 4' x 5', MANUAL ELECTRIC, Twine, Ramp [504376881]

Vermeer 504R Classic Round Baler – 4' x 5', Manual Electric Twine, Ramp is a variable-chamber round hay baler built for dependable, full-time baling with straightforward operation and robust performance. This configured Vermeer 504R Classic features a manual/electric twine controller, twine tying system, and spring-loaded bale ramp for efficient bale handling. Its variable bale chamber produces 36–60 in diameter by 47 in wide bales, while the 60 in camless wide pickup is designed to collect hay across broad windrows. With a 540-rpm driveline and a minimum tractor PTO requirement of 40 hp, the 504R Classic is suited to hay producers and operators looking for a practical baling solution with convenient routine maintenance and simple control.

Key Features

• Variable-chamber round baler for producing 36–60 in diameter bales
• 47 in bale width
• Manual/electric twine controller configuration
• Twine tying system
• Spring-loaded bale ramp for bale discharge
• 60 in camless wide pickup, measured tooth-to-tooth
• Four pickup tooth bars with 48 double steel-coil teeth
• Five standard mini rough-top belts
• Atlas control system with 4.3 in color touchscreen
• Standard 540-rpm driveline
• Radial pin clutch
• Manual bale-density adjustment through a hydraulic relief valve
• Heavy-duty components intended for robust performance
• Optional netwrap system available for the 504R Classic

Designed for Practical Hay Baling

The Vermeer 504R Classic combines a variable bale chamber with a durable belt-and-pickup configuration to support consistent round-bale production. The five standard mini rough-top belts work within the variable chamber to form bales from 36 to 60 in in diameter, allowing operators to select a bale size suited to their application. The 47 in bale width provides a compact, versatile bale format for everyday hay operations.

A 60 in camless wide pickup helps gather windrows efficiently, with four tooth bars carrying 48 double steel-coil teeth. The pickup is designed around straightforward operation and includes manual pickup lift as standard. Bale density is adjusted manually through the hydraulic relief valve, providing a direct operating setup without adding unnecessary complexity.

Twine and Bale Handling

This catalogue configuration includes the manual/electric twine controller option and twine tying system. The controller supports the twine-focused specification of this baler variant, while the spring-loaded bale ramp assists with bale discharge after tying. Together, these features provide a practical configuration for operators who prefer twine tying and require an integrated ramp for handling finished bales in the field.

Tractor Requirements

The 504R Classic requires a tractor with a minimum PTO output of 40 hp (29.8 kW). A tractor with 50 hp (37.3 kW) at the PTO is recommended. The baler uses a standard 540-rpm PTO driveline. Confirm that the towing tractor is properly matched to the baler and its operating conditions before use.

Specifications

Product code: 504RCLA2107
