Vermeer 504R Classic Round Baler – 4' x 5', MANUAL ELECTRIC, Twine [504368341]

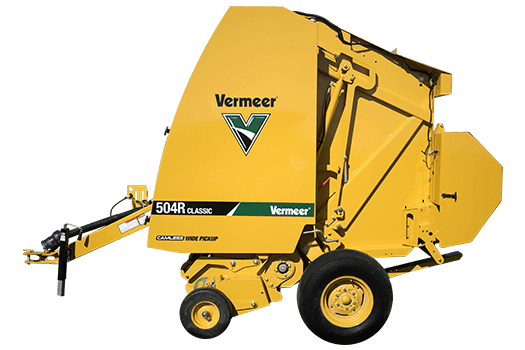

Vermeer 504R Classic Round Baler – 4' x 5', Manual/Electric Twine is a variable-chamber round hay baler designed for dependable part-time and full-time baling applications. This Vermeer 504R Classic configuration uses a manual/electric twine controller and twine tie system to produce consistent 36–60 in diameter by 47 in wide bales. Its 60 in pickup, five mini rough-top belts, Atlas control system, and 540-rpm PTO driveline support efficient hay collection and bale formation for operators seeking practical performance and straightforward operation.

Product Overview

The 504R Classic forms variable-size round bales from 36 to 60 in in diameter, allowing bale size to be selected for the intended handling, storage, and feeding application. A 4-bar camless wide pickup uses 48 double steel-coil teeth across a 60 in tooth-to-tooth working width to collect hay into the bale chamber. Manual pickup lift is standard, while a hydraulic pickup lift is available as an option.

This product variant is configured with Vermeer’s manual/electric twine controller and twine tie system. The optional twine system includes a single-arm feed mechanism, adjustable spring-loaded twine tension plates, and storage for four balls of twine. A netwrap system is also available as an option, but the listed configuration is specified for twine.

Key Features

• Variable-chamber round baler for 36–60 in diameter bales
• Produces 47 in wide bales
• Manual/electric twine controller configuration
• Optional twine tie system with single-arm feed mechanism
• 60 in tooth-to-tooth pickup width
• 4-bar camless wide pickup with 48 double steel-coil teeth
• Five 6.8 in wide mini rough-top belts
• Atlas control system with 4.3 in color touchscreen
• 540-rpm PTO driveline
• Manual pickup lift standard; hydraulic pickup lift optional
• Radial pin clutch protection on the main input shaft and pickup
• Optional netwrap system available

Bale Formation and Tying

The variable bale-forming chamber is designed to create bales from 36 to 60 in in diameter, with a maximum listed bale weight of 1,000 lb. Five mini rough-top belts, each 6.8 in wide, support bale formation. The manual/electric twine controller matches this product configuration and provides the control interface for the twine tie operation.

Tractor Requirements

The Vermeer 504R Classic requires a tractor with a minimum PTO rating of 40 hp (29.8 kW). A 50 hp (37.3 kW) tractor PTO rating is recommended. The baler uses a 540-rpm PTO driveline. No separate hydraulic tractor-flow requirement is specified in the available product information.

Transport and Dimensions

With standard 11L-15 tires, the baler has an overall transport width of 100 in (254 cm). Its standard length is 156 in (396.2 cm), increasing to 169 in (429.3 cm) with a bale ramp or 173 in (439.4 cm) with a net system. Overall height is 107 in (271.8 cm).
