Vermeer 504 Pro G4 Round Baler – 4' x 5', 540 RPM, Netwrap, Ramp, 17-Knife, Floats, SC Package [504946671]

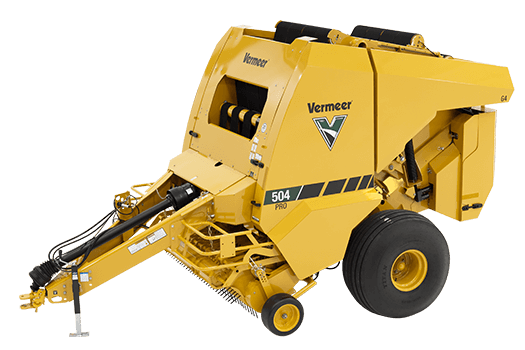

The Vermeer 504 Pro G4 Round Baler is a variable-chamber baler designed to produce consistent, high-quality forage bales across a range of field conditions. This configured machine forms 4-foot-wide bales from 36 to 60 inches in diameter and combines a 17-knife chopping system, standard rear-load netwrap, a spring-loaded bale ramp, flotation tires, and a camless wide pickup. The Atlas Pro control system with a 7-inch color touchscreen helps manage baling functions, while the flexible drop floor supports crop flow and plug-clearing operations. With a standard 540-rpm PTO driveline and a minimum tractor requirement of 80 PTO horsepower, the 504 Pro G4 is suited to hay and forage operations seeking versatile bale sizing, efficient pickup, and operator-focused control.

Key Features

• Variable-chamber baling: Produces bales from 36 to 60 inches (91–150 cm) in diameter.
• 4-foot bale width: Forms bales 48 inches (121.9 cm) wide.
• 17-knife chopping system: Supports forage processing within the baling system.
• Standard rear-load netwrap: Applies netwrap through the standard netwrap system.
• Spring-loaded bale ramp: Helps support bale discharge from the chamber.
• Camless wide pickup: Features a 73-inch tooth-to-tooth pickup width and 78-inch outside-flare width.
• Pickup flotation: Includes 7.10-16 HD semi-pneumatic gauge wheels with spring assist.
• Flexible drop floor: Supports crop flow and plug-clearing operations.
• Atlas Pro control system: Includes a 7-inch (18 cm) color touchscreen, standard bale-shape indicators, net gauge, and net-tension control.
• Flotation tires: Equipped with 21.5L-16.1 flotation tires.
• Four endless belts: Uses four 11.2-inch (28.4 cm) bale-chamber belts.
• Operator convenience features: Includes standard ISOBUS capability, extra-roll net storage, and a grease bank.

Designed for Versatile Forage Baling

The 504 Pro G4 combines variable-chamber bale formation with a wide pickup to support efficient collection of windrows. Its 75 double rubber-mounted pickup teeth are designed to gather crop across the pickup opening, while hydraulic pickup lift and spring-assisted gauge wheels help provide operating flexibility. The 17-knife chopping system adds processing capability for forage applications where chopped material is preferred.

Bale size can be selected across the 36- to 60-inch diameter range, allowing operators to match bale dimensions to crop conditions, handling preferences, and storage requirements. The baler has a maximum bale weight of 2,400 pounds (1,088.6 kg), depending on crop and operating conditions.

Control and Bale-Handling Equipment

The Atlas Pro control system uses a 7-inch color touchscreen for managing bale-related functions. Bale-shape indicators are standard, and the net gauge and net-tension control are operated through the control system. Standard rear-load netwrap and extra-roll net storage support the baling workflow, while the spring-loaded bale ramp assists with bale release after formation.

Specifications

Tractor Requirements

The Vermeer 504 Pro G4 requires a tractor with a minimum PTO output of 80 hp (59.7 kW). Vermeer recommends 110 PTO hp (82 kW) for the baler. The configured machine uses a 540-rpm PTO driveline.
