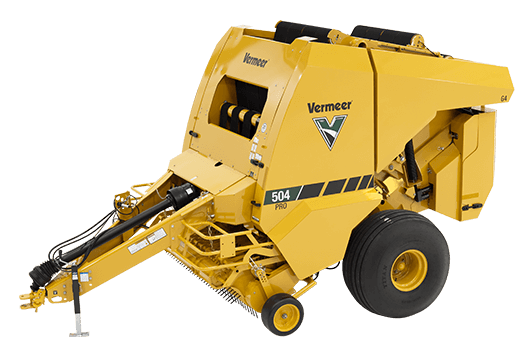

Vermeer 504 Pro G4 Round Baler – 4' x 5', 1000 RPM, Netwrap, Ramp, 17-Knife, Floats [504958161]

The Vermeer 504 Pro G4 Round Baler is a variable-chamber round baler configured for producing 4-ft-wide bales with diameters from 36 to 60 inches. This variant features the optional 1,000-rpm driveline, standard rear-load netwrap system, spring-loaded bale ramp, 17-knife chopping system, and 21.5L-16.1 flotation tires. Designed with versatility, durability, and ease of use in mind, the 504 Pro G4 combines a camless wide pickup, drop floor, Atlas Pro control system, and ISOBUS capability to support efficient forage harvesting and consistent bale production.

Product Highlights

The Vermeer 504 Pro G4 is built to handle a wide range of forage-baling applications while providing control over bale size and density. Its variable-chamber design produces bales measuring 48 inches wide, with selectable bale diameters from 36 to 60 inches. The standard rear-load netwrap system helps secure finished bales, while the spring-loaded bale ramp supports bale discharge after wrapping.

A 17-knife chopping system is included for this configuration. Crop enters through the camless wide pickup, which uses 75 double rubber-mounted teeth across a wide pickup area. The drop floor is designed to assist with plug clearing and improve crop flow. Flotation tires support the machine configuration specified for this product.

Key Features

• Variable-chamber round baler for 4-ft-wide bales
• 48-in (121.9-cm) bale width
• 36–60-in (91–150-cm) bale diameter range
• Optional 1,000-rpm PTO driveline configuration
• Standard rear-load netwrap system
• Spring-loaded bale ramp
• 17-knife chopping system
• 21.5L-16.1 flotation tires
• Camless wide pickup with 75 double rubber-mounted teeth
• Drop floor for plug clearing and improved crop flow
• Atlas Pro control system with 7-in (18-cm) color touchscreen
• Standard ISOBUS capability
• Digital bale-density readings and monitor-controlled density adjustment

Control and Baling Performance

The Atlas Pro control system provides operator access through a 7-inch color touchscreen. Digital bale-density readings and monitor-controlled density adjustment help the operator manage bale formation and maintain production consistency. Standard ISOBUS capability supports integration with compatible tractor control systems.

The pickup measures 73 inches tooth to tooth and 78 inches across the outside flare. Combined with the camless pickup design and 75 double rubber-mounted teeth, this configuration is suited to gathering forage into the baler before chamber formation. The drop floor provides a means to assist with clearing plugs and improving crop flow through the machine.

Tractor Requirements

This Vermeer 504 Pro G4 configuration uses a 1,000-rpm PTO driveline. A tractor with a minimum of 80 hp (59.7 kW) is required, while 110 hp (82 kW) is the recommended PTO power level. Confirm that the tractor is equipped for the specified PTO speed before operation.

Specifications

Product code: 504PRG4623302
