Terrain

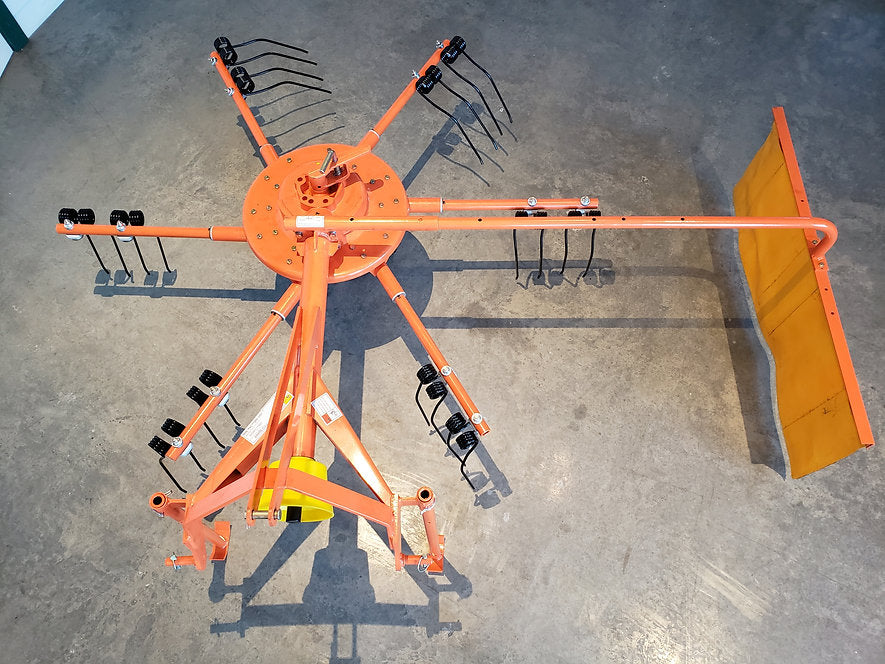

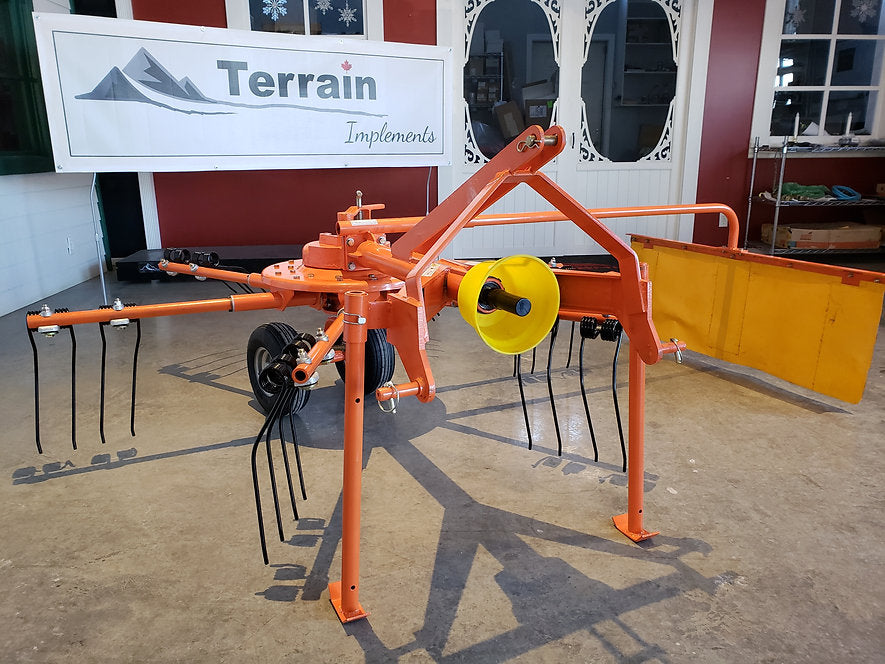

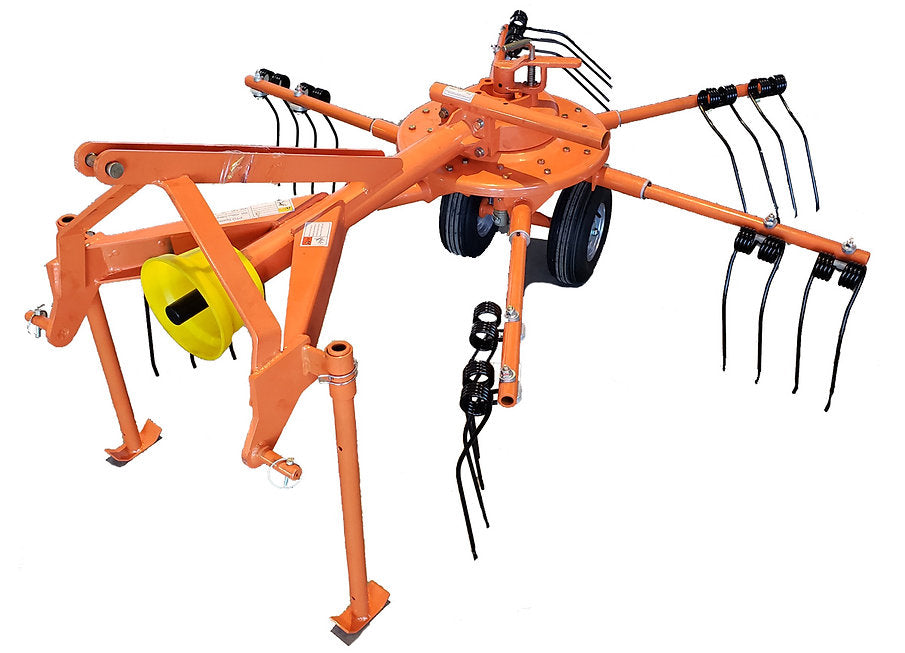

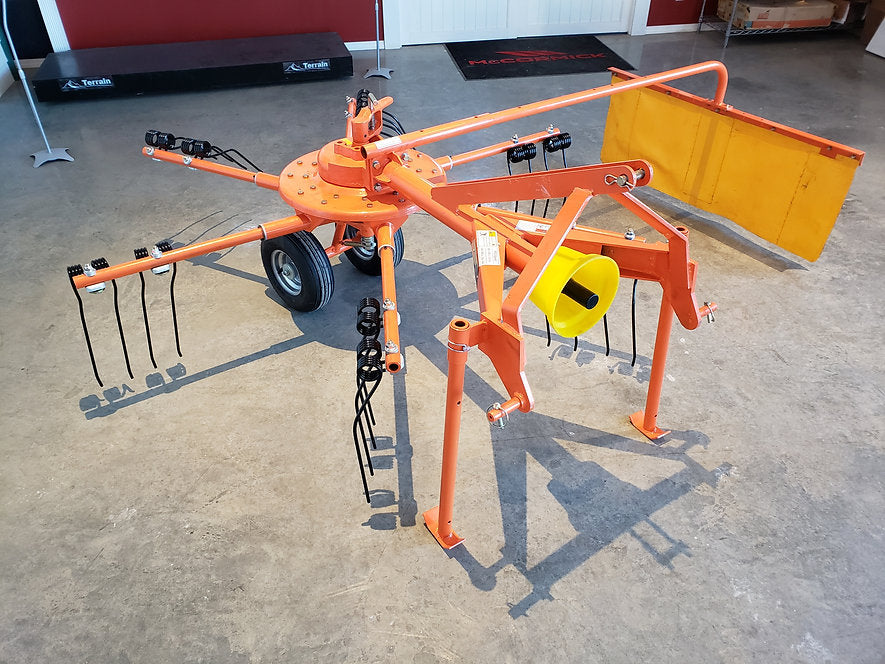

Terrain Tedder / Rotary Rake

SKU RXHR-2500
Starting at $3,25000
Starting at $3,25000

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

As a tedder: it can spread and flip the green-cut materials and windrows, for drying evenly. Spread, swath or windrow, so crops dry down faster. Tailor your tedding operations to a variety of crops and conditions by varying PTO speed or tine pitch (angle). Fixed-tine position provides aggressive tedding and is ideal for use in fresh-cut material or crops where leaf and shatter losses are not a concern. Cam-operated tine position allows the tine bar rollers to follow the cam track to lift and release crop gently and save valuable leaves



As a rake: it can collect the dried cuttings into windrows for the baler to pick up and bale. Precise raking action produces fluffy, uniform windrows that dry evenly. Self-centering wheels provide extra maneuverability by allowing you to make sharp turns and back up easily without lifting the machine.



Main Features

1. Strong, rugged frame provides years of dependable performance.

2. Rotor tilt (pitch) can be adjusted easily with a convenient crank for maximum crop handling.

3. PTO speed is variable, so you can match ground speed to crop and field conditions.

4. Three wheel-height positions let you adjust for different crops, conditions and operations.

5. Vertical tines pick up fewer stones and less debris than horizontal tines for cleaner tedding and raking.

6. Cam track adjustment allows you to quickly tailor tedding/raking action to varying crops and conditions without tools.

7. Convenient parking legs simplifies three-point hitch attachment.

8. One machine, three functions, tedding, raking, and reversing either function.



SPECIFICATIONS


MODELS RXHR-2500
Tractor HP 20-50hp
Raking Width 78"-98"
Tedding Width 72"
Working Speed 4 - 8 km/hr
PTO 540RPM
3 Point Hitch Cat. 1
No. of Teeth 12 (vertical)
Height Adjustment 3 position settings on swivel wheel
Weight (lbs.)

352 lbs.
