WALLENSTEIN

SSQA WOODSPLITTER INV 4.5X36

SKU WX430
Starting at $3,69500
Starting at $3,69500

Add your items to the Cart to begin to build and price your package!


When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

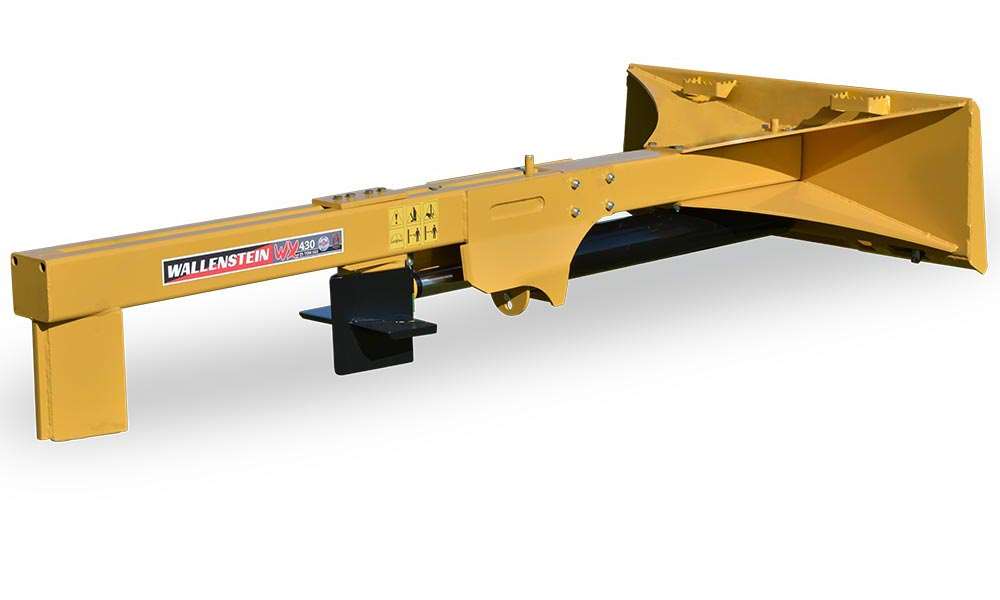

The Wallenstein WX430 25-Ton Inverted Horizontal Skid-Steer Log Splitter is designed for efficient firewood processing with a universal quick-attach mounting system for skid-steer loaders. Its inverted-horizontal configuration allows logs to be handled without lifting them onto a conventional splitter bed, while the 25-ton split force, 36-inch split opening, wide wedge, and direct-pressure splitting design provide a practical solution for demanding wood-splitting work. Hydraulic hoses and couplers are included, and the splitter is designed around a recommended hydraulic flow of 13 gpm (50 lpm).

Efficient Skid-Steer Log Splitting

The WX430 connects to a skid-steer loader equipped with a universal quick-attach / SSQA mounting system. Once mounted, the skid-steer supplies the hydraulic power needed to operate the splitter. The inverted-horizontal layout helps simplify log handling by allowing logs to be processed without loading them onto the bed of a conventional horizontal splitter.

With a 36-inch (91 cm) split opening and a 4.5-inch (11 cm) cylinder, the WX430 is suited to processing substantial logs. Its 10-inch (25 cm) wedge height, wide wedge, built-in block stripper plates, and direct-pressure splitting design support consistent splitting performance. Average splitter cycle time is listed as 11.43 seconds, while the full cycle time is 22.86 seconds; actual cycle times depend on the hydraulic flow of the skid-steer loader.

Key Features

  • 25-ton split force for demanding wood-splitting applications
  • Inverted-horizontal configuration for handling logs without loading them onto a conventional splitter bed
  • 36-inch (91 cm) split opening
  • Skid-steer driven design
  • Universal quick-attach / SSQA mounting system
  • Recommended hydraulic flow of 13 gpm (50 lpm)
  • 4.5-inch (11 cm) cylinder diameter
  • 10-inch (25 cm) wedge height
  • Wide wedge and built-in block stripper plates
  • Direct-pressure splitting design
  • Hydraulic hoses and couplers included
  • Optional W4130 four-way wedge accessory

Skid-Steer Compatibility and Requirements

The Wallenstein WX430 is compatible with a skid-steer loader equipped with a universal quick-attach / SSQA mounting system. The recommended hydraulic flow is 13 gpm (50 lpm). Hydraulic hoses and couplers are included with the splitter. PTO specifications and tractor horsepower requirements do not apply to this skid-steer-driven model.

Specifications

Brand Wallenstein Equipment
Model WX430
Application Skid-steer driven
Product type Skid-steer inverted-horizontal log splitter
Splitting orientation Inverted horizontal
Split force 25 ton
Split opening 36 in (91 cm)
Recommended hydraulic flow 13 gpm (50 lpm)
Average splitter cycle time 11.43 seconds; depends on skid-steer hydraulic flow
Full cycle time 22.86 seconds; depends on skid-steer hydraulic flow
Cylinder diameter 4.5 in (11 cm)
Wedge height 10 in (25 cm)
Mounting system Universal Quick Attach / skid-steer SSQA
Hydraulic hoses and couplers Included
Overall dimensions (L x W x H) 96 x 36 x 22 in (244 x 91 x 56 cm)
Transport width 36 in (91 cm)
Total weight 320 lb (146 kg)
Optional accessory W4130 four-way wedge
