SSQA WOODSPLITTER H-V 4X24,CYL

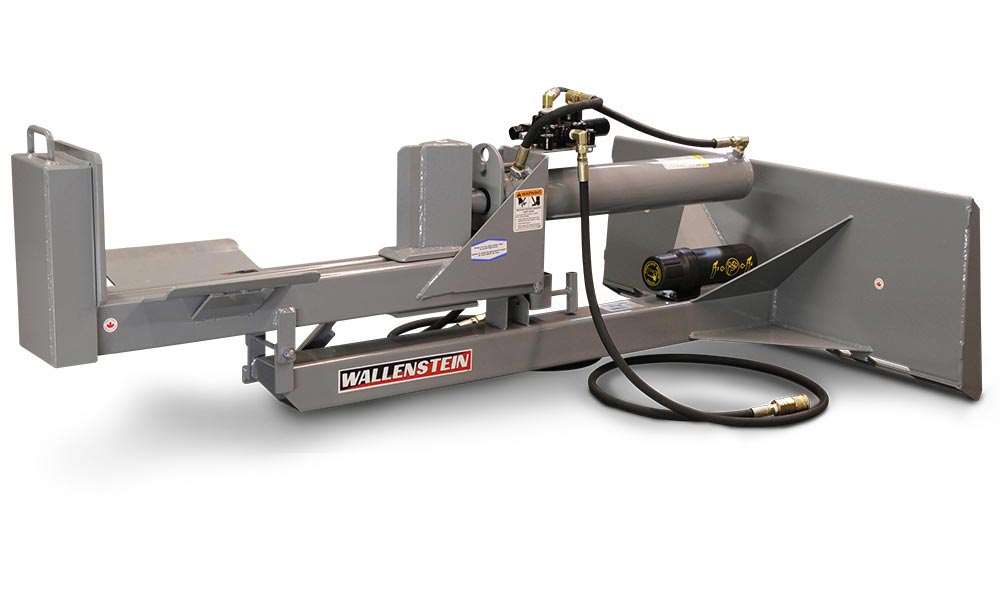

The Wallenstein WX470 20 Ton Skidsteer Log Splitter is a versatile hydraulic wood splitter designed for efficient firewood processing in both horizontal and vertical positions. Its 20-ton split force, wide 9-inch wedge, and direct-pressure design help split logs effectively, while the 24-inch split opening accommodates substantial wood blocks. Built for skidsteer use, the WX470 features a Universal Quick Attach mounting system and includes hydraulic hoses and couplers for connection to the machine’s hydraulic system. It is well suited to firewood preparation, property maintenance, and other applications where mobile, skidsteer-powered log splitting is required.

Efficient Horizontal and Vertical Log Splitting

The WX470 can be operated horizontally or vertically, allowing the splitting position to be matched to the size and handling requirements of the logs. Horizontal operation is suitable for processing logs on the splitter bed, while vertical operation can help reduce the need to lift heavier rounds onto the machine. This flexibility makes the attachment practical for a variety of firewood-splitting tasks.

20-Ton Split Force with Wide Wedge

Wallenstein equips the WX470 with a 20-ton split force and a 4-inch hydraulic cylinder. The wide 9-inch wedge is designed to help the wood block “pop” early in the splitting process, supporting efficient processing. With a 24-inch split opening, the splitter provides capacity for logs up to the stated opening size.

Key Features

• 20-ton hydraulic split force
• Horizontal and vertical operating positions
• 24-inch (61 cm) split opening
• Wide 9-inch (23 cm) wedge
• 4-inch (10 cm) hydraulic cylinder
• Direct-pressure splitting design
• Universal Quick Attach mounting system
• Designed for skidsteer-driven operation
• Hydraulic hoses and couplers included
• Average splitter cycle time of 6.62 seconds, depending on skidsteer hydraulic flow

Skidsteer Requirements and Compatibility

The Wallenstein WX470 is a skidsteer-driven attachment and uses a Universal Quick Attach mounting system. The recommended hydraulic flow is 10 gpm (38 lpm). Actual cycle times depend on the hydraulic flow supplied by the skidsteer. Confirm that the skidsteer is equipped with a compatible Universal Quick Attach system and can provide the recommended hydraulic flow before operation.

Cycle Performance

The manufacturer specifies an average splitter cycle time of 6.62 seconds and a full cycle time of 13.24 seconds. These times depend on the hydraulic flow from the skidsteer, so operating performance may vary with the supplying machine and its hydraulic system.

Specifications
