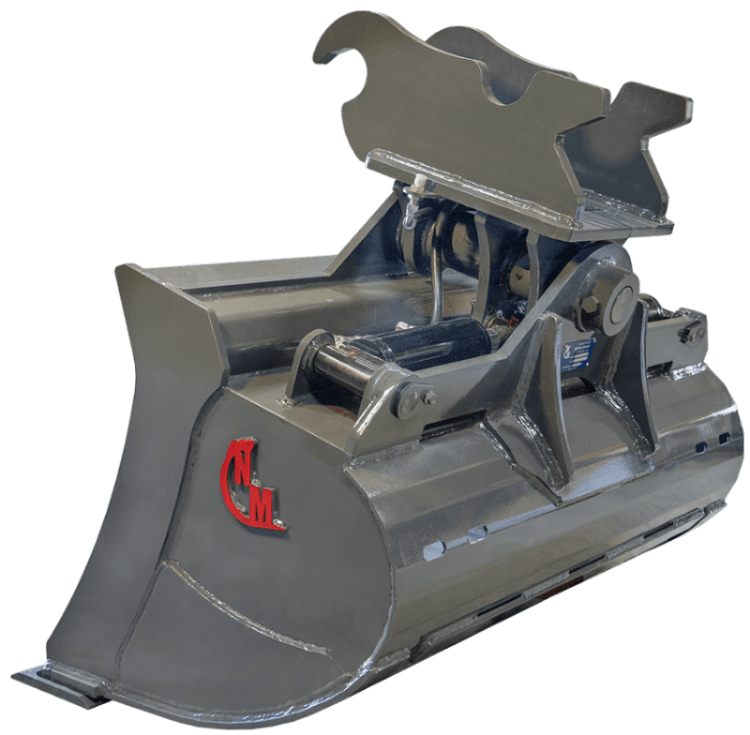

NM Attachments - 54" Class 8 Hydraulic Tilt Ditch Cleaning Bucket - Reversible Bolt-On Edge Included - 90° Tilt, 0.5 cu yd [NM-8HTD-54]

NM Attachments 54" Class 8 Hydraulic Tilt Ditch Cleaning Bucket combines controlled hydraulic positioning with durable structural-steel construction for ditch cleaning and related excavation work on Class 8 excavators. The NM-8HTD-54 provides 90° total tilt rotation—45° to either side—helping position the bucket for angled ditch profiles and slope work without repositioning the carrier as frequently. It features dual hydraulic cylinders, AR400 steel wear components, a 54" working width, 0.5 cu yd capacity, and a reversible bolt-on edge included.

Hydraulic Tilt Ditching Performance

The bucket’s hydraulic tilt function provides a total working range of 90°, with 45° of movement to each side. This allows the operator to adjust the bucket angle for ditch cleaning and other angled excavation tasks while maintaining the excavator’s position. The dual-cylinder design supports the bucket’s hydraulic tilt configuration.

With a 54" working width and 0.5 cu yd capacity, this attachment is configured for Class 8 excavator applications. The reversible bolt-on edge provides an included edge configuration identified for this model in the supplied catalogue description.

Durable Construction and Wear Protection

NM Attachments builds this hydraulic tilt ditching bucket from high-grade structural steel. AR400 steel is used in the bottom wear straps, side wear plates, and side cutters to provide designated wear protection in key contact areas. These components are suited to the abrasive conditions commonly associated with ditching and earthmoving work.

Key Features

• Designed for Class 8 excavators and approximately 8.0 t carriers
• 54" working width
• 0.5 cu yd bucket capacity
• 90° total hydraulic tilt rotation
• 45° tilt to each side
• Dual hydraulic cylinders
• High-grade structural-steel construction
• AR400 steel bottom wear straps
• AR400 steel side wear plates and side cutters
• Reversible bolt-on edge included

Applications

The NM-8HTD-54 is a hydraulic tilt ditch cleaning bucket for Class 8 excavator carriers. Its side-to-side hydraulic adjustment is suited to ditching work where the bucket must follow an angled profile or operate across varying slopes. The 54" width and 0.5 cu yd capacity provide the configuration identified for this model.

Compatibility and Carrier Requirements

This attachment is specified for Excavator Class 8 and approximately 8.0 t carriers. Confirm the carrier’s attachment interface and hydraulic compatibility before purchase or installation. Hydraulic requirements are not specified in the available product information.

Specifications
