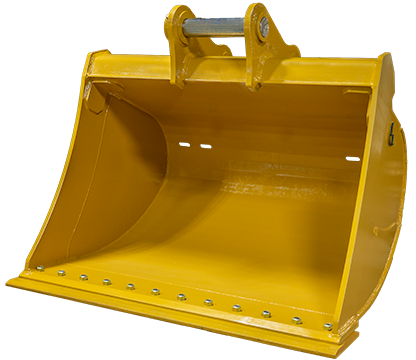

NM Attachments - 36" Class 8 Ditch Cleaning Bucket - Reversible Bolt-On Edge Included - 0.375 cu yd, AR400 Wear Areas [NM-8DC-36]

NM Attachments 36" Class 8 Ditch Cleaning Bucket is a purpose-built excavator attachment for ditching, slope work, grading, back-filling, land clearing, and high-volume handling of light materials. Model 8DC-36 provides a 36-inch working width and a nominal 0.375 cubic yard capacity, making it suitable for excavators in the 14,000–24,000 lb machine-size range. The bucket features AR400 steel in key wear areas and includes a reversible bolt-on cutting edge for practical serviceability during demanding earthmoving and maintenance work.

Built for Ditching and Grading Work

The NM Attachments 8DC-36 is designed for shaping and maintaining ditches, working slopes, grading surfaces, and back-filling material. Its wide ditching-bucket profile supports efficient coverage when handling light materials or carrying out high-volume cleanup and land-clearing tasks. The 36-inch attachment size provides a useful balance between working width and machine compatibility for excavators within the specified Class 8 range.

For durability, the bucket uses high-grade structural steel with AR400 wear areas. These protected areas include the bottom wear straps, side wear plates, and side cutters, helping the attachment withstand contact with abrasive ground and materials during regular ditching and grading operations.

Key Features

• 36-inch working and transport width
• 0.375 cubic yard nominal capacity
• Designed for excavators in the 14,000–24,000 lb machine-size range
• AR400 steel wear areas for the bottom wear straps, side wear plates, and side cutters
• Reversible bolt-on cutting edge included as standard on most ditching buckets
• Standard lifting eye
• Suitable for ditching, slope work, grading, back-filling, land clearing, and high-volume light-material handling

Serviceable Cutting Edge

The reversible bolt-on cutting edge is included with the bucket configuration described for this product. Its bolt-on design supports practical maintenance and allows the cutting edge to be reversed when appropriate, helping make use of both cutting surfaces during the working life of the component.

Specifications

Compatibility and Mounting

This ditching bucket is intended for excavators in the 14,000–24,000 lb machine-size range, according to the 8DC-36 catalogue listing. The attachment mounting and coupler connection are not specified; mounting must therefore be selected to match the excavator and coupler configuration. Confirm the required mounting arrangement before ordering or installation.
