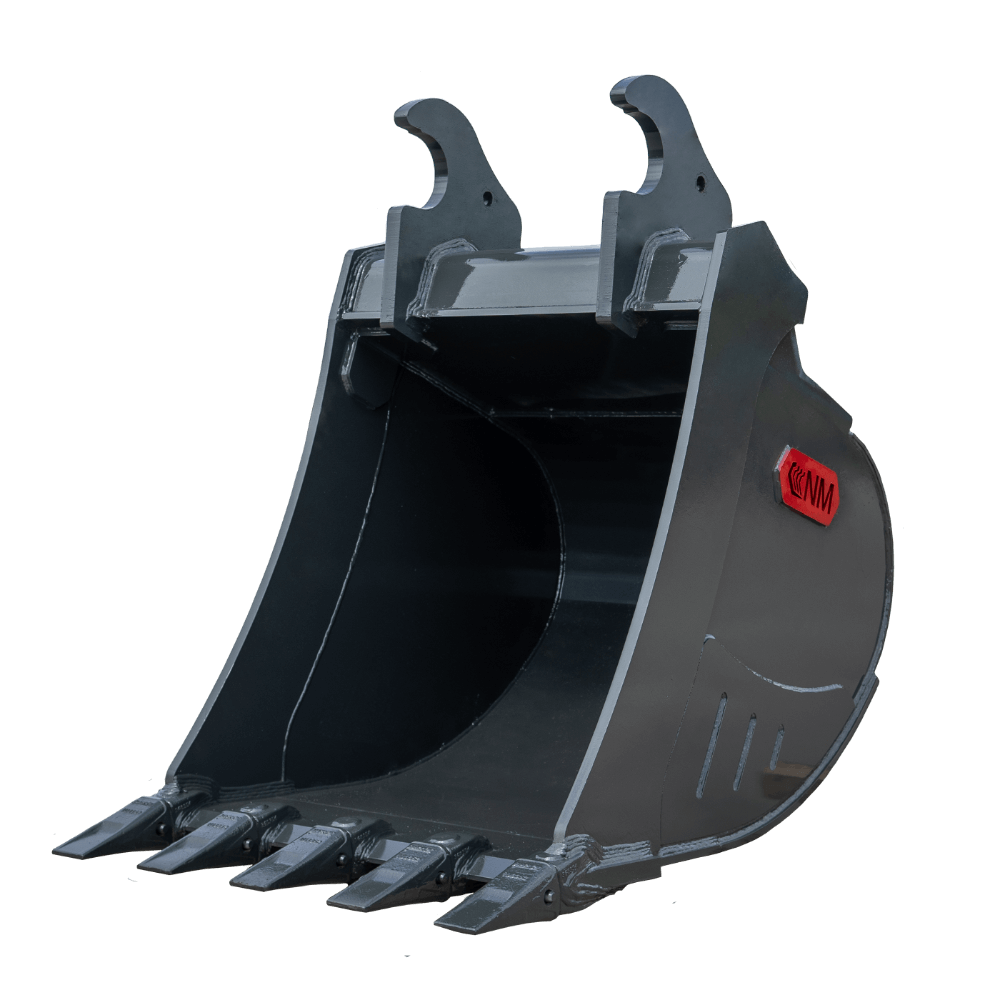

NM Attachments - 36" Class 6 Heavy-Duty Spade-Tooth Bucket - 9 Spade Teeth - 13 cu ft, AR400 Wear Areas [NM-6HD-36S]

NM-Attachments NM-6HD-36S 36-Inch Class 6 Heavy-Duty Spade-Tooth Bucket is a heavy-duty excavator tooth bucket designed for excavators in the approximately 6–7 ton, 12,000–14,000 lb class. With a 36-inch working width, high-grade structural steel construction, and AR400 wear material in key wear areas, it is suited to demanding excavation, trenching, and material-handling work involving sand, gravel, clay, and similar ground conditions. The bucket uses a standard CAT-style tooth configuration and includes a standard C-type lifting hook. The excavator mount must be specified to match the machine’s mount and pin dimensions.

Heavy-Duty Excavation Performance

The 6HD-36 model is built for excavators requiring a robust tooth bucket for general digging and trenching applications. Its 36-inch width provides a broad digging profile for moving material efficiently, while the tooth configuration supports penetration into common excavation materials. The bucket is suitable for gas and water line trenching tasks as well as general construction work involving sand, gravel, and clay.

High-grade structural steel forms the primary bucket construction. AR400 wear material is used in listed high-contact areas, including the bottom wear straps, side wear plates, and side cutters. These wear components are designed to provide added protection in areas exposed to abrasion during digging and loading operations.

Key Features

• 36-inch heavy-duty excavator tooth bucket
• NM Attachments 6HD-36 catalogue model
• Designed for excavators rated approximately 6–7 tons or 12,000–14,000 lb
• High-grade structural steel construction
• AR400 wear material in bottom wear straps, side wear plates, and side cutters
• Standard CAT-style teeth
• Other tooth options are available according to the verified manufacturer information
• Suitable for sand, gravel, clay, and trenching applications
• Standard C-type lifting hook
• Excavator mount must be specified for the machine

Applications

This bucket is intended for construction and excavation work performed with compatible excavators in the recommended machine-size range. Typical uses include trenching for gas and water lines, general site excavation, digging in clay, and handling sand or gravel. The tooth bucket design is appropriate where ground penetration and durable wear protection are important.

Specifications

Compatibility and Mount Requirements

The bucket is intended for excavators rated approximately 6–7 tons, or 12,000–14,000 lb. Exact compatibility depends on the excavator mount and pin dimensions. Confirm the required mount specification before ordering so the bucket can be matched to the excavator.
