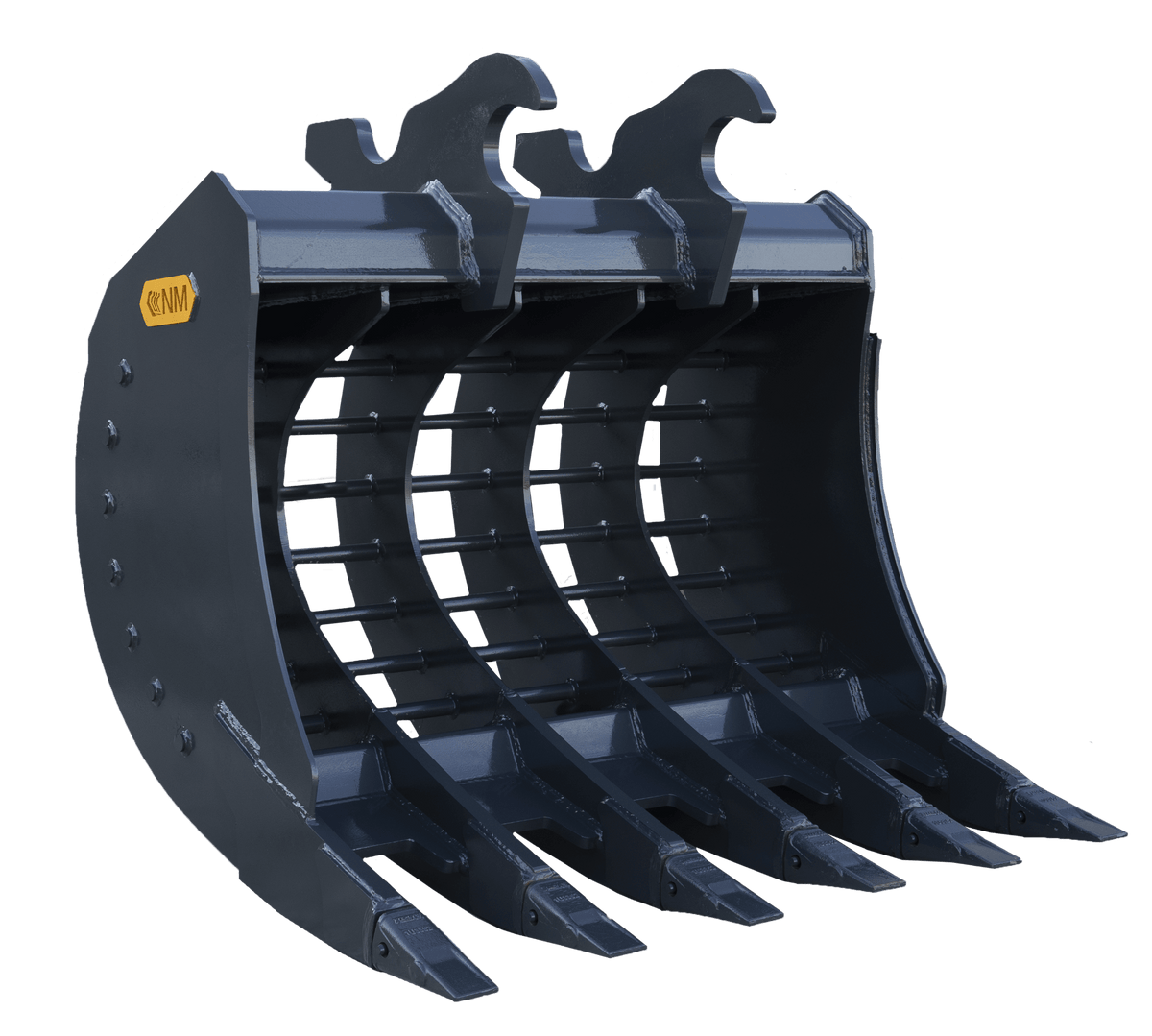

NM Attachments - 36" Class 3 Hybrid Rake - 6 Tines - Root-Rake Design with Sifting Crossbars & Replaceable Teeth [NM-3HR-36]

The NM Attachments 36" Class 3 Hybrid Rake combines a root-rake design with integrated sifting crossbars to help clear roots, limbs, brush, rocks, and other debris while leaving soil behind. Model NM3HR-36 features six tines, partial enclosed sides, strengthened side plates, and replaceable teeth for practical excavator attachment performance in site clearing, landscaping, land reclamation, and debris separation applications. Its 36-inch working width is designed for Class 3 excavator mounts and carriers in the approximately 6,000–10,000 lb range.

Root Rake and Sifting Functionality

The NM Attachments Hybrid Rake is designed to perform more than basic raking. Its root-rake configuration helps engage and gather roots, limbs, brush, and rocks, while the added crossbars provide finer sifting capability. This combination allows loose soil to pass through more readily as larger unwanted material is collected, helping support clearing work where separating debris from soil is important.

Reinforced Construction

Partial enclosed sides help contain collected material during operation, while strengthened side plates provide additional structural support for the attachment. The rake comes standard with replaceable teeth, allowing worn teeth to be replaced without replacing the complete attachment. The six-tine configuration provides a practical balance between material engagement and separation for compatible excavator carriers.

Key Features

• 36-inch Class 3 excavator hybrid rake
• Six-tine configuration
• Root-rake design for clearing roots, limbs, brush, and rocks
• Sifting crossbars for finer material separation
• Partial enclosed sides to help retain collected debris
• Strengthened side plates for added support
• Replaceable teeth included as standard
• Designed to help leave soil behind while removing larger debris
• Suitable for excavator carriers approximately 6,000–10,000 lb (2.7–4.5 t)

Typical Applications

Use the NM3HR-36 for excavator-based clearing and material separation tasks where a conventional bucket or open rake may not provide the required combination of gathering and sifting. The hybrid design is suited to removing roots, brush, limbs, and rocks while allowing soil to fall through the crossbar openings. It can support landscaping, property clearing, site preparation, land reclamation, and general debris-cleanup work within the attachment’s compatible carrier class.

Specifications

Compatibility and Mounting

This attachment is intended for Class 3 excavator mounts and is suitable for the supplied 3.5–4.0 t excavator category, within the stated approximate carrier range of 6,000–10,000 lb (2.7–4.5 t). The exact mounting interface must be specified for the carrier. Confirm the excavator’s mount configuration and attachment requirements before ordering.
