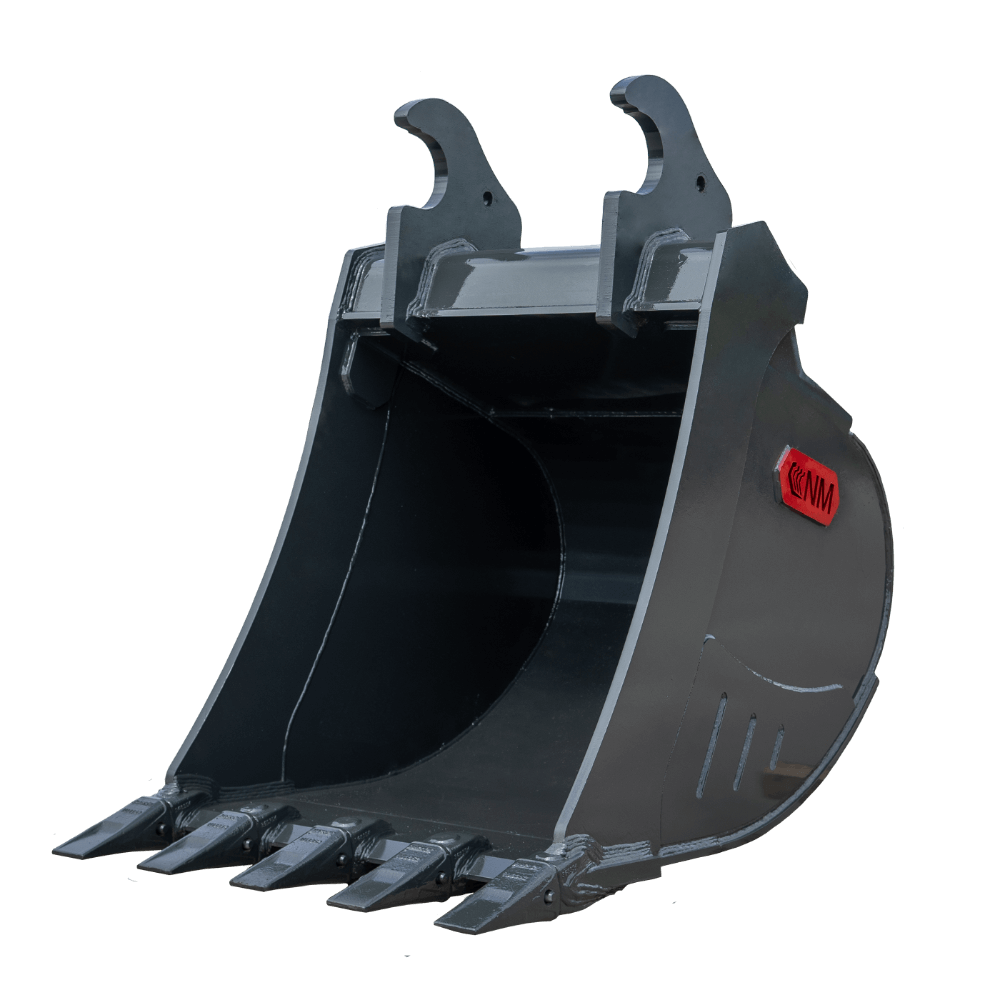

NM Attachments - 30" Class 6 Heavy-Duty Tooth Bucket - 6 CAT-Style Teeth - 10.625 cu ft, AR400 Wear Areas [NM-6HD-30]

The NM Attachments NM-6HD-30 30-inch Class 6 Heavy-Duty Tooth Bucket is designed for excavators in the 6–7 ton class and combines high-grade structural steel construction with AR400 steel in key wear areas. With six standard CAT-style teeth and a 10.625 cu. ft. catalogue capacity, this tooth bucket is suited to demanding excavation work in sand, gravel, clay, and gas or water-line trenching applications. Its reinforced wear components are intended to support durability in abrasive digging and material-handling conditions.

Built for Heavy-Duty Excavation

The NM-6HD-30 is constructed from high-grade structural steel for the main bucket structure. AR400 steel is used in the principal wear areas, including the bottom wear straps, side wear plates, and side cutters. This configuration helps provide durable contact surfaces where the bucket is exposed to repeated digging, abrasion, and contact with the ground or trench walls.

The 30-inch bucket width provides a focused digging profile for excavation and trenching work. The standard CAT-style tooth configuration is designed for general-purpose digging applications, while various tooth options are available within the manufacturer’s tooth-bucket family.

Key Features

• 30-inch bucket width
• Class 6 heavy-duty tooth bucket
• Six standard CAT-style teeth
• 10.625 cu. ft. catalogue capacity
• High-grade structural steel construction
• AR400 steel bottom wear straps
• AR400 steel side wear plates
• AR400 steel side cutters
• Designed for sand, gravel, clay, and gas or water-line trenching
• Various tooth options available

Applications

This excavator tooth bucket is suitable for general excavation and material-handling tasks involving sand, gravel, and clay. Its tooth configuration also makes it appropriate for gas-line and water-line trenching, where a defined digging edge and durable wear components are important. The heavy-duty construction is intended for use in demanding work environments where the bucket may experience repeated contact with abrasive materials.

Specifications

Excavator Compatibility

The NM-6HD-30 is identified for use with excavators in the 6–7 ton class. Exact carrier compatibility is not listed on the manufacturer product page. Confirm that the excavator’s attachment interface and operating specifications are suitable for this bucket before purchase or installation.

Tooth Options

The bucket uses a standard CAT-style tooth configuration, and various tooth options are available from the manufacturer’s tooth-bucket family. Select the tooth option appropriate for the intended excavation material and application.
