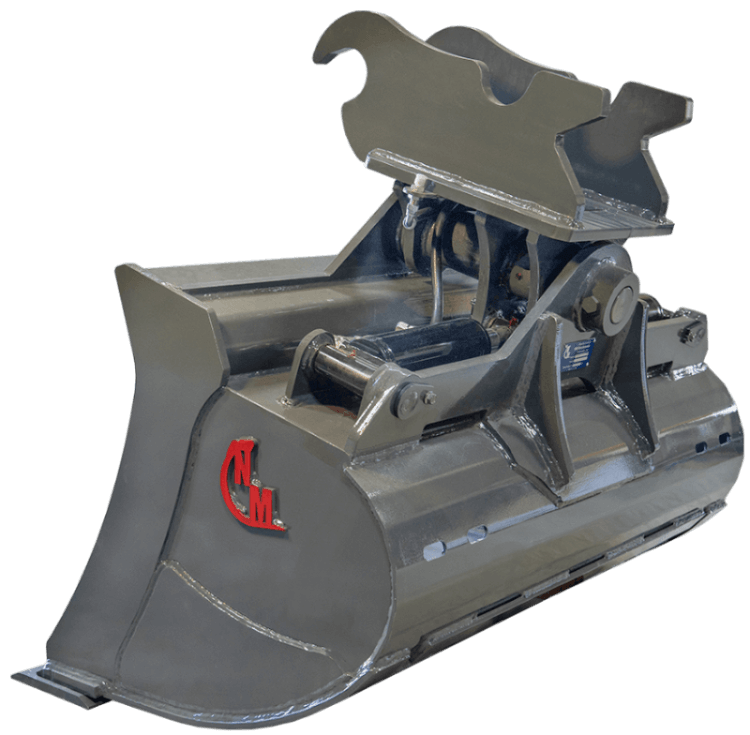

NM Attachments - 30" Class 2 Hydraulic Tilt Ditch Cleaning Bucket - 90° Total Tilt, Dual Cylinders, AR400 Wear Areas, 2.3 cu ft [NM-2HTD-30]

NM Attachments NM-2HTD-30 30" Class 2 Hydraulic Tilt Ditch Cleaning Bucket is designed for controlled ditching, grading, shaping, and drainage work with compatible Class 2 excavator attachment systems. Its hydraulic tilt function provides 45° of movement in each direction for 90° of total rotation, helping operators work across slopes and contours without repeatedly repositioning the excavator. Built from high-grade structural steel and reinforced with AR400 steel in key wear areas, this 30-inch bucket combines precise positioning with durable construction for demanding excavation and ditch-maintenance applications.

Controlled Tilt for Ditching and Grading

The NM-2HTD-30 is a hydraulic tilt ditching bucket with a nominal 30-inch working width and 2.3 cubic-foot capacity. Its 90° total tilt range allows the bucket to rotate 45° to either side, supporting work on angled ditch banks, drainage channels, embankments, and sloped surfaces. This adjustable positioning helps the operator form and maintain consistent grades while reducing the need to reposition the machine for every change in terrain.

The dual-cylinder design supports the bucket’s hydraulic tilt function. By combining hydraulic control with a purpose-built ditching profile, the bucket is suited to applications where accurate bucket positioning and efficient material handling are important.

Heavy-Duty Construction and Wear Protection

NM Attachments builds the bucket from high-grade structural steel for demanding excavator work. Areas exposed to repeated contact and abrasion use AR400 steel, including the bottom wear straps, side wear plates, and side cutters. These reinforced wear areas are intended to provide additional durability where the bucket encounters the ground, ditch walls, and excavated material.

The result is an attachment configured for regular ditch cleaning, grading, shaping, and general excavation tasks where tilt control and wear resistance are required.

Key Features

• Hydraulic tilt ditching bucket for compatible Class 2 excavator attachment systems
• 90° total tilt rotation
• 45° tilt in each direction
• Dual-cylinder design
• 30-inch nominal working width
• 2.3 cubic-foot nominal capacity
• High-grade structural-steel construction
• AR400 steel bottom wear straps
• AR400 steel side wear plates
• AR400 steel side cutters
• Suitable for ditch cleaning, grading, shaping, and drainage work

Specifications

Compatibility

This is the Class 2 excavator attachment variant of the NM Attachments hydraulic tilt ditching bucket family. Confirm that the excavator’s attachment interface and hydraulic system are suitable for this model before ordering or installation. A model-specific machine compatibility table is not published for the NM-2HTD-30.

Applications

• Ditch cleaning
• Drainage-channel shaping
• Sloped-bank excavation
• Grading and contouring
• General ditching and material handling
