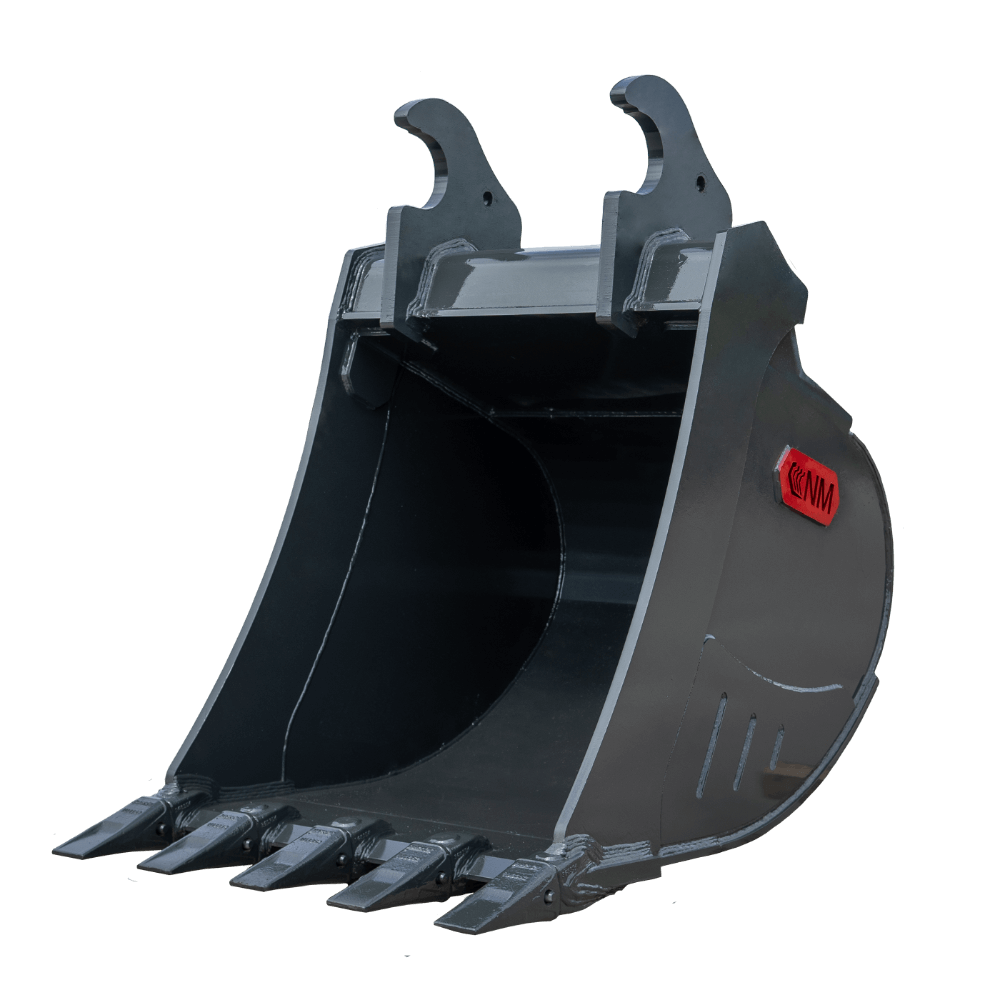

NM Attachments - 24" Class 8 Heavy-Duty Tooth Bucket - 5 CAT-Style Teeth - 0.375 cu yd, AR400 Wear Areas [NM-8HD-24]

The NM Attachments 24" Class 8 Heavy-Duty Tooth Bucket is a rugged excavator attachment designed for demanding digging applications on machines in the 7–12 ton class. Built from high-grade structural steel, it features five CAT-style teeth and AR400 wear areas at the bottom wear straps, side wear plates, and side cutters. The 24-inch working width provides a focused digging profile for excavation work, while the standard C-type lifting hook supports handling and attachment movement. Model NM-8HD-24 is suited to excavators with an approximate operating weight range of 14,000–24,000 lb, subject to confirmation of the machine’s mounting interface and dimensions.

Heavy-Duty Construction for Excavation Work

This tooth bucket is constructed from high-grade structural steel for heavy-duty excavator use. AR400 material is used throughout the specified wear areas, including the bottom wear straps, side wear plates, and side cutters. These reinforced areas are designed for applications where the bucket is exposed to repeated contact with soil, aggregate, and other abrasive materials.

Five CAT-Style Teeth

The bucket is equipped with five CAT-style teeth to support penetration during digging. The toothed configuration is intended for excavation applications where a focused cutting edge and tooth engagement are preferred over a smooth-edge bucket design. Other tooth options are identified as available for the series, although the supplied product configuration is specified with five CAT-style teeth.

Key Features

• 24-inch heavy-duty excavator tooth bucket
• Five CAT-style teeth
• High-grade structural-steel construction
• AR400 wear areas, including bottom wear straps, side wear plates, and side cutters
• Standard C-type lifting hook
• Designed for the 7–12 ton excavator class
• Approximate machine operating-weight range of 14,000–24,000 lb
• Listed model: 8HD-24; catalogue product code: NM-8HD-24

Specifications

Excavator Compatibility

The available product listing identifies this bucket for excavators in the 7–12 ton class, corresponding to an approximate operating-weight range of 14,000–24,000 lb. Exact machine fitment has not been verified. Confirm the excavator’s mounting dimensions, pin configuration, and coupler compatibility before ordering or installation.

Capacity Note

The supplied catalogue record states a capacity of 0.375 cu yd, while the available product listing displays 0.375 cu ft. Because these values conflict, capacity should be confirmed before purchase or quoting for a specific application.
