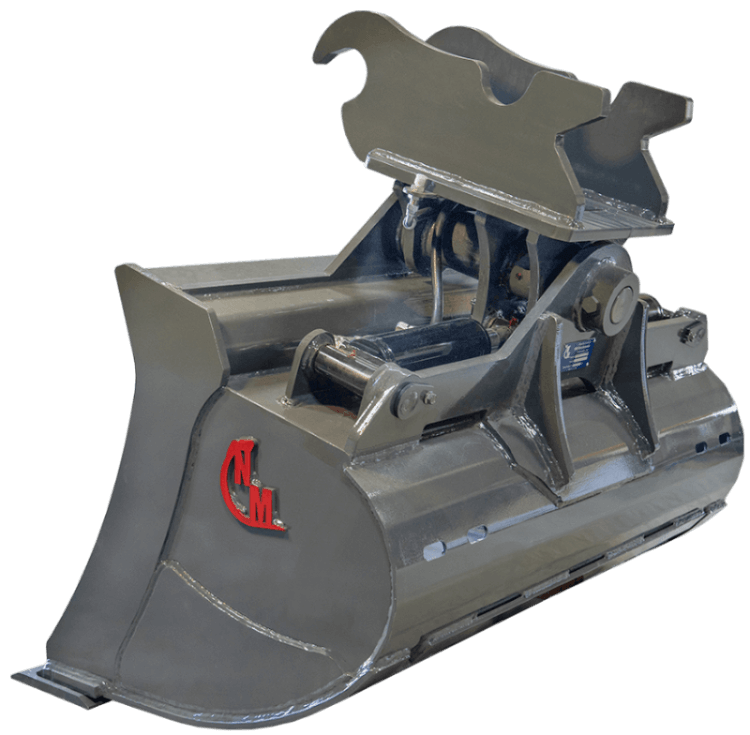

NM Attachments - 24" Class 2 Hydraulic Tilt Ditch Cleaning Bucket - 90° Total Tilt, Dual Cylinders, AR400 Wear Areas [NM-2HTD-24]

The NM Attachments 24" Class 2 Hydraulic Tilt Ditch Cleaning Bucket is designed for excavator operators who need controlled grading, ditch maintenance, and cleanup capability across changing terrain. Model NM2HTD-24 provides 90° total tilt rotation—45° to each side—to help position the bucket for angled ditching and slope work without repositioning the carrier as frequently. Its dual-cylinder hydraulic design supports the tilting function, while AR400 steel is used in key wear areas, including the bottom wear straps, side wear plates, and side cutters. With a 24-inch working width, this attachment is identified for Class 2 excavators and carriers operating in the 3,000–6,000 lb range.

Designed for Ditching and Grading

The NM2HTD-24 is a hydraulic tilt ditching bucket for applications where the cutting and grading angle needs to be adjusted from the excavator. Its 45° tilt in each direction provides a combined 90° range of tilt rotation, supporting work on ditch banks, slopes, and other angled surfaces. The 24-inch working width offers a defined profile for ditch cleaning and related earthmoving tasks.

Operation requires an auxiliary hydraulic circuit on the excavator. The bucket uses a dual-cylinder configuration for its hydraulic tilt function. Hydraulic flow and pressure requirements for this model have not been verified and should be confirmed for the intended excavator before purchase or installation.

Key Features

• 24-inch working width for ditch cleaning and grading applications
• 90° total tilt rotation
• 45° tilt to each side
• Dual hydraulic cylinders
• High-grade structural steel construction
• AR400 steel in key wear areas
• AR400 bottom wear straps
• AR400 side wear plates
• AR400 side cutters
• Excavator-mounted attachment for Class 2 applications

AR400 Wear Protection

AR400 steel is used in the bucket's bottom wear straps, side wear plates, and side cutters. These components are positioned in areas exposed to contact and abrasion during ditching, grading, and cleanup work. The wear-area construction is intended to support durability in demanding excavator attachment applications while retaining the bucket's dedicated ditch-cleaning configuration.

Compatibility and Hydraulic Requirements

The NM2HTD-24 is identified as compatible with Class 2 excavators and carriers with an operating weight of 3,000–6,000 lb. A hydraulic auxiliary circuit is required to operate the tilt function. The exact mounting arrangement is not verified; this is an excavator mount, but whether a particular pin-on or quick-coupler configuration is supplied or compatible should be confirmed before ordering.

Because model-specific hydraulic flow and pressure requirements have not been verified, check the excavator's auxiliary circuit specifications and attachment connection requirements with the dealer or equipment supplier before installation.

Specifications

Before Ordering

Confirm that the excavator is a Class 2 machine within the identified 3,000–6,000 lb carrier operating-weight range and has a suitable auxiliary hydraulic circuit. Verify the required mounting connection, as the exact pin-on or quick-coupler configuration has not been specified. Model-specific attachment weight, capacity, hydraulic flow, hydraulic pressure, and mounting dimensions have not been verified.
