NM Attachments - 24" Class 2 Ditch Cleaning Bucket - Standard Capacity - 2 cu ft, AR400 Wear Areas [NM-2DC-24]

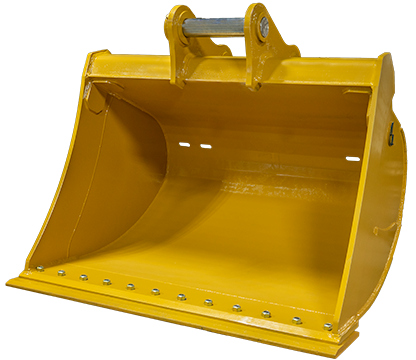

NM Attachments NM-2DC-24 24" Class 2 Ditch Cleaning Bucket is a standard-capacity excavator bucket designed for slope work, ditching, grading, backfilling, land clearing, and high-volume handling of light materials. With a 24-inch working width and approximately 2 cubic feet of capacity, it provides a practical profile for maintaining drainage channels, shaping banks, and carrying out general earthmoving tasks on compatible 1.7 t excavators. Its high-grade structural-steel construction is reinforced in key wear areas with AR400 steel, while the reversible bolt-on cutting edge and standard lifting eye support ongoing maintenance and routine attachment handling.

Built for Ditching and Slope Work

The NM-2DC-24 is a ditching bucket with a wide 24-inch working profile suited to shaping, cleaning, and maintaining ditches and sloped ground. Its standard-capacity 2 cu ft configuration supports material handling during grading, backfilling, land clearing, and other light-material applications where a broad working width is useful.

The bucket is constructed from high-grade structural steel for demanding attachment work. AR400 steel is used in the bottom wear straps, side wear plates, and side cutters to provide reinforced wear areas in locations exposed to contact with the ground and handled material.

Key Features

• 24-inch working width for ditch cleaning, grading, and slope work
• Class 2 configuration
• Standard capacity of approximately 2 cu ft
• Designed for slope work, ditching, grading, backfilling, and land clearing
• Suitable for high-volume handling of light materials
• High-grade structural-steel construction
• AR400 steel bottom wear straps
• AR400 steel side wear plates and side cutters
• Reversible bolt-on cutting edge
• Standard lifting eye

Wear Protection and Serviceability

AR400 steel wear components are incorporated into the bucket’s bottom wear straps, side wear plates, and side cutters. These reinforced areas are intended to help protect the bucket in frequently contacted locations. The reversible bolt-on cutting edge provides a replaceable and reversible edge configuration, supporting practical maintenance over the working life of the attachment.

Applications

Use the NM-2DC-24 for a range of excavator tasks where a ditching bucket’s wider profile and standard capacity are appropriate. Supported applications include ditch cleaning, slope work, grading, backfilling, land clearing, and high-volume light-material handling.

Specifications

Compatibility

The NM-2DC-24 is specified for compatibility with 1.7 t excavators. Confirm that the excavator and attachment connection are suitable for this Class 2 bucket before use.
