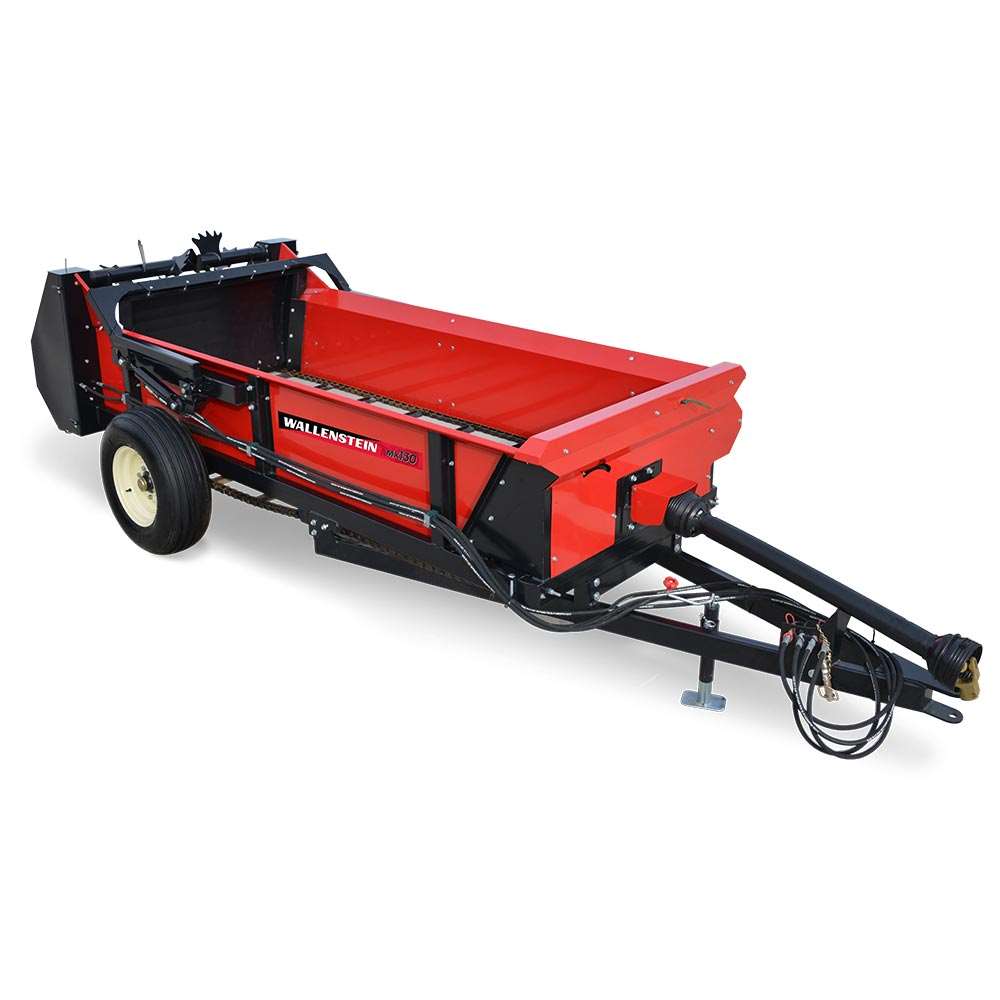

MX130P - PTO POWERED MANURE SPREADER

The Wallenstein MX130P PTO-Powered Manure Spreader is a towable, self-contained manure spreader designed for efficient material handling and fine, uniform application. With a heaped capacity of 130 bushels (162.5 cubic feet), it uses tractor PTO power to drive the spreading system and is suited to tractors with engines rated from 45 to 75 hp. Its corrosion-resistant Cor-Ten weathering steel box, rustproof tongue-and-groove poly floor, chain-and-sprocket apron drive, and 10 beater paddles provide a durable configuration for agricultural manure-spreading applications.

Efficient PTO-Powered Spreading

The MX130P efficiently transmits your tractor’s power through its PTO drive system. A three-speed control helps manage operation, while beater speed control and a clean-out function support practical day-to-day use. The chain-and-sprocket apron drive moves material through the spreader, and the 10 beater paddles help break up and distribute the load during application.

Durable Construction

The spreader box is made from corrosion-resistant Cor-Ten weathering steel and is powder coated for a durable finish. A rustproof tongue-and-groove poly floor provides a long-lasting floor surface, while the one-piece welded bed frame contributes to the overall structure. Heavy-duty bearings support the drive system, and the hydraulic hose keeper helps keep hydraulic hoses managed during operation.

Key Features

• 130-bushel (162.5 cu. ft.) heaped capacity
• PTO-driven operation for tractors in the 45–75 hp engine range
• Three-speed control
• Beater speed control and clean-out function
• Chain-and-sprocket apron drive system
• Corrosion-resistant Cor-Ten weathering steel, powder-coated box
• Rustproof tongue-and-groove poly floor
• 10 beater paddles
• Replaceable bottom-feeder paddles
• Heavy-duty bearings
• One-piece welded bed frame
• Hydraulic hose keeper
• 11L-15SL tires

Tractor Requirements

The Wallenstein MX130P is compatible with a PTO-driven tractor with engine power from 45 to 75 hp. The manufacturer specifies PTO as the drive system. A PTO rpm requirement is not specified.

Specifications

Transport and Handling

As a towable manure spreader, the MX130P has overall dimensions of 214 × 79 × 42 inches (544 × 201 × 107 cm) and an overall transport width of 79 inches (201 cm). The total weight is 2,180 lb (989 kg), with a tongue weight of 330 lb (150 kg). Confirm that the towing tractor and operating area can accommodate the spreader’s dimensions and weight before use.
