Description

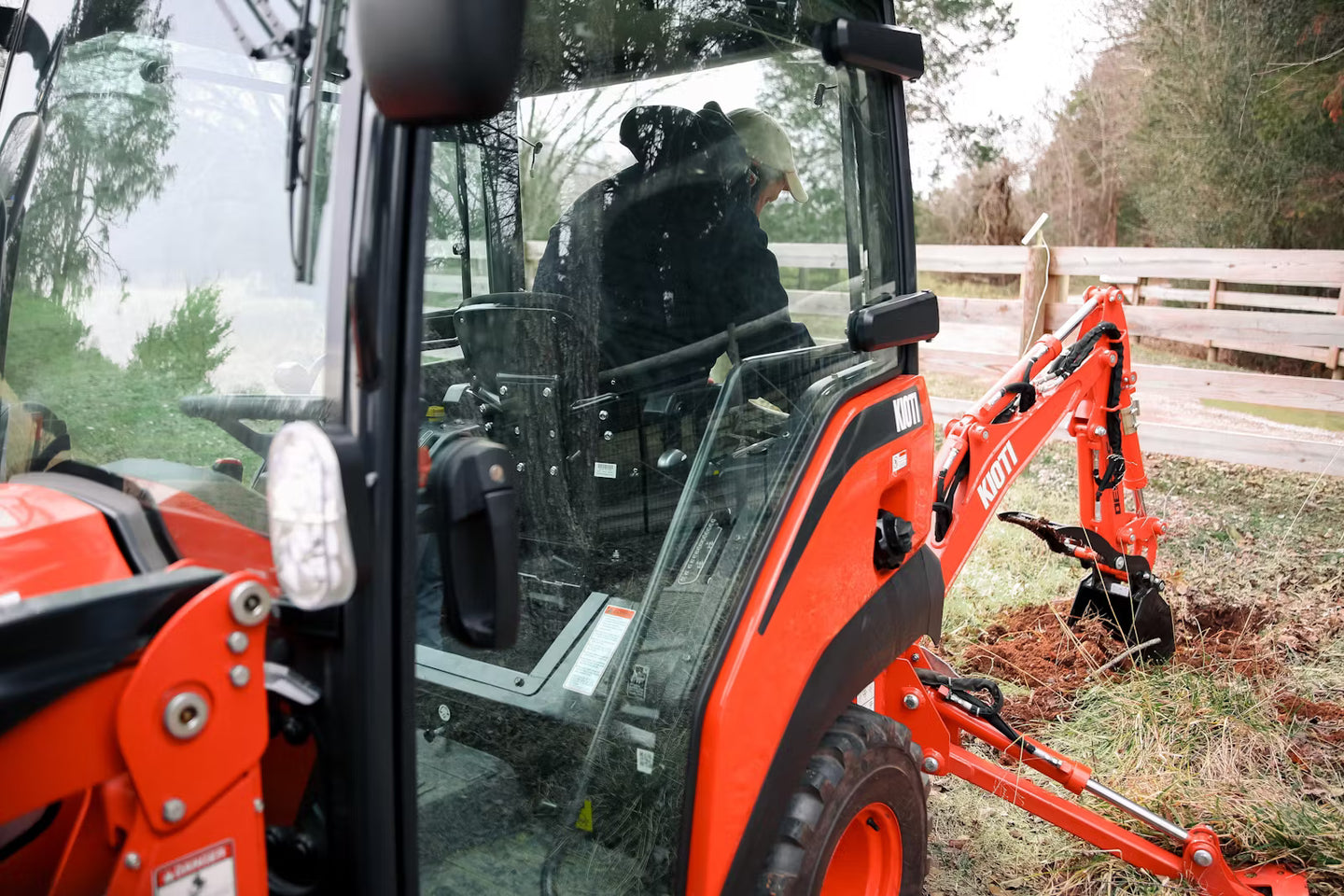

KIOTI SB2530 Backhoe

The KIOTI SB2530 Backhoe is the high-performance excavation attachment specifically engineered to integrate seamlessly with the powerful KIOTI CS30 Series Sub-Compact Tractors (including the CS2530). Designed for property owners and professionals needing serious digging capability, the SB2530 is ready to handle trenching, foundation work, and aggressive digging projects with ease and stability.

This backhoe is built with a heavy-duty frame and hydraulic system to deliver exceptional digging force and precise control, transforming your tractor into a compact excavation workhorse.

Powerful Digging Performance

Deep Digging Depth: Achieves a maximum digging depth (two-foot flat bottom) of 72.4 inches (1,839 mm). This depth is ideal for installing utility lines, drain tiles, and handling demanding landscaping tasks.
Extended Reach: Features a generous reach of 105 inches (2,667 mm) from the centerline of the swing pivot, allowing the operator to maximize digging area before having to reposition the tractor.
High Digging Force: Delivers a substantial Bucket Digging Force of 2,105 lbs (955 kg) and a Dipperstick Digging Force of 1,184 lbs (537 kg), providing the power needed to break through compacted soil, clay, and small root systems.
Wide Swing Arc: Offers a 150° Swing Arc, giving the operator great flexibility when positioning spoil piles and backfilling trenches.

Durability and Control

Sub-Frame Mounting: Utilizes a rugged, dedicated four-point sub-frame system that bolts securely to the tractor's chassis. This mounting method distributes heavy digging forces across the entire tractor for maximum stability and structural integrity.
Responsive Two-Lever Control: Equipped with two-lever hydraulic controls known for their responsive and exceptional feathering characteristics, allowing the operator to execute smooth, precise, and simultaneous movements of the boom, stick, and bucket.
Hydraulic Stabilizers: Features heavy-duty, independently controlled hydraulic stabilizers that ensure a wide, rock-solid stance of 78 inches (1,981 mm) when lowered, providing safety and unwavering stability during aggressive digging.
Quick-Detach Design: The entire backhoe assembly (minus the mounting frame) is designed to quick-detach from the tractor, enabling fast and easy transitions to rear 3-point hitch applications.

Key Specifications

Feature	Detail
Model	SB2530 (Backhoe)
Compatibility	KIOTI CS30 Series Sub-Compact Tractors
Digging Depth (2 ft flat)	72.4 inches (1,839 mm)
Reach (from Pivot)	105 inches (2,667 mm)
Bucket Digging Force	2,105 lbs (955 kg)
Swing Arc	150°
Stabilizer Spread (Down)	78 inches (1,981 mm)
Control System	Two-Lever Hydraulic
Weight (Approx.)	613 lbs (278 kg) (Less Bucket)

The KIOTI SB2530 Backhoe is the uncompromising, factory-matched implement for the CS30 Series, providing exceptional digging depth, force, and professional stability for all your excavation demands.
