HLA Attachments - Three-Prong Bale Spear with Adjustable Guard - 49" Tine with Adjustable. Guard Posts (44" Usable Length) - 6,000 lb Capacity [LA-TE55049BO500]

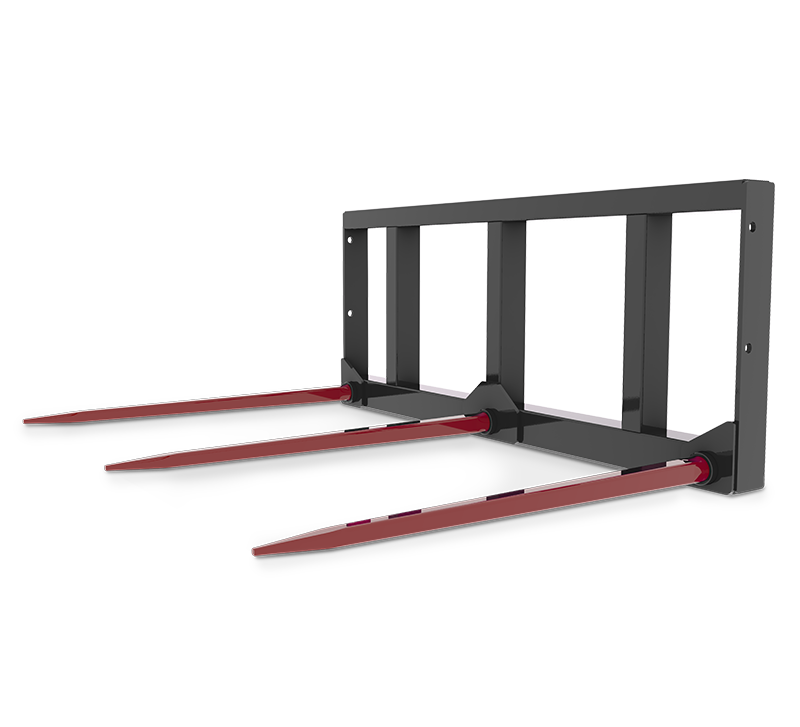

HLA Attachments TE55049BO500 Three-Prong Bale Spear with Adjustable Guard is a loader-mounted bale-handling attachment designed for moving large square bales and managing stacks up to three bales high. It combines three 49-inch Kverneland tines with an adjustable-height guard frame, providing dependable bale support across a 44-inch usable tine length. Rated for 6,000 lb at a 24-inch load center, this model is configured with the BO500 skid-steer-style quick-attach interface for use with compatible loader carriers.

Built for Large Square Bale Handling

The TE55049BO500 uses three tines spaced 23 inches apart to engage and support large square bales. Each Kverneland tine measures 49 inches long and provides 44 inches of usable length. This three-prong arrangement distributes support across the bale while providing the capacity required for demanding material-handling applications.

The attachment has a 56-inch-wide frame and an adjustable guard that extends from a retracted height of 50 inches to an extended height of 84 inches. The adjustable guard supports safer handling when large square bales are stacked up to three high, making the spear suitable for loading, unloading, repositioning, and stacking operations.

Adjustable Guard and Storage Protection

The high frame and adjustable guard posts provide added support behind the load. Operators can adjust the frame height to suit large square bale stacking tasks, with an available height range of 50 to 84 inches. This is particularly useful when handling elevated stacks where additional bale support is needed.

A safety foot provides rollover protection while the attachment is stored. This helps keep the bale spear supported when it is disconnected from the loader carrier, providing a practical storage feature for equipment yards, barns, and bale-handling areas.

Key Features

• Loader-mounted three-prong bale spear for handling large square bales
• Rated capacity of 6,000 lb at a 24-inch load center
• Three 49-inch Kverneland tines
• 44-inch usable tine length
• Tines spaced 23 inches apart
• 50-inch-high frame with adjustable guard posts
• Guard extends to an overall height of 84 inches
• Supports handling of large square bales stacked up to three high
• Safety foot provides rollover protection while the attachment is stored
• 56-inch frame width
• BO500 skid-steer-style quick-attach mounting interface
• Approximate attachment weight of 365 lb

Compatibility

The HLA Attachments TE55049BO500 is configured with the BO500 skid-steer-style quick-attach interface. It is compatible with loader carriers that use this mounting interface. Confirm that the loader carrier has the correct BO500 skid-steer-style quick-attach connection and is suitable for the attachment weight, intended bale load, and 24-inch rated load center before use.

Specifications
