HLA Attachments - Three-Prong Bale Spear with Adjustable Guard - 32" Tine with Adjustable. Guard Posts (27" Usable Length) - 6,000 lb Capacity [LA-TE55032BO500]

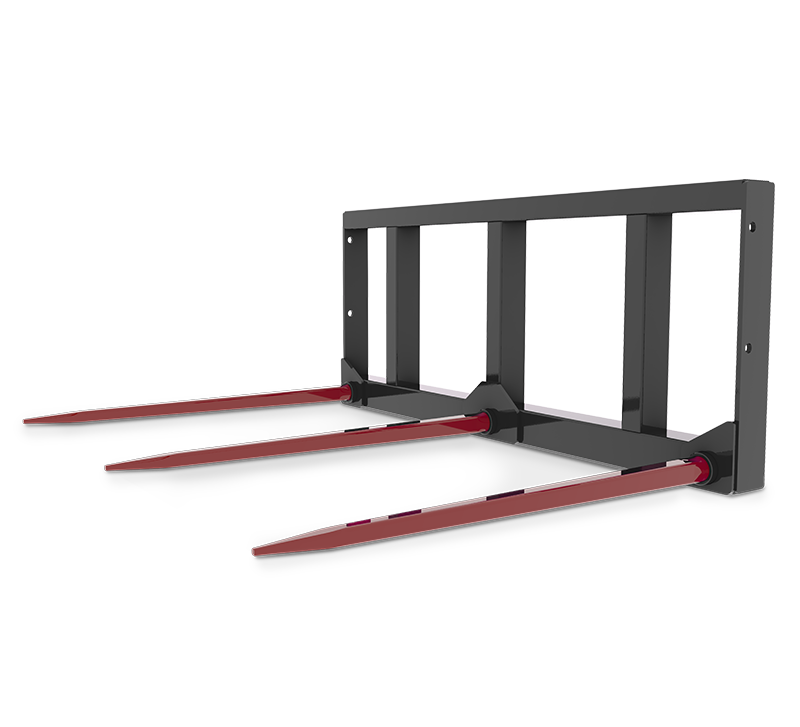

HLA Attachments TE55032 Three-Prong Bale Spear with Adjustable Guard and BO500 Carrier is a loader-mounted attachment designed for handling large square bales. Its three 32-inch Kverneland tines provide 27 inches of usable length and are positioned at 23-inch spacing for stable bale engagement. An adjustable guard extends from 50 to 84 inches high, supporting the handling of large square bales stacked up to three high. Rated for 6,000 lb at a 24-inch load center, this configuration combines substantial capacity with a 56-inch-wide frame and a BO500 New Holland agricultural-loader quick-attach interface.

Three-Prong Bale Handling

The TE55032 uses three Kverneland tines rather than a single central spear. Each tine measures 32 inches long, with 27 inches of usable tine length. The tines are spaced 23 inches apart across the frame, providing three points of engagement for large square bales.

The spear has a rated capacity of 6,000 lb measured at a 24-inch load center. This load-center rating is an important part of the attachment’s capacity specification and should be considered alongside the capabilities of the loader and carrier being used.

Adjustable Guard for Stacked Bales

An adjustable guard is built into the attachment for handling large square bales stacked up to three high. The guard measures 50 inches high when retracted and extends to 84 inches high. This adjustable design allows the guard height to be configured for different bale-handling situations while retaining a more compact retracted profile when full extension is not required.

A safety foot provides rollover protection while the bale spear is stored. The complete attachment weighs approximately 365 lb, giving operators a clear attachment-weight figure to account for when matching it to a compatible loader.

Key Features

• Loader-mounted three-prong spear for large square bales
• Three 32-inch Kverneland tines
• 27 inches of usable tine length
• 23-inch spacing between tines
• 6,000 lb rated capacity at a 24-inch load center
• Adjustable guard for handling large square bales stacked up to three high
• Guard retracts to 50 inches and extends to 84 inches high
• 56-inch-wide frame
• Safety foot for rollover protection while stored
• BO500 New Holland agricultural-loader quick-attach carrier
• Approximate attachment weight of 365 lb

Compatibility

This TE55032 bale spear is configured with the BO500 New Holland agricultural-loader quick-attach carrier. Verified compatible quick-attach systems include:

• New Holland 16LA quick attach
• New Holland 17LA quick attach
• New Holland 18LA quick attach
• New Holland 32LA quick attach
• New Holland 33LA quick attach
• New Holland 46LB quick attach
• New Holland 52LA quick attach
• New Holland 52LB quick attach
• New Holland 52LC quick attach
• New Holland 240TL quick attach
• New Holland 250TL skid-steer quick attach
• New Holland 260TL skid-steer quick attach
• New Holland 270TL skid-steer quick attach

Specifications
