HLA Attachments - Three-Prong Bale Spear - 49" Tine (44" Usable Length) - 5,000 lb Capacity - Hay and Bale Handling [LA-TE5049BO500]

SKU LA-TE5049BO500
Starting at $1,11500
Starting at $1,11500

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

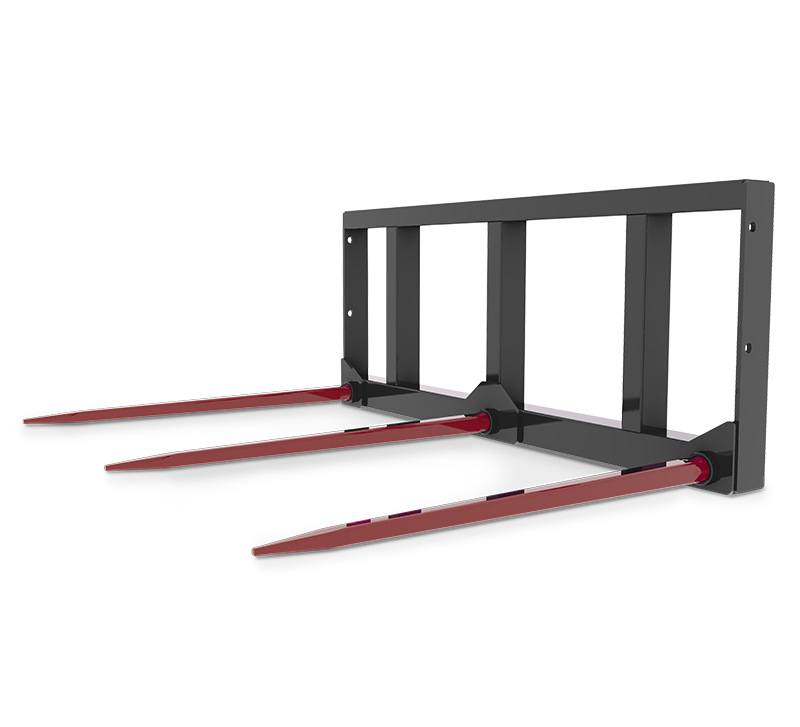

HLA Attachments TE5049BO500 Three-Prong Bale Spear is a heavy-duty, loader-mounted attachment designed for handling large 4 ft × 4 ft × 8 ft square bales. Its three 49-inch Kverneland tines provide 44 inches of usable length for secure bale engagement, while the 50-inch-wide frame supports stable handling. Rated for 5,000 lb at a 24-inch load center, this configuration includes a BO500 skid-steer quick-attach mount for use with compatible loaders.

Heavy-Duty Square-Bale Handling

The TE5049BO500 is built specifically for moving large square bales. Three main tines are spaced 23 inches apart across the frame, providing multiple points of engagement with the bale. This three-prong design helps support controlled handling during routine hay and bale-moving work.

Each Kverneland tine measures 49 inches long, with 44 inches of usable length. The attachment has a rated capacity of 5,000 lb measured at a 24-inch load center. Operators must account for the attachment’s capacity, load-center rating, and the lifting limits of the carrier when handling bales.

Skid-Steer Quick-Attach Configuration

This model uses HLA Attachments’ BO500 mounting configuration, which is a skid-steer quick-attach mount. It is intended for compatible skid-steer-style loader interfaces, allowing the bale spear to be connected as a loader-mounted hay-handling attachment.

Key Features

  • Loader-mounted three-prong spear for handling large square bales
  • Designed for large 4 ft × 4 ft × 8 ft square bales
  • Three 49-inch Kverneland tines
  • 44 inches of usable tine length
  • Main tines spaced 23 inches apart
  • 5,000 lb rated capacity at a 24-inch load center
  • 50-inch-wide frame
  • BO500 skid-steer quick-attach mounting configuration
  • Approximate attachment weight of 210 lb

Compatibility

The TE5049BO500 is equipped with a BO500 skid-steer quick-attach mount. Confirm that the carrier has a compatible skid-steer quick-attach interface and adequate operating capacity for the attachment, bale weight, and specified load center before use.

Operating Restriction

This bale spear is designed for handling one large square bale at a time. It is not approved for carrying two bales stacked vertically. Do not use the attachment to transport two bales stacked on top of one another.

Specifications

Brand HLA Attachments
Configured Model / SKU TE5049BO500
Catalogue Product Code LA-TE5049BO500
Base Attachment Part Number TE5049
Product Type Loader-mounted three-prong square-bale spear
Mounting Configuration Code BO500
Mount Type Skid-steer quick-attach mount
Number of Main Tines 3
Tine Manufacturer / Type Kverneland
Tine Length 49 in.
Usable Tine Length 44 in.
Tine Spacing 23 in.
Rated Capacity 5,000 lb at a 24 in. load center
Frame Width 50 in.
Weight Approximately 210 lb
Intended Bale Size Large 4 ft × 4 ft × 8 ft square bales
Operating Restriction Not to be used for carrying two bales stacked on top of each other
